Industry-Specific Cleanroom Equipment

Pharmaceutical Pass-Through Autoclave

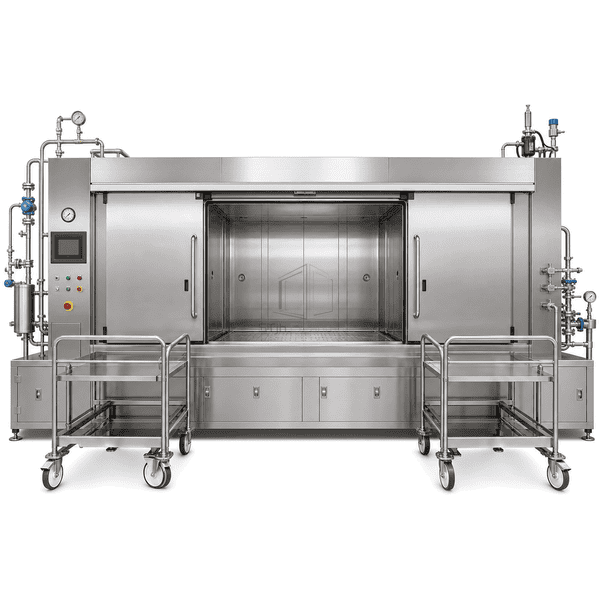

A double-door cleanroom steam sterilizer that transfers processed loads between segregated areas through an interlocked 316L stainless chamber.

Interlocked Double Doors
316L Pressure Chamber
Clean-Steam Sterilization
Trolley Loading System

Request a Quote Browse Products

Product Introduction

The pharmaceutical pass-through autoclave mounts between segregated rooms so loads enter from one side and exit from the other only after the completed sterilization cycle. A jacketed 316L stainless chamber, vacuum-assisted air removal and clean-steam distribution support porous, wrapped or component loads. Door interlocks, loading rails and dedicated trolleys maintain separation and safe material movement across the wall boundary.

Key Features

Opposing interlocked doors prevent an unsterilized load path through the cleanroom boundary.

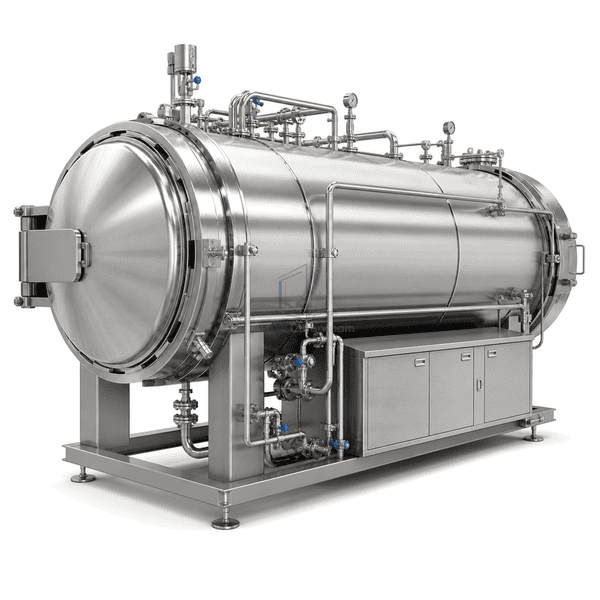

Jacketed 316L chamber and vacuum system support controlled steam penetration and drying.

Anti-tip rails and dedicated trolleys guide heavy loads through the chamber.

PLC control records cycle temperature, pressure and phase status for operational review.

Customer Product Concerns

Materials must cross room boundaries without bypassing sterilization or permitting both sides of the pressure chamber to open together.

Manual transfer can reconnect dirty and clean sides.Door interlocks release the discharge side only after the configured cycle completes.

Trapped air prevents uniform steam contact in porous loads.Vacuum-assisted air removal and controlled steam pulses improve chamber penetration.

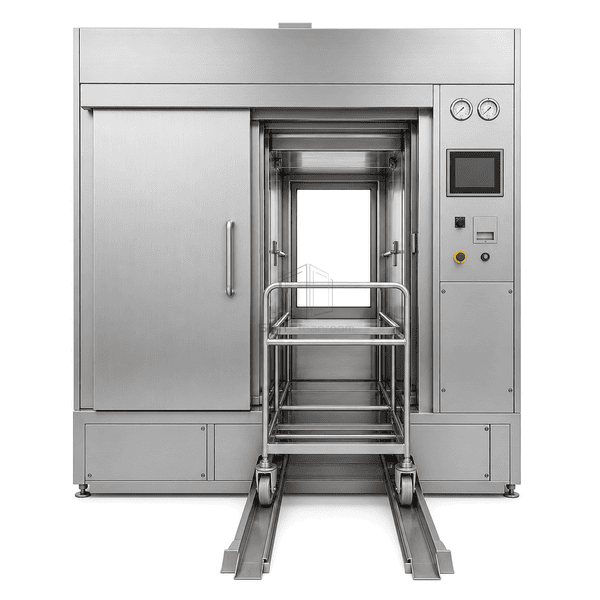

Heavy trolleys are difficult to align with the chamber.Fixed anti-tip loading rails provide a repeatable guided path through the sterilizer.

Cycle deviations are hard to investigate without recorded data.PLC monitoring records pressure, temperature and phase progression for each load.

Typical Applications

Pharmaceutical component sterilizationCleanroom tool and garment loadsBiotechnology production materialsHigh-containment pass-through processing

Technical Parameters

Typical construction values for a pharmaceutical pass-through steam autoclave are listed below.

Core Material	316L stainless steel pressure chamber with stainless loading rails and silicone door seals
Panel Thickness	60-120 mm insulated external panels
Effective Width	600-1500 mm clear chamber width
Maximum Length	Up to 3000 mm usable chamber length
Steel Facing Thickness	1.2-2.0 mm external stainless cladding
Core Density	80-140 kg/m³ for high-temperature insulated cladding
Thermal Conductivity	0.040-0.060 W/(m·K) for insulated cladding
Surface Finish	Polished 316L chamber with satin stainless exterior panels

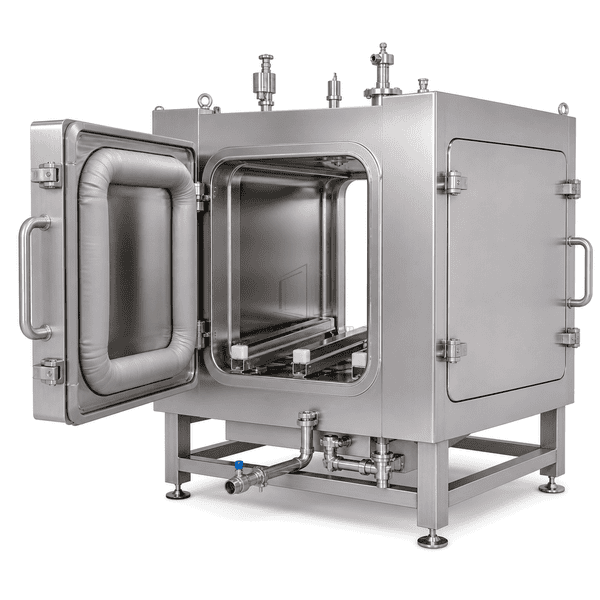

Joint Type	Welded jacketed pressure chamber with interlocked gasketed doors, sanitary steam piping and guided trolley rails
Customization	Available based on the intended application and operating environment.

Available Options

Rectangular or cylindrical chamberHinged or powered sliding doorsClean-steam generator and vacuum dryingEffluent retention and filtered venting
