Modular Sampling Room

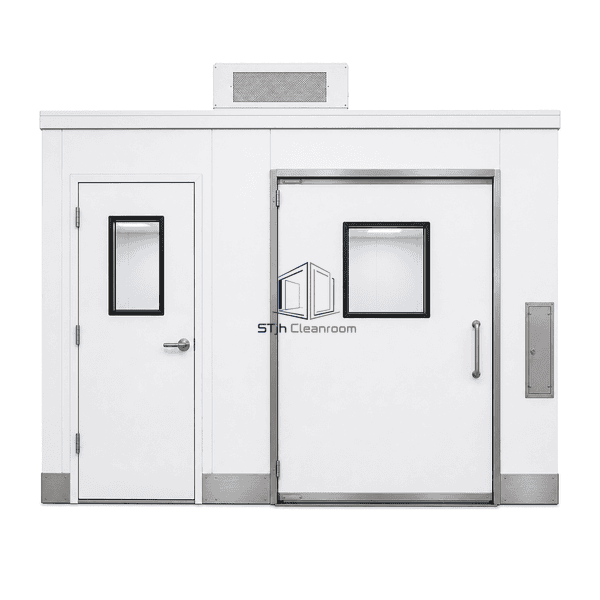

A panel-built sampling suite that separates incoming containers, personnel access and controlled sampling work within a self-contained warehouse installation.

Panel-Built Sampling Suite
Separated Material Access
Integrated Airflow Zones
Expandable Modular Layout

Request a Quote Browse Products

Product Introduction

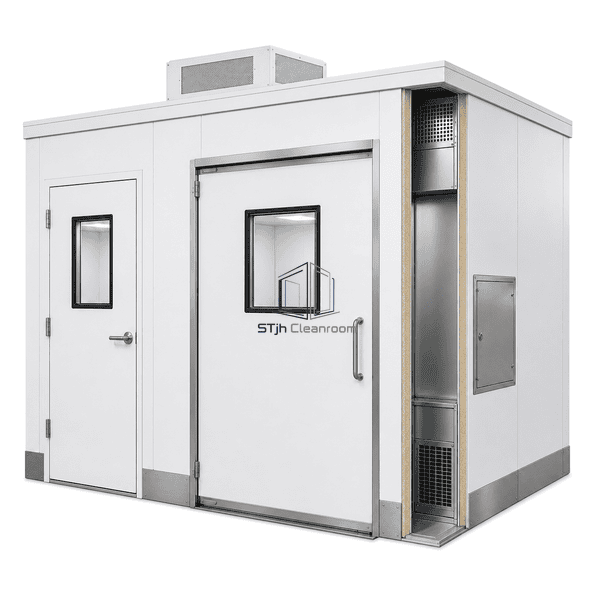

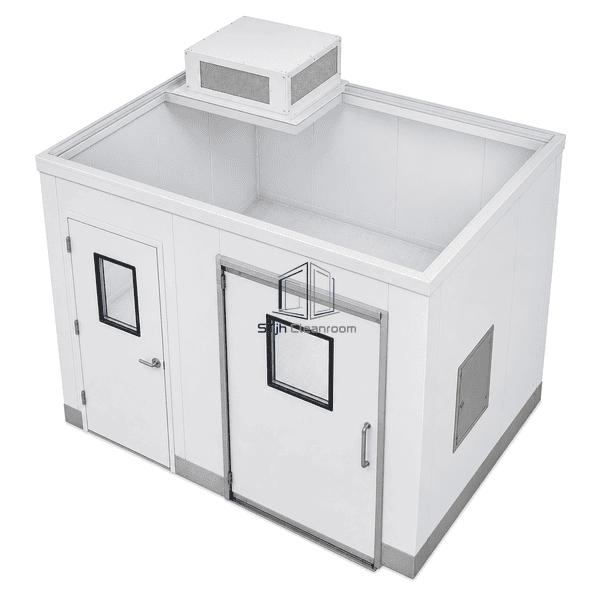

The modular sampling room encloses a complete workflow rather than a single open booth. Insulated cleanroom panels form the sampling space, while personnel and material doors can be arranged to avoid crossing routes. A filtered supply and return system maintains the selected room pressure and can include a local downflow station over the active sampling table. The panel system allows future extension or relocation without masonry construction.

Key Features

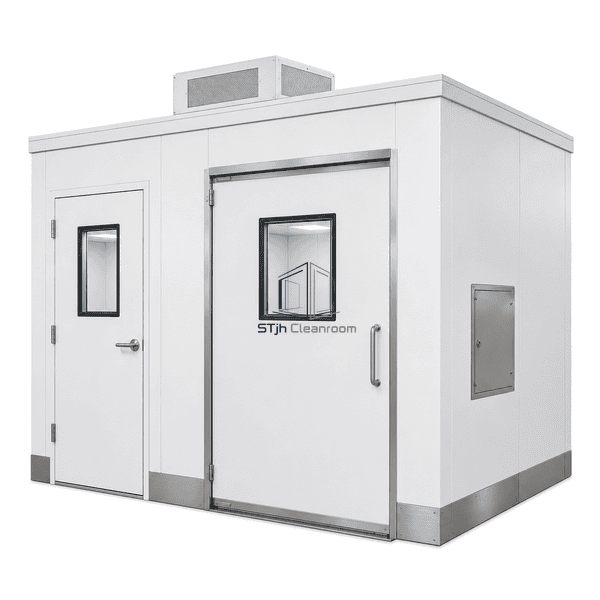

Separate personnel and material doors organize the sampling route.

A local downflow zone can be integrated within the larger clean room.

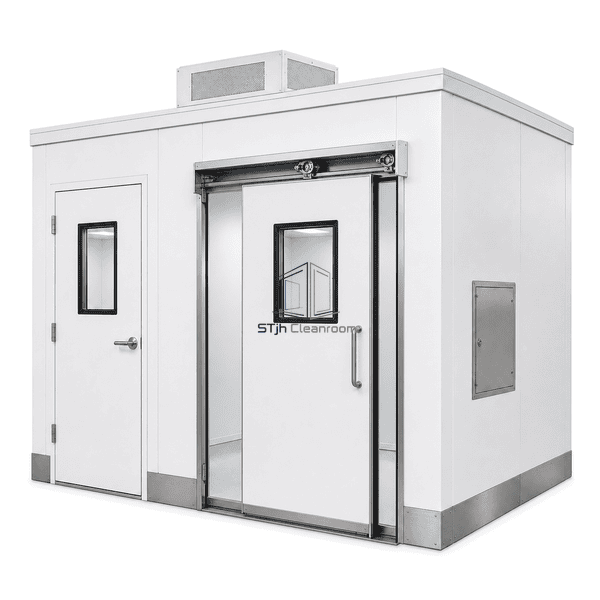

Flush wall and ceiling joints create cleanable internal surfaces.

Service panels group electrical, airflow and monitoring connections outside the work area.

Modular wall bays permit controlled expansion as sampling capacity grows.

Customer Product Concerns

A full sampling workflow needs orderly movement of people and containers, not just localized dust capture at one table.

Personnel and raw-material routes cross at one doorway.Dedicated doors separate gowning access from container entry.

Only the active sampling point requires strong local capture.A downflow work zone is integrated inside the larger controlled room.

Warehouse construction changes interrupt operations.Prefabricated panels install with limited wet building work.

Future capacity requires another sampling bay.Modular wall and ceiling sections can extend the suite layout.

Typical Applications

Incoming pharmaceutical materialsFood-ingredient samplingCosmetic raw-material checksControlled warehouse quality sampling

Technical Parameters

Typical configurable construction ranges for a modular raw-material sampling room are listed below.

Core Material	Mineral-wool or polyurethane cleanroom panels with powder-coated steel faces and SUS304 internal work-zone liners
Panel Thickness	50-100 mm wall and ceiling panels
Effective Width	2500-6000 mm clear room width
Maximum Length	Up to 12000 mm modular room length
Steel Facing Thickness	0.6-1.0 mm coated panel faces; 1.0-1.2 mm SUS304 local liners
Core Density	80-120 kg/m³ mineral wool or 38-45 kg/m³ polyurethane
Thermal Conductivity	0.035-0.045 W/(m·K) mineral wool or 0.022-0.028 W/(m·K) polyurethane
Surface Finish	Low-sheen white cleanroom coating with brushed stainless work-zone surfaces
Joint Type	Flush sealed tongue-and-groove panels with coved internal bases and gasketed access doors
Customization	Available based on the intended application and operating environment.

Available Options

Personnel and material airlocksIntegrated downflow boothPass-through sample hatchPressure display and room controls
