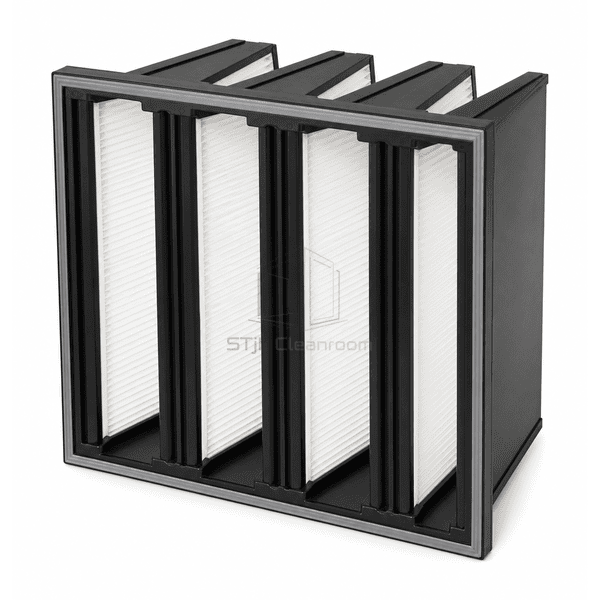

Three-quarter view of a multi-pack V-bank medium-efficiency air filter

Air Filters and Chemical Filtration

V-Bank Medium-Efficiency Filter

A multi-pack V-cell filter that expands media area and airflow capacity inside a durable full-size HVAC frame.

Multi-Pack V Geometry
High Media Area
Aerodynamic ABS Frame
Bidirectional Airflow Option

Request a Quote Browse Products

Product Introduction

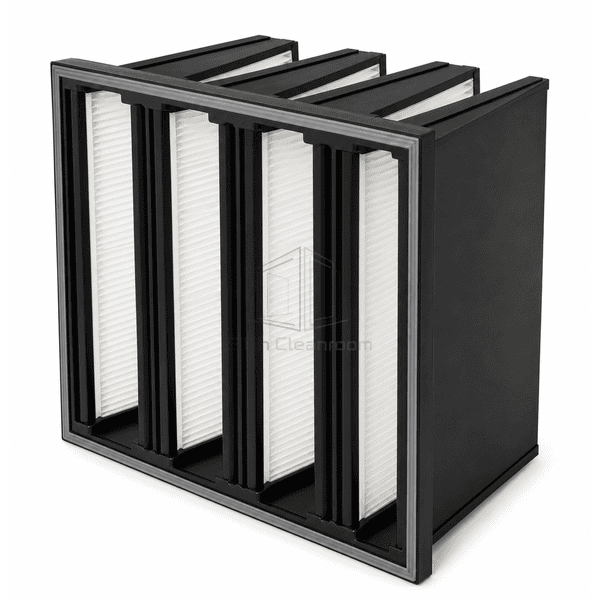

The V-bank medium-efficiency filter arranges several hot-melt-spaced mini-pleat packs in a V formation inside a molded ABS or galvanized enclosing frame. Each V opens a broad inlet path and exposes two media faces, greatly increasing surface area without extending the cabinet depth. Molded tracks position the packs precisely, rigid end caps brace the assembly and polyurethane sealant closes every pack-to-frame interface. The result is a robust ePM1 filter suited to high-volume air handlers where conventional panels would require excessive bank area.

Key Features

Multiple opposing mini-pleat packs expose a large filtering surface to a single face opening.

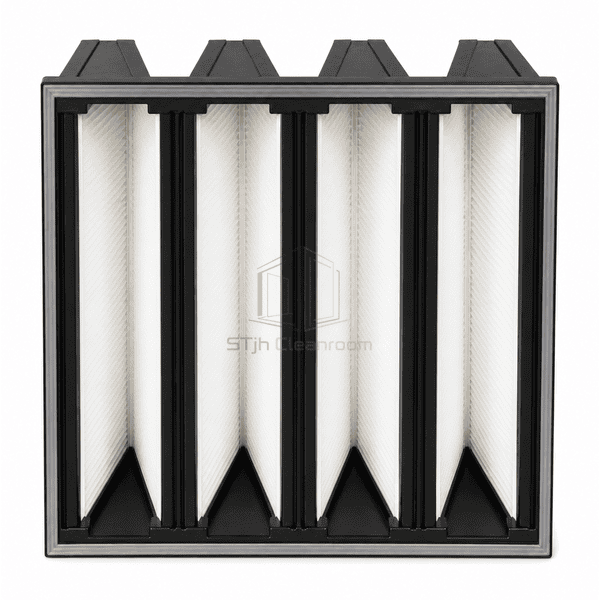

Aerodynamic V inlets distribute air across both sides of every media pack.

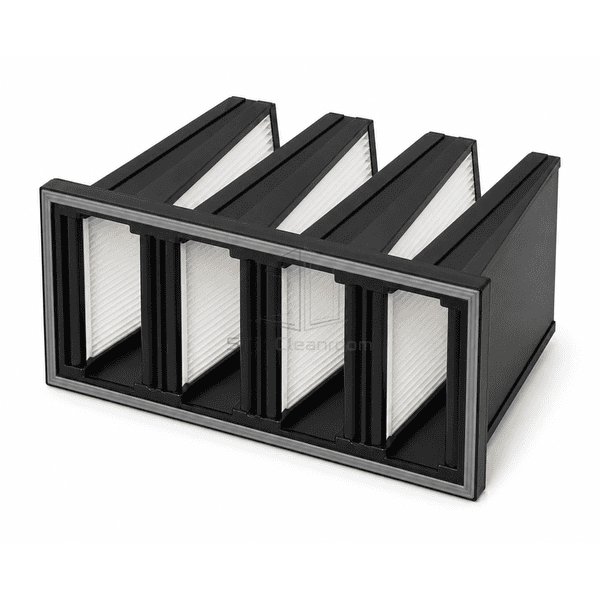

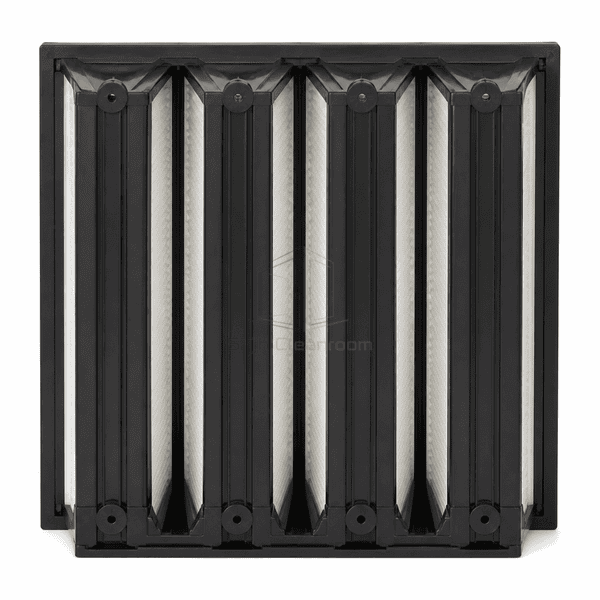

Rigid molded tracks and end caps resist racking during transport and high-velocity operation.

Recessed pack edges allow a coarse prefilter to be mounted without contacting the media.

Customer Product Concerns

A V-bank filter must deliver high face airflow without starving inner packs or opening leaks between the V cells.

A flat filter bank requires too much plant-room area for the design airflow.The V geometry multiplies media area behind each standard 592 mm face.

Air favors the outer packs and leaves the central media underused.Streamlined inlet channels and equal V spacing divide the face flow across all packs.

Flexible filter elements distort under high static pressure.ABS sidewalls, molded pack tracks and mechanically fastened end caps form a rigid load path.

A prefilter mounted directly upstream rubs against the fine media.Recessed pack faces and integral attachment points preserve clearance for the prefilter.

Typical Applications

High-volume cleanroom air handlersPharmaceutical HVAC filtrationHealthcare ventilation systemsData-center cooling airFinal filtration in commercial air-handling units

Technical Parameters

Typical construction ranges for a multi-pack V-bank medium-efficiency filter are listed below.

Core Material	Microfine glass-fiber mini-pleat packs with thermoplastic bead separators
Panel Thickness	292 mm nominal V-bank depth
Effective Width	287, 490 or 592 mm modular face width
Maximum Length	Up to 592 mm modular face height
Steel Facing Thickness	0.50-0.80 mm optional galvanized-steel prefilter support grille
Core Density	Approximately 80-140 kg/m³ nominal assembled V-pack density
Thermal Conductivity	Approximately 0.033-0.041 W/(m·K) for the dry microglass medium
Surface Finish	White microglass packs in black or natural-gray molded ABS framing
Joint Type	Mini-pleat packs mechanically located in V tracks and fully bonded with polyurethane sealant
Customization	Available based on the intended application and operating environment.

Available Options

ISO ePM1 60%, 70% or 80%Four-pack or six-pack V arrangementSingle-header or box-style perimeterIntegrated coarse-prefilter clips
