Three-quarter view of a static stainless-steel cleanroom pass box

Personnel and Material Decontamination Equipment

Static Cleanroom Pass Box

A non-ventilated stainless transfer cabinet that separates two rooms through sealed, interlocked doors.

Non-Ventilated Transfer Chamber
Dual-Door Interlock
Smooth Lipless Interior
Compression Door Seals

Request a Quote Browse Products

Product Introduction

The static pass box creates an enclosed material route through a cleanroom partition without its own fan or filter. Its double-wall stainless body conceals the interlock outside the payload space, and the flush internal chamber can be wiped without ledges. This simple configuration is suited to short transfers between compatible clean areas.

Key Features

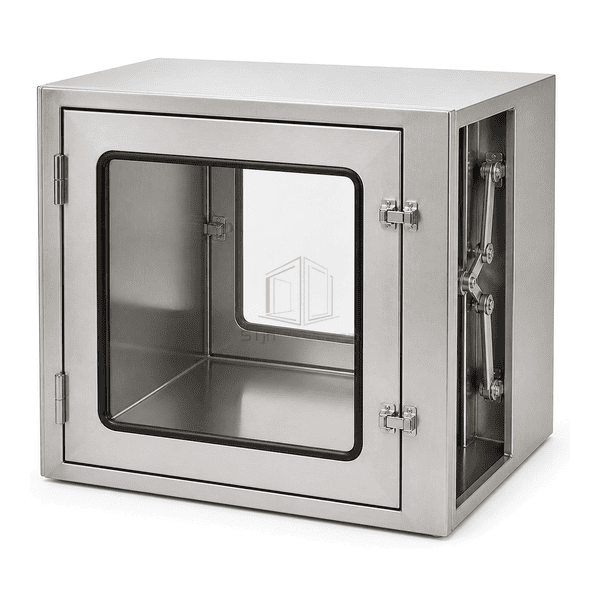

The concealed interlock is protected from impact by trays and cartons.

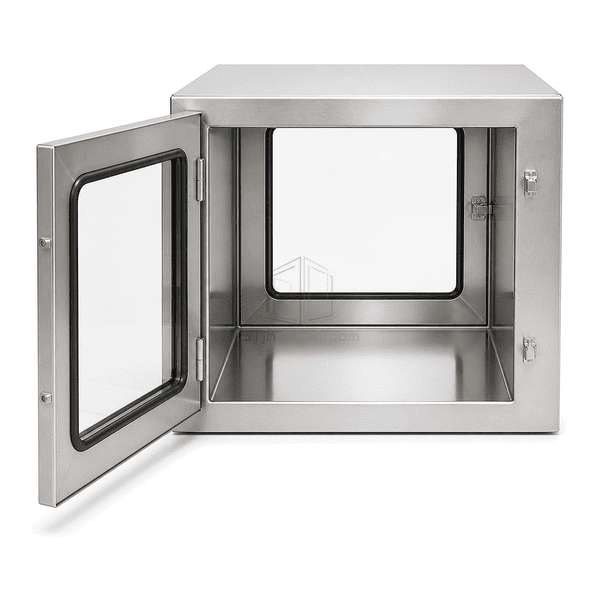

A lipless sill supports smooth, obstruction-free transfer.

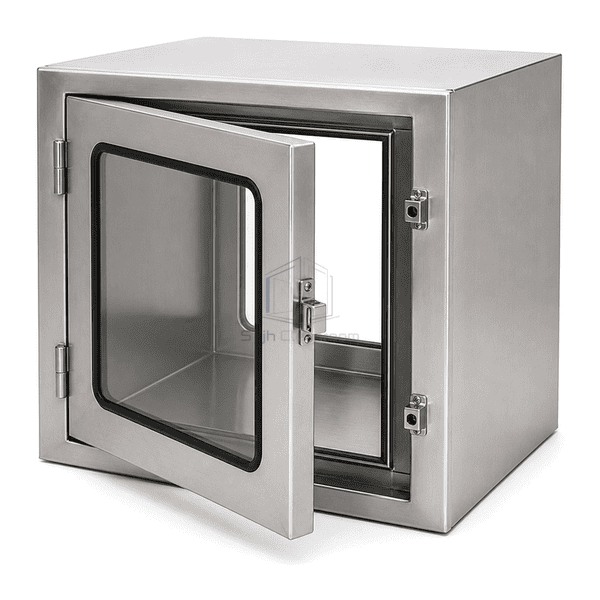

Compression latches draw the door against a continuous perimeter gasket.

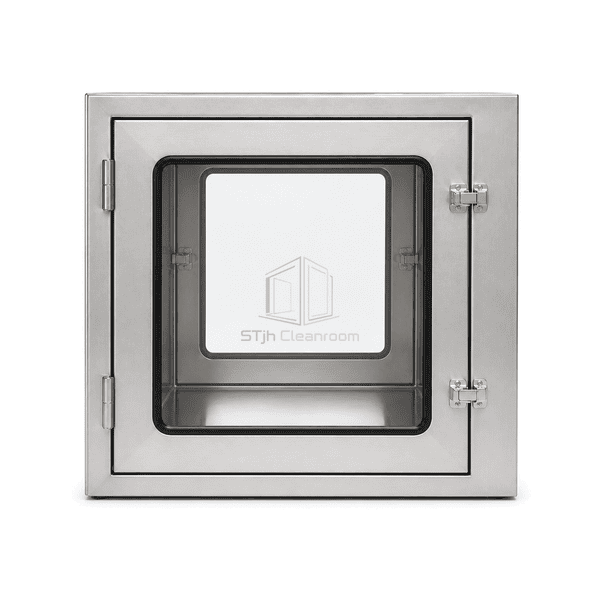

A glazed panel permits visual confirmation before access.

Mechanical or electrical one-door-at-a-time operation can be selected.

Customer Product Concerns

A passive pass box must preserve the wall opening and prevent direct room-to-room exposure.

A direct hatch lets air and particles pass between rooms.Two sealed doors create an intermediate transfer volume.

Exposed hardware collects dirt and is damaged by loads.The interlock is isolated behind the double-wall chamber.

Raised sills snag cartons and retain debris.A flush lipless transfer surface removes the ledge.

Door gaskets seal unevenly around the perimeter.Compression latches apply repeatable closure force along the door edge.

Typical Applications

Pharmaceutical packaging transferMedical-device componentsElectronics cleanroomsLaboratory sample movement

Technical Parameters

Typical construction ranges for a static wall-mounted pass box are listed below.

Core Material	Double-wall SUS 304 cabinet with polyurethane-insulated service void, glazed doors and silicone seals
Panel Thickness	50-80 mm double-wall cabinet construction
Effective Width	400-1000 mm clear transfer width
Maximum Length	Up to 1200 mm chamber depth
Steel Facing Thickness	1.0-1.5 mm stainless-steel facing
Core Density	35-40 kg/m³ polyurethane service-void insulation
Thermal Conductivity	0.022-0.028 W/(m·K) for polyurethane double-wall infill
Surface Finish	Brushed SUS 304 with smooth flush interior seams and optional electropolished chamber
Joint Type	Sealed folded or welded body with mechanically or electrically interlocked compression doors
Customization	Available based on the intended application and operating environment.

Available Options

Mechanical or electronic interlockSUS 304 or SUS 316L bodyOpaque or glazed doorsWall-thickness trim frame

Planning a Static Cleanroom Pass Box specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
