Cleanroom Wall and Ceiling Systems
Cleanroom Aluminum Extrusion Profile
A family of precision-extruded 6063-T5 aluminum sections for framing, joining, finishing and reinforcing modular cleanroom envelopes with sealed, compatible interfaces.
- 6063-T5 architectural aluminum
- Consistent extruded cross-sections
- Anodized or powder-coated finishes
- Profiles for 50, 75 and 100 mm panels
Product Introduction

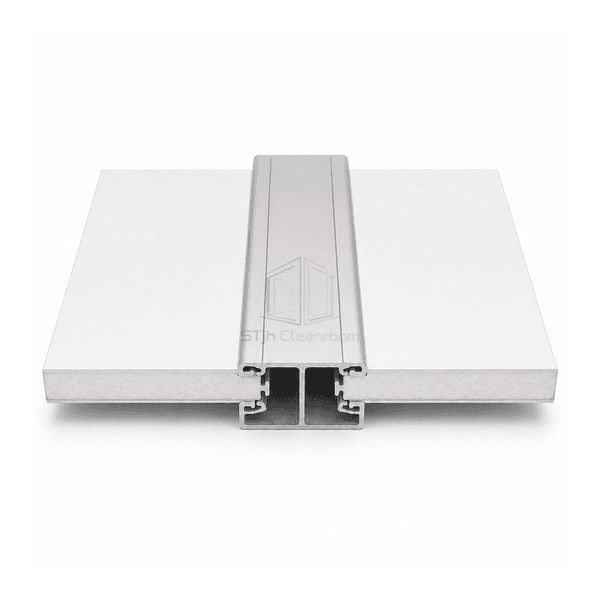

Cleanroom Aluminum Extrusion Profiles provide accurate interfaces for modular walls, ceilings, doors and glazed sections. The 6063-T5 alloy combines good extrusion quality with a clean architectural finish, allowing channels, corner sections, connectors and support members to share a coordinated visual language. Profiles can include screw ports, gasket grooves or clip features according to their function, while anodized and powder-coated surfaces support routine cleaning.
Key Features
A broad profile family covers framing, connection, edge protection and decorative finishing.

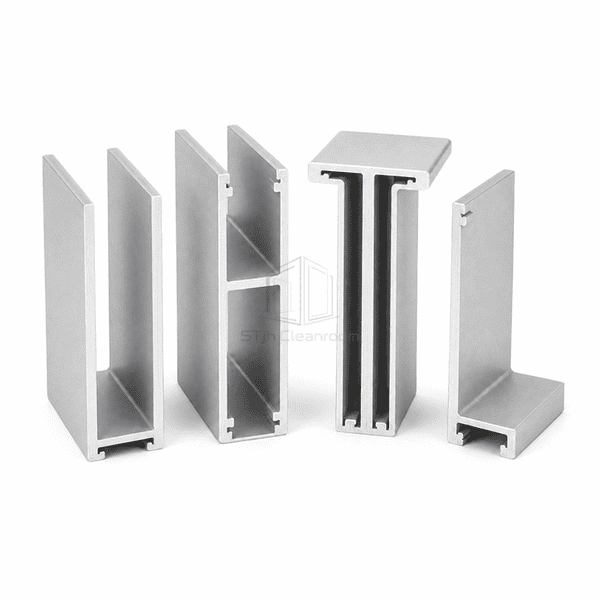

Integrated grooves can retain seals, cover strips or concealed fasteners.
The aluminum sections are lightweight for handling yet rigid enough for modular enclosure work.
Anodized and powder-coated finishes provide smooth, easy-wipe exposed surfaces.
Customer Product Concerns
Modular rooms require many different interfaces, but inconsistent profiles can create alignment, sealing and appearance problems at every junction.
Mixed framing components produce uneven sightlines across walls, doors and windows.A coordinated extrusion family keeps dimensions and exposed finishes visually consistent.
Loose surface-applied seals are difficult to position accurately.Purpose-formed gasket grooves hold compatible seals along a defined path.
Visible screw heads create dirt traps and an unfinished appearance.Profile designs with concealed fixing channels accept cover strips or clip-on caps.
Heavy framing increases handling effort during modular installation.Extruded aluminum provides useful section rigidity at a lower handling weight than comparable solid steel shapes.
Typical Applications
Modular cleanroom wall framingCeiling perimeter and support detailsCleanroom door and window framesPanel connectors and corner trimsEquipment enclosures and service partitions
Technical Parameters
Cross-section dimensions vary across the extrusion family. The listed material values describe commonly used 6063-T5 aluminum and compatible modular panel ranges.
| Core Material | Solid 6063-T5 extruded aluminum alloy |
|---|---|
| Panel Thickness | 50, 75 or 100 mm compatible panel systems |
| Effective Width | N/A — varies with the selected extrusion cross-section |
| Maximum Length | 6000 mm |
| Steel Facing Thickness | N/A — not applicable to an aluminum extrusion |
| Core Density | N/A — no insulated core; aluminum alloy density is approximately 2700 kg/m³ |
| Thermal Conductivity | N/A — no insulated core; aluminum alloy is approximately 200 W/(m·K) |
| Surface Finish | Clear anodized, colored anodized or polyester powder-coated |
| Joint Type | Channel, clip-fit, screw-fixed or gasket-retaining connection according to profile design |
| Customization | Available based on the intended application and operating environment |
Available Options

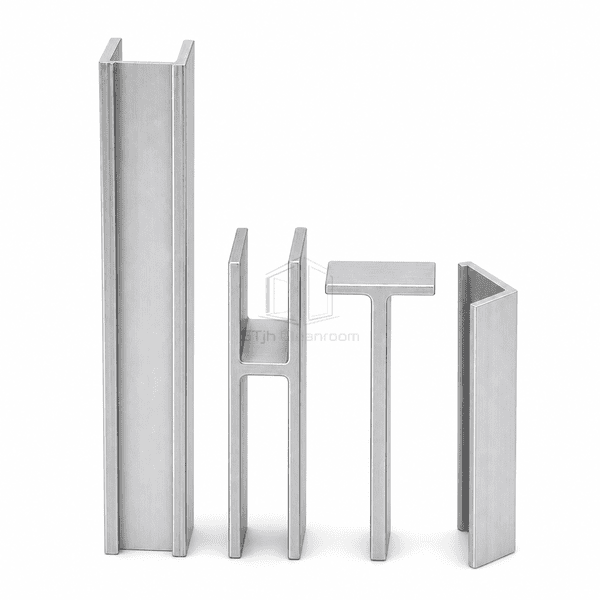

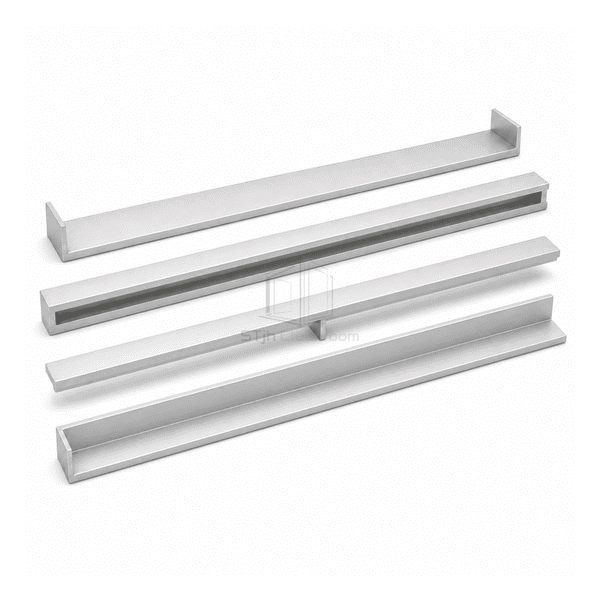

U-channel and perimeter sectionsH, T and corner connector profilesClear anodized finishWhite or custom-color powder coating
Planning a Cleanroom Aluminum Extrusion Profile specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
