Personnel and Material Decontamination Equipment

Cargo Cleanroom Air Shower

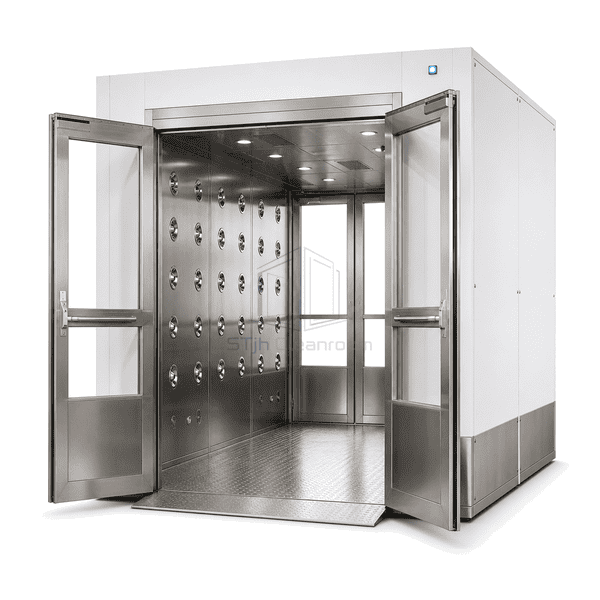

A reinforced material-transfer air shower that removes loose surface dust from carts, palletised loads and production equipment before clean-area entry.

Wide Cargo Passage
Side and Top Cleaning
Flush Wheeled Route
Heavy-Duty Returns

Request a Quote Browse Products

Product Introduction

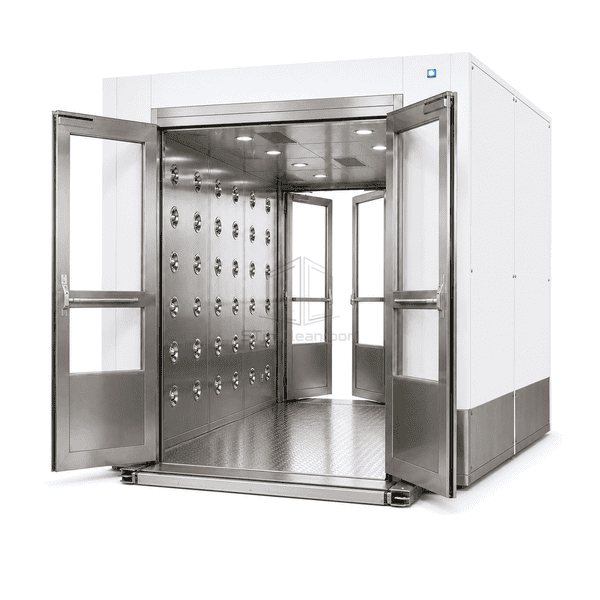

The cargo air shower is sized around material handling rather than a stationary operator. Sidewall jets, and optional roof jets, direct filtered air across trolley frames, cartons and equipment surfaces. A level reinforced floor supports wheeled transfer, while guarded low-level returns and larger prefilters accommodate the heavier fibres and warehouse dust commonly carried by incoming materials.

Key Features

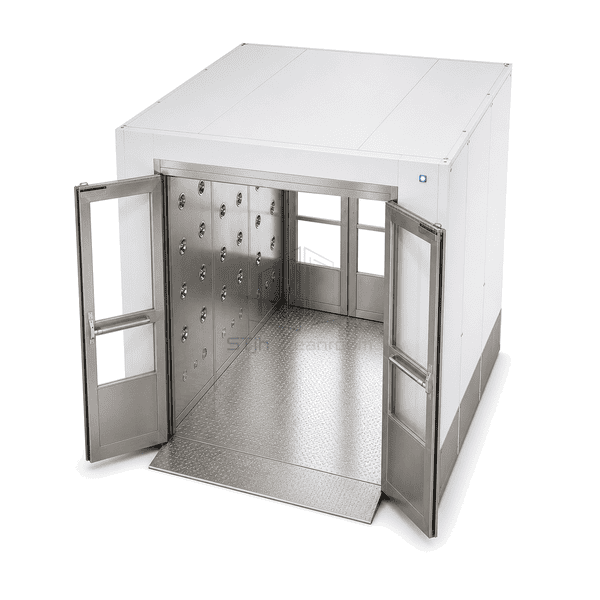

A broad, flush passage accommodates carts and pallet jacks without projecting floor rails.

Side and roof nozzle zones can clean vertical faces and upper load surfaces.

Lower impact protection guards returns from routine trolley contact.

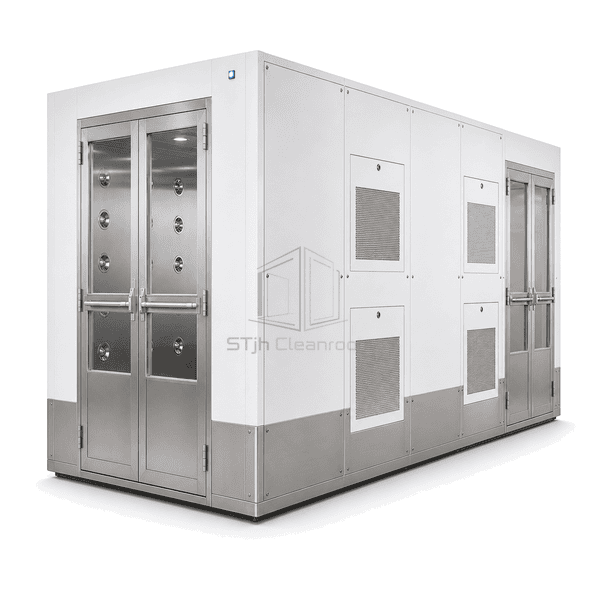

Large-area prefilters are suited to coarse packaging fibres.

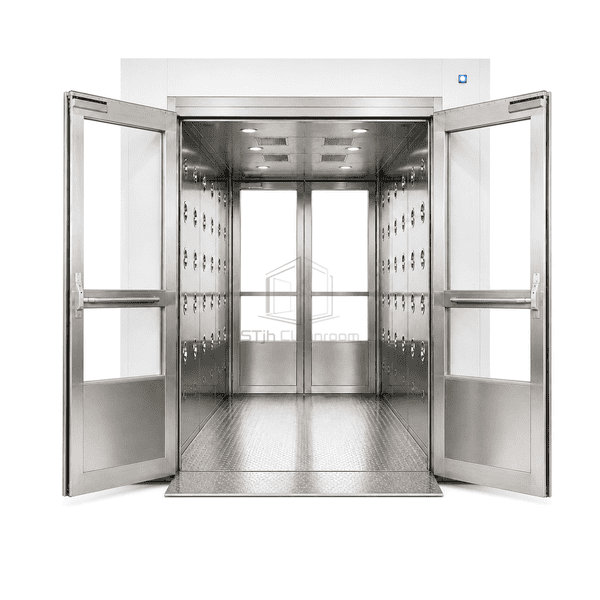

Large interlocked doors preserve the transfer boundary during the cleaning cycle.

Customer Product Concerns

Material loads vary in height, shape and wheel loading, so the chamber must clean exposed surfaces without obstructing the transfer route.

Tall loads leave their upper surfaces outside sidewall airflow.Optional roof nozzles direct filtered air downward across load tops.

Raised thresholds impede pallet-jack movement.A flush reinforced floor maintains a smooth wheeled path.

Cart impacts damage exposed return grilles.Kick plates and protected inlet faces shield the low-level return sections.

Packaging debris clogs small personnel-air-shower filters.Expanded washable prefilter banks offer greater coarse-dust collection area.

Typical Applications

Pharmaceutical material transferFood ingredient cart entryElectronics equipment move-inPackaging component decontamination

Technical Parameters

Typical structural ranges for a cart and equipment cargo air shower are given below.

Core Material	Reinforced mineral-wool insulated steel enclosure with multi-side nozzle plenums, washable prefilters and H13 HEPA banks
Panel Thickness	50-75 mm impact-reinforced wall and roof panels
Effective Width	1500-2500 mm clear cargo passage width
Maximum Length	Up to 6000 mm modular cargo cleaning length
Steel Facing Thickness	1.2-1.5 mm steel facing with heavier stainless kick plates
Core Density	80-120 kg/m³ mineral-wool enclosure core
Thermal Conductivity	0.036-0.045 W/(m·K) for the mineral-wool panel construction
Surface Finish	Powder-coated upper panels with brushed stainless lower impact protection
Joint Type	Bolted heavy-duty modular frame with flush floor joints and electrically interlocked cargo doors
Customization	Available based on the intended application and operating environment.

Available Options

Swing, sliding or roll-up cargo doorsSide-plus-ceiling nozzle arrangementWheel guides and bumper railsPallet-jack or powered-cart clearances

Planning a Cargo Cleanroom Air Shower specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
