Cleanroom Wall and Ceiling Systems

Modular Cleanroom Wall Panel

A demountable steel-faced wall module with a dense mineral wool core, engineered to create smooth, sealed cleanroom partitions that accept doors, glazing and service openings without wet construction.

Flush Hygienic Surface
Dense Mineral Wool Core
Demountable Wall Modules
Concealed Sealed Joints

Request a Quote Browse Products

Product Introduction

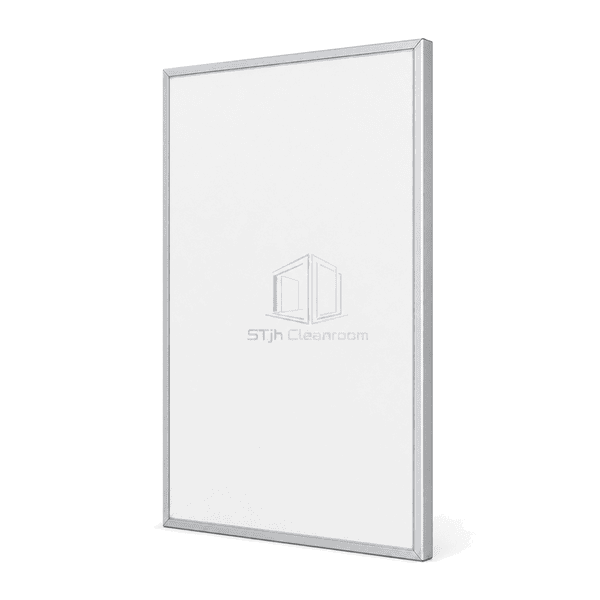

The Modular Cleanroom Wall Panel combines pre-painted galvanized steel skins, a hydrophobic rock wool core and protected perimeter edges in one factory-built partition element. Its interlocking vertical edges produce a straight wall line with a narrow sealant recess rather than exposed fasteners. Head and floor channels hold each module securely while still allowing selected panels to be removed when a room is altered. Doors, windows and pass-throughs fit into matching profiles, giving the completed envelope a consistent flush appearance.

Key Features

Four-side edge closure isolates the mineral core from the occupied cleanroom.

Balanced bonded skins help the module retain a flat face through normal handling and installation.

Hidden connectors preserve an uninterrupted wiping surface along long partition runs.

Individual panels can be replaced without dismantling the entire wall sequence.

Compatible framing accepts flush windows, doors, covings and transfer equipment.

Customer Product Concerns

Wall-system buyers typically compare core containment, cleanability, layout flexibility and the quality of interfaces around openings.

Exposed insulation at panel ends can release fibres when the wall is modified.Closed metal perimeter profiles retain the rock wool even at removable module boundaries.

Proud fasteners and wide trims create ledges that interrupt routine wiping.Concealed connections and flush joint seals keep the room face smooth from panel to panel.

Fixed partitions make future equipment moves expensive and disruptive.Demountable modules open a controlled section of wall and can be reinstalled in a revised layout.

Mismatched door and window frames leave difficult transitions around openings.A shared profile family joins panels, glazing and doors on the same finished plane.

Typical Applications

Pharmaceutical modular production partitionsModular partitions for medical-device assemblyBiotechnology cleanroom wall enclosuresElectronics production clean areasHygienic food packaging partitions

Technical Parameters

The following range represents a mineral-wool modular wall panel for typical cleanroom partition construction.

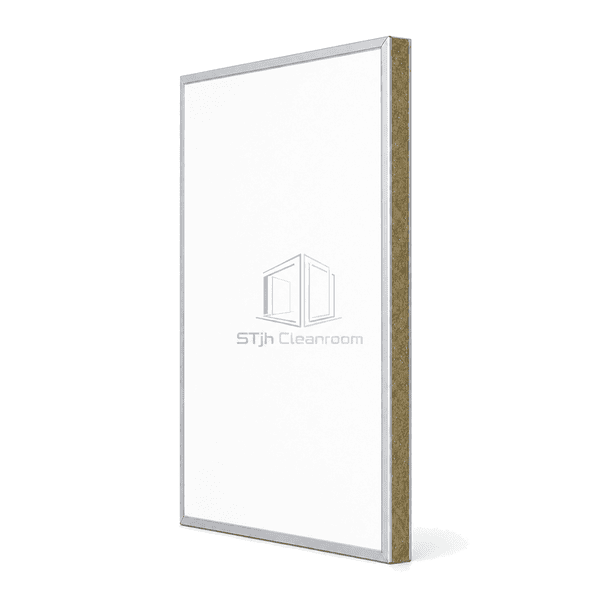

Core Material	Hydrophobic rock wool with four-side metal edge closure
Panel Thickness	50, 75 or 100 mm
Effective Width	980 or 1180 mm
Maximum Length	6000 mm
Steel Facing Thickness	0.50–0.60 mm
Core Density	100–120 kg/m³
Thermal Conductivity	0.035–0.040 W/(m·K)
Surface Finish	Smooth PE- or PVDF-coated galvanized steel; stainless steel optional

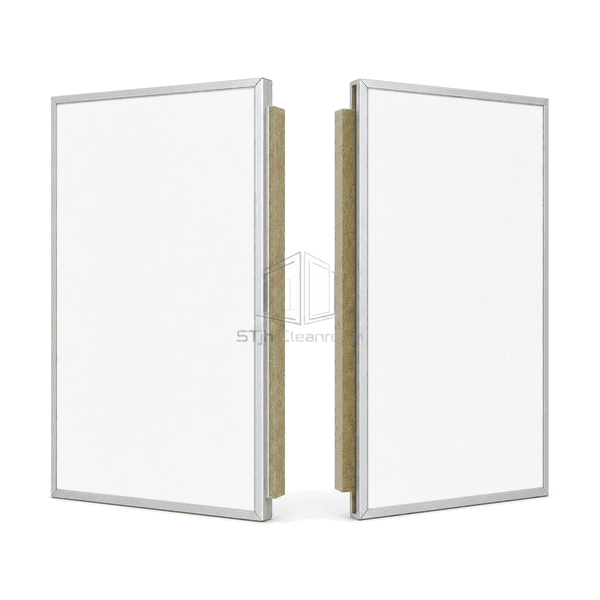

Joint Type	Concealed tongue-and-groove joint with recessed cleanroom seal
Customization	Panel dimensions, facings and opening details can be tailored to the intended room use

Available Options

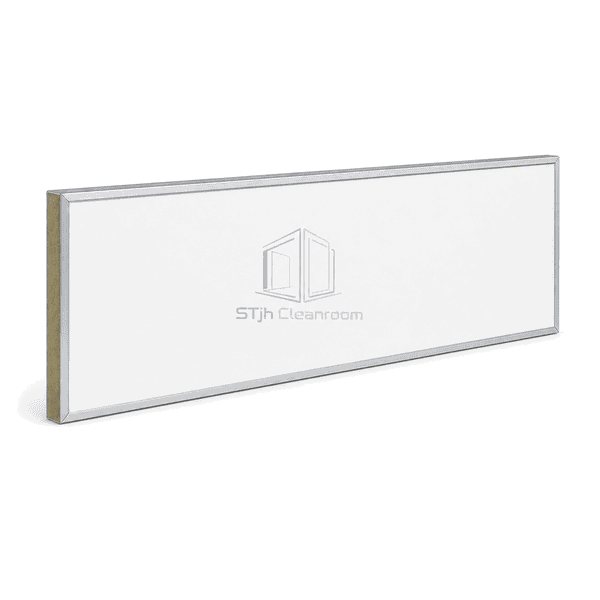

PVDF-coated or stainless steel room faceFactory-framed door and glazing openingsVertical or horizontal panel orientationReinforced zones for wall-mounted accessories
