Cleanroom Lighting and Electrical Equipment

Cleanroom Emergency Power Supply

A central battery and changeover cabinet that supplies selected cleanroom emergency circuits when the normal source is unavailable.

Central Battery Bank
Automatic Source Changeover
Dedicated Emergency Feeders
Monitored Charger and Alarms

Request a Quote Browse Products

Product Introduction

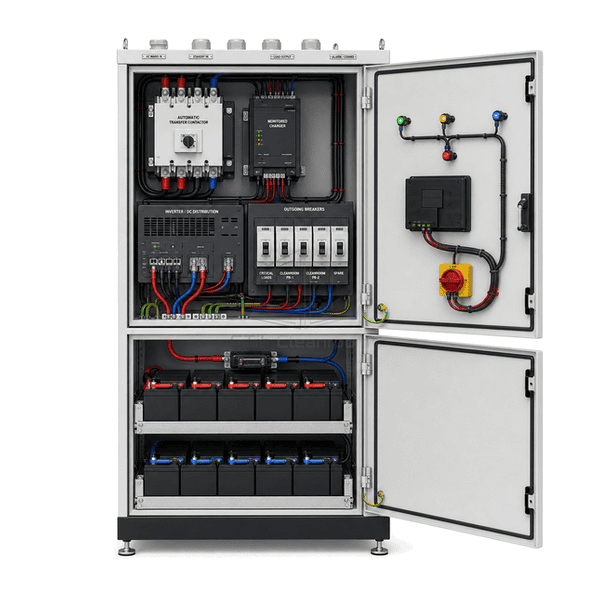

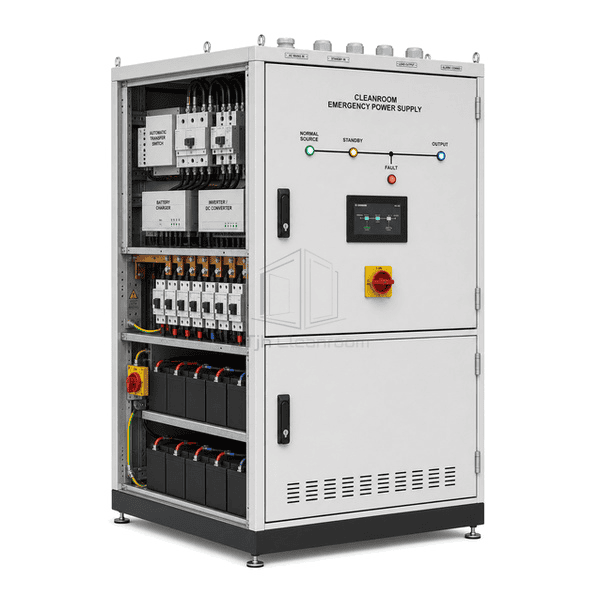

This emergency supply combines a charger, battery bank, inverter or DC distribution, automatic transfer logic and protected outgoing circuits in one monitored system. Unlike a general UPS serving connected equipment, it is arranged around defined emergency loads such as egress lighting, intercom, access release and control circuits. A front mimic display shows source, battery, output and fault conditions.

Key Features

Dedicated outgoing feeders separate emergency loads from normal branch circuits.

Automatic transfer logic energizes the backup path after loss of the monitored source.

The charger maintains the battery and reports low-voltage or battery fault conditions.

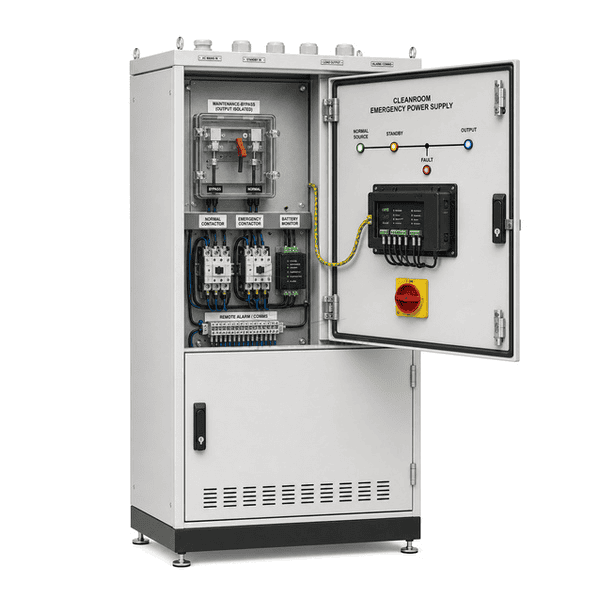

A mimic panel displays normal source, standby source and feeder status clearly.

An external maintenance bypass can preserve supply during cabinet service.

Customer Product Concerns

Emergency circuits must start reliably, remain clearly segregated and reveal battery or charger faults before a real supply failure.

Emergency and normal loads are mixed in one unmarked panel.Dedicated labeled feeders and separated terminals preserve circuit identity.

A failed charger remains unnoticed until the battery is needed.Continuous battery and charger supervision activates visible and remote alarms.

Transfer delay disrupts sensitive control circuits.The selected inverter or DC architecture matches the continuity requirement of each load.

Servicing the battery cabinet removes all emergency power.An optional maintenance bypass or alternate input supports planned work.

Typical Applications

Cleanroom emergency lightingDoor-release and intercom backupCritical alarm circuitsSelected ventilation controls

Technical Parameters

Typical configurable construction ranges for a cleanroom emergency power supply are listed below.

Core Material	Steel or stainless cabinet with charger, batteries, inverter or DC bus, automatic changeover and protected feeders
Panel Thickness	400-900 mm cabinet depth
Effective Width	600-1600 mm assembled cabinet width
Maximum Length	Up to 2200 mm floor-standing height
Steel Facing Thickness	1.5-2.0 mm cabinet body and doors
Core Density	Approximately 7850-8000 kg/m³ for steel or stainless cabinet material
Thermal Conductivity	14-60 W/(m·K) depending on stainless or carbon-steel enclosure
Surface Finish	Light-grey, white or brushed stainless enclosure with colored mimic and alarm indicators

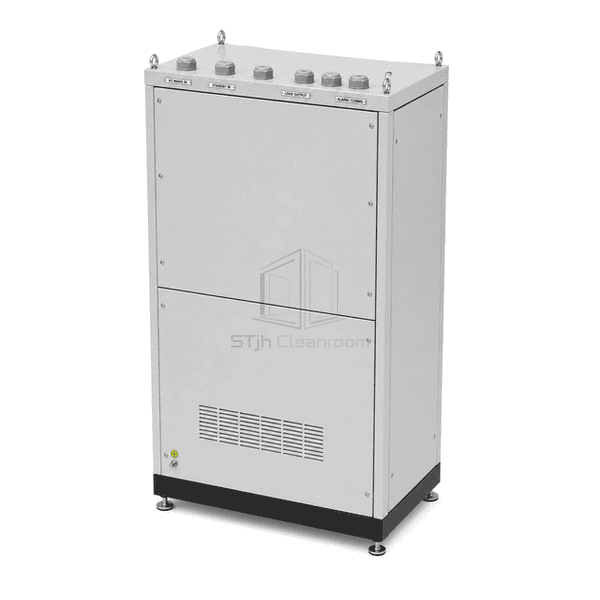

Joint Type	Gasketed modular cabinet with separated battery/power compartments and gland-plate cable entries
Customization	Available based on the intended application and operating environment.

Available Options

AC inverter or DC outputLithium-ion or VRLA battery bankIntegrated automatic transfer switchRemote alarm communication
