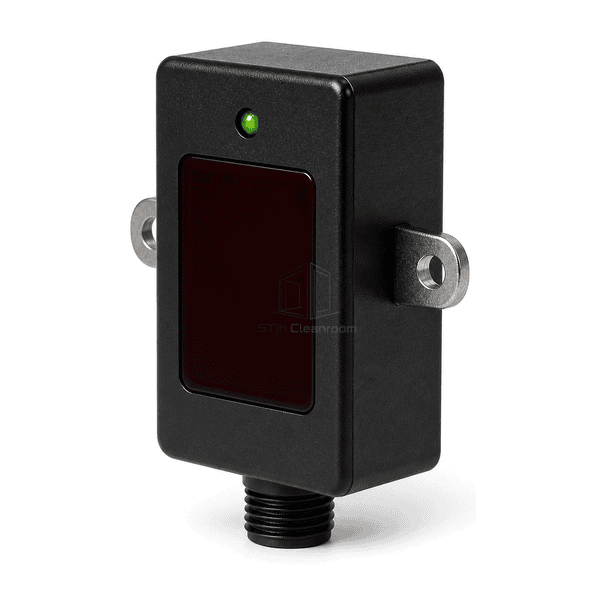

Three-quarter view of a cleanroom air shower infrared presence sensor

Cleanroom Equipment Spare Parts

Air Shower Infrared Sensor

A compact photoelectric sensor that detects entry or occupancy signals for automatic air shower cycle and door-control logic.

Non-Contact Detection
Compact Black Housing
Visible Status Indicator
Secure Two-Ear Mounting

Request a Quote Browse Products

Product Introduction

The air shower infrared sensor provides a non-contact presence signal to the sequence controller when a person or material load enters the sensing zone. A dark optical window shields the emitter and receiver components, while the status LED supports alignment and service checks. Side mounting ears hold the sensing face in a repeatable position inside the chamber. Replacement compatibility depends on sensing principle, supply voltage, output logic, connector arrangement and required detection distance.

Key Features

Non-contact detection avoids switches that require physical actuation.

A tinted optical window protects the sensing elements from routine chamber cleaning.

The visible indicator provides immediate confirmation of detection status.

Twin metal mounting ears support stable alignment on the air-shower panel.

Customer Product Concerns

Reliable cycle triggering requires a sensor that matches the controller input and remains correctly aimed in the chamber.

A narrow or misaligned detection zone fails to register chamber entry.Twin mounting ears provide repeatable positioning toward the intended sensing area.

An incompatible output signal cannot trigger the existing controller.Output logic and supply configuration are selected for the installed control input.

Contamination on exposed optics causes unstable sensing.The smooth tinted window presents a protected, wipe-clean optical face.

Technicians cannot quickly confirm whether the sensor is switching.A dedicated green indicator displays local detection status during testing.

Typical Applications

Personnel air shower occupancy detectionMaterial air shower entry sensingAutomatic shower-cycle triggeringCleanroom door-sequence control

Technical Parameters

Typical construction and dimensional ranges for compact air shower photoelectric sensors are shown below.

Core Material	Polycarbonate sensor housing with infrared emitter, receiver and electronic switching circuit
Panel Thickness	25-60 mm nominal sensor housing depth
Effective Width	45-90 mm nominal body width excluding mounting ears
Maximum Length	Up to 150 mm overall height including connector
Steel Facing Thickness	1.0-2.0 mm stainless-steel mounting-ear thickness
Core Density	1180-1220 kg/m³ for polycarbonate housing material
Thermal Conductivity	0.19-0.22 W/(m·K) for polycarbonate housing material
Surface Finish	Matte black housing with dark-red optical window and green status indicator
Joint Type	Sealed two-piece housing with twin mounting ears and threaded cable connector
Customization	Available based on the intended application and operating environment.

Available Options

Matched supply voltagePNP or NPN switching outputAdjustable detection distanceAlternative cable and connector lengths

Planning a Air Shower Infrared Sensor specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
