Cleanroom Drainage, Hygiene and Safety Equipment
Wall-Mounted Eyewash
A compact wall-supported twin-nozzle eyewash that preserves floor clearance while providing immediate hands-free flushing.
- Space-Saving Wall Mount
- Twin Protected Nozzles
- Stay-Open Push Control
- Stainless Receptor Option
Product Introduction

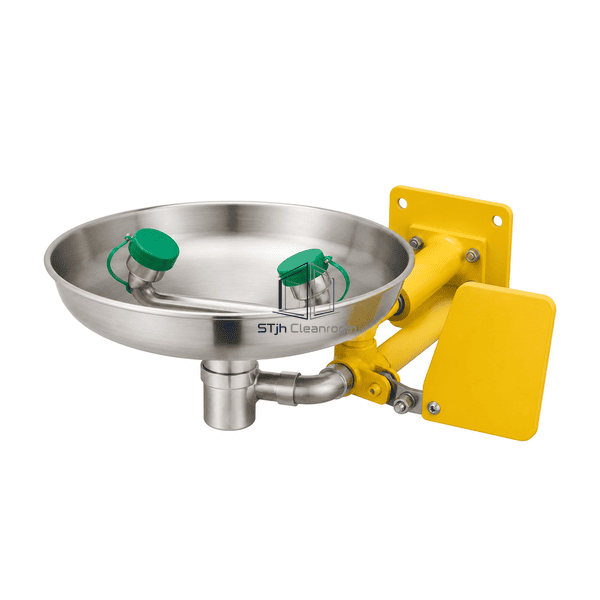

The wall-mounted eyewash places the receptor, twin flushing heads and activation valve on a rigid bracket, leaving the floor beneath clear for cleaning and circulation. A large push flag opens a stay-open valve, while flow controls and an inlet strainer stabilize the two streams. Supply and waste connections can pass directly through the wall or remain accessible beneath the receptor according to the service layout.
Key Features
Twin covered heads deliver simultaneous controlled flushing streams.
A stay-open valve leaves both hands free after one-motion activation.
Stainless and chemical-resistant receptor options suit different cleaning chemistries.
Customer Product Concerns
Small laboratories need an unobstructed emergency flush point without sacrificing activation clarity or service access.
A pedestal unit obstructs narrow aisles and complicates floor cleaning.The load-bearing wall bracket keeps the complete eyewash above the floor.

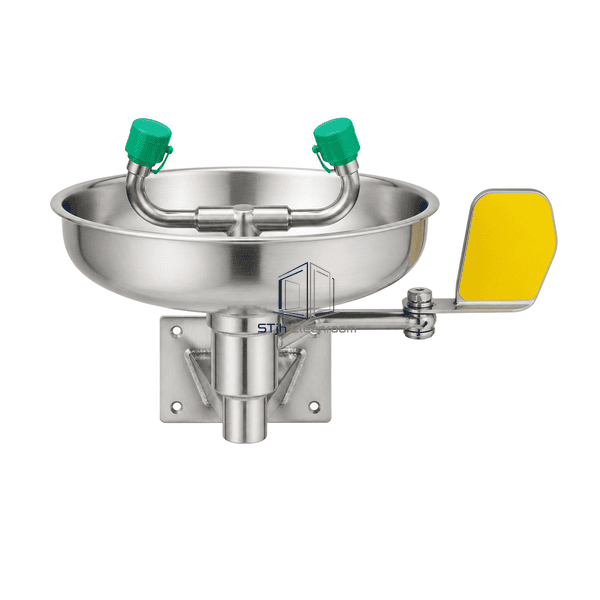

Emergency users need to operate the station while vision is impaired.A large safety-colored push flag provides a simple tactile activation point.
Water pressure variation can make one nozzle stream stronger than the other.Matched flow controls regulate both heads from the common filtered inlet.

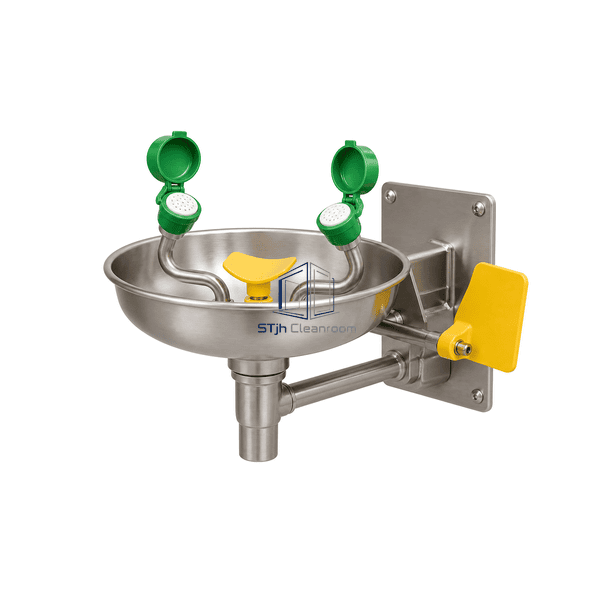

Visible piping can conflict with a clean wall finish.Rear-entry supply and waste routing can conceal services within the technical wall zone.
Typical Applications
Cleanroom laboratoriesChemical sampling roomsResearch wet benchesCompact utility alcoves
Technical Parameters
Typical dimensions and materials for a wall-mounted plumbed eyewash are listed below; final wall reinforcement and emergency-water supply are coordinated with the room services.
| Core Material | 304 stainless receptor and bracket with chrome-plated brass valve components |
|---|---|
| Panel Thickness | 1.0-1.5 mm stainless receptor |
| Effective Width | 280-400 mm |
| Maximum Length | Up to 500 mm projection from wall |
| Steel Facing Thickness | 1.0-2.0 mm stainless bowl and mounting bracket |
| Core Density | 7900-8000 kg/m³ for stainless structural parts |
| Thermal Conductivity | 14-16 W/(m·K) for stainless components |
| Surface Finish | Bright or satin stainless with safety-green activation components |
| Joint Type | Bolted wall bracket with threaded inlet, waste and stay-open valve connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Rear or bottom service entryStainless or polymer receptorFlow-switch alarm contactTempered-water mixing assembly
Planning a Wall-Mounted Eyewash specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
