Fixed UV-C germicidal luminaire with polished reflector and protected lamp

Cleanroom Lighting and Electrical Equipment

UV Germicidal Light

A fixed UV-C surface-treatment luminaire with a polished reflector and protected control circuit for scheduled unoccupied-room operation.

Short-Wave UV-C Source
Polished Directional Reflector
Interlock-Ready Circuit
Visible Operating Indicator

Request a Quote Browse Products

Product Introduction

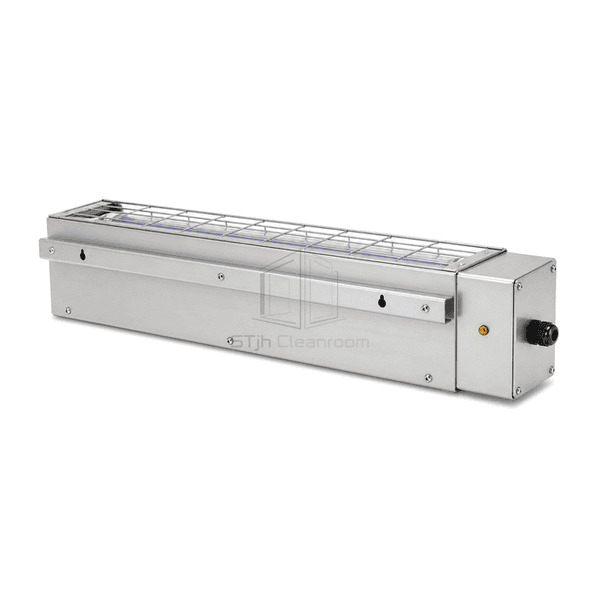

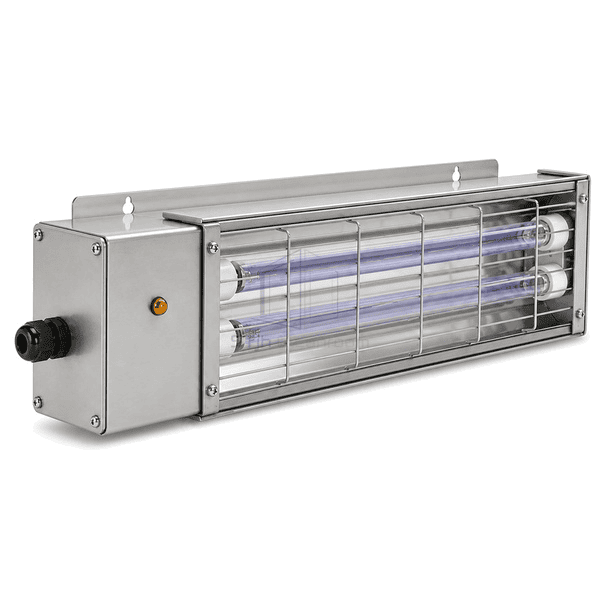

The fixed germicidal luminaire mounts to a wall or ceiling and directs UV-C energy toward the defined treatment surface. Low-pressure UV lamps or suitable emitters sit within a corrosion-resistant reflector, while the ballast and terminals are enclosed behind a separate cover. The control connection can accept door, occupancy or remote timer signals so exposure is limited to the intended operating sequence.

Key Features

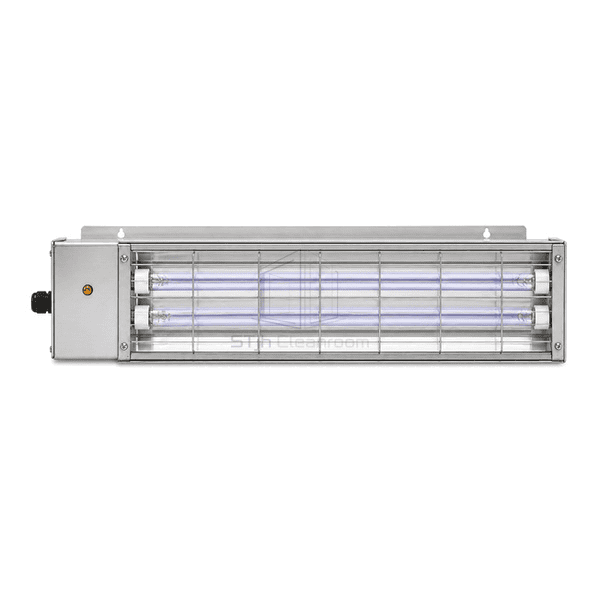

A polished aluminum reflector directs output toward the selected treatment zone.

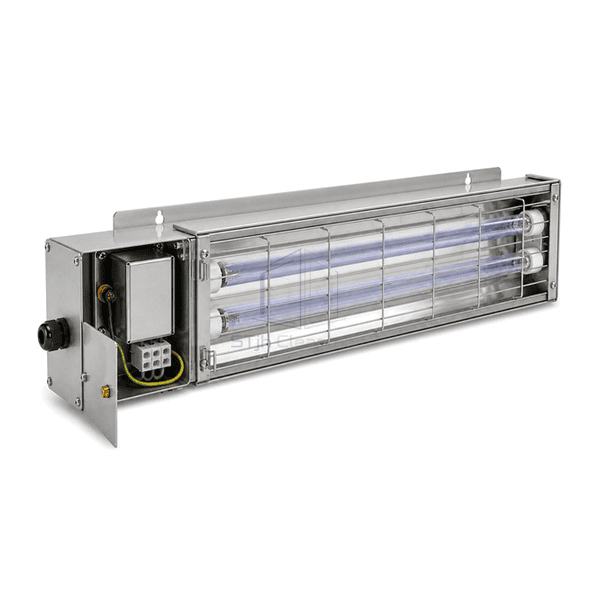

The electrical chamber shields the ballast and terminals from the exposed lamp area.

A remote-enable input supports door, occupancy and timer control architecture.

A distinct status indicator makes an active treatment cycle visible.

Tool-retained lamp guards reduce accidental contact during servicing.

Customer Product Concerns

UV-C is useful only when dose, line of sight, material compatibility and safeguards are considered together for the specific installation.

Shadowed surfaces receive much less direct irradiation.Reflector orientation and multiple mounting positions are planned around the actual geometry.

A conventional light switch can energize the fixture while people are present.Dedicated interlock and remote-enable inputs separate treatment control from room lighting.

UV exposure degrades unprotected polymers and seals.UV-resistant adjacent materials and controlled cycle duration reduce unnecessary exposure.

Operators cannot distinguish standby from active treatment.A separate visible warning indicator confirms when the UV-C circuit is energized.

Typical Applications

Unoccupied cleanroom surface treatmentPass-through interior treatmentAir-handling irradiation sectionsLaboratory room cycles

Technical Parameters

Typical configurable construction ranges for a fixed UV-C germicidal luminaire are listed below.

Core Material	Stainless or coated-steel electrical body with polished aluminum reflector, UV-C lamp and protected ballast
Panel Thickness	70-160 mm complete reflector and housing depth
Effective Width	120-350 mm reflector width
Maximum Length	Up to 1500 mm complete luminaire length
Steel Facing Thickness	0.8-1.2 mm stainless or coated-steel electrical enclosure
Core Density	Approximately 2700 kg/m³ for the aluminum reflector
Thermal Conductivity	160-205 W/(m·K) for the aluminum reflector body
Surface Finish	Bright polished aluminum reflector with white or brushed stainless electrical housing
Joint Type	Tool-retained lamp guards with gasketed electrical compartment and hardwired interlock terminals
Customization	Available based on the intended application and operating environment.

Available Options

Open direct or louver-shielded reflectorWall, ceiling or duct mountingRemote timer and door interlock inputSingle- or twin-lamp body

Planning a UV Germicidal Light specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
