Cleanroom Drainage, Hygiene and Safety Equipment

Cleanroom Heat Detector

A sealed low-profile thermal detector for spaces where aerosols or process conditions make optical smoke sensing unsuitable.

Fixed-Temperature or Rate-of-Rise
Low-Profile Cleanable Housing
Addressable Status Reporting

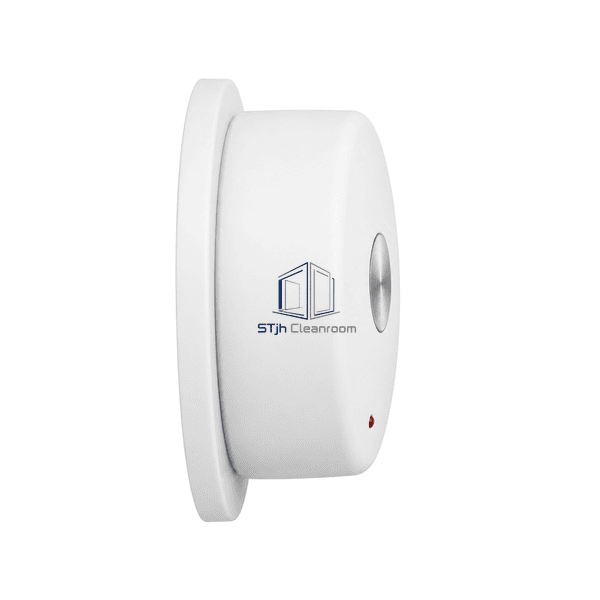

Sealed Ceiling Base

Request a Quote Browse Products

Product Introduction

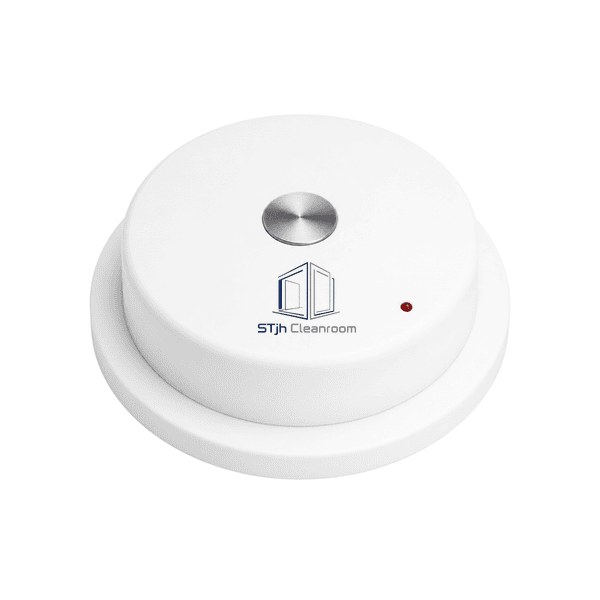

The cleanroom heat detector monitors ambient temperature with fixed-threshold, rate-of-rise or combined logic. Its smooth polymer head attaches to a gasketed wired base so the visible ceiling interface remains compact. Addressable variants identify the device and report alarm or fault status, while conventional variants connect to zone circuits using the same serviceable head-and-base arrangement.

Key Features

Selectable thermal logic suits steady or rapidly changing room conditions.

Smooth housing minimizes exposed recesses.

Twist-lock removal leaves wiring secured in the base.

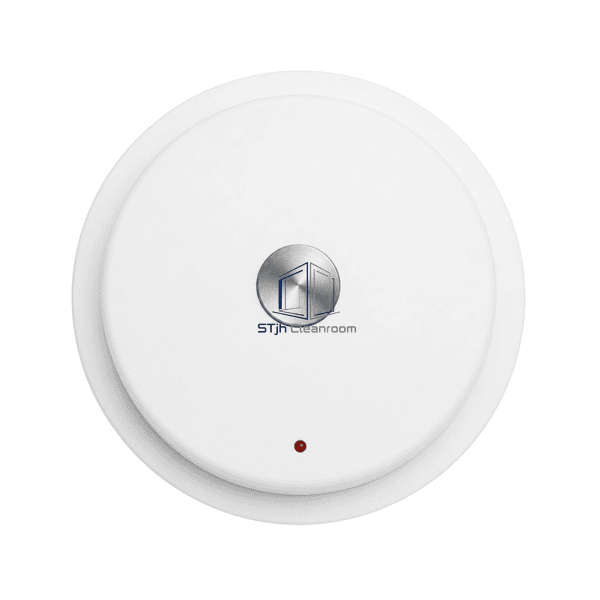

Local LED and remote-indicator terminals simplify status checks.

Customer Product Concerns

Some controlled spaces produce vapor or aerosols that can cause unwanted optical alarms but still require dependable fire detection.

Routine aerosols resemble smoke to an optical chamber.Thermal sensing responds to temperature behavior instead of airborne particles.

A high normal temperature can sit close to a generic alarm point.The detector class and threshold are selected for the actual ambient range.

Ceiling wiring should not be disturbed during head replacement.A removable sensing head connects to a permanently wired base.

Maintenance staff need quick alarm location.Device addressing and visible LED status identify the active detector.

Typical Applications

Clean utility roomsProcess support spacesAreas with routine aerosolsControlled electrical rooms

Technical Parameters

Typical housing and mounting values are listed below; thermal class and system compatibility are selected for the protected space.

Core Material	Flame-retardant polymer housing with stainless mounting plate and electronic thermistor
Panel Thickness	2.0-3.0 mm molded housing wall
Effective Width	90-130 mm detector diameter
Maximum Length	Up to 70 mm installed depth
Steel Facing Thickness	0.8-1.2 mm internal stainless mounting plate
Core Density	1200-1450 kg/m³ for polymer housing
Thermal Conductivity	0.18-0.30 W/(m·K) for polymer housing
Surface Finish	Smooth matte white cleanable housing

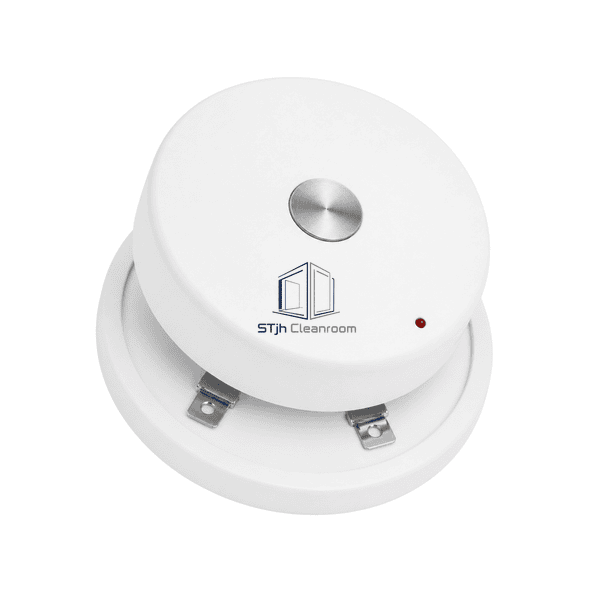

Joint Type	Twist-lock thermal head on gasketed wired mounting base
Customization	Available based on the intended application and operating environment.

Available Options

Fixed-temperature classRate-of-rise logicAddressable isolator baseRemote indicator
