Cleanroom Doors, Windows and Interlock Systems
Cleanroom Electric Drop Bolt Lock

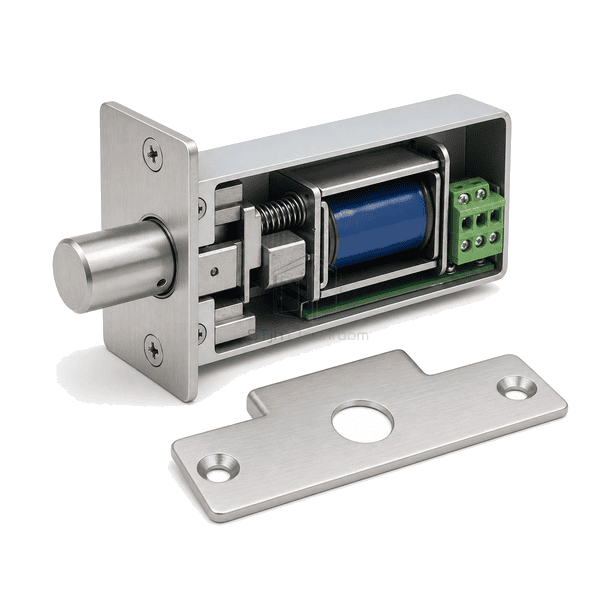

A concealed solenoid-operated bolt that projects into a matching keeper after the cleanroom door reaches its aligned closed position.
- Concealed Mortise Body
- Hardened Stainless Bolt
- Door Alignment Tolerance
- Bolt Status Feedback
Product Introduction

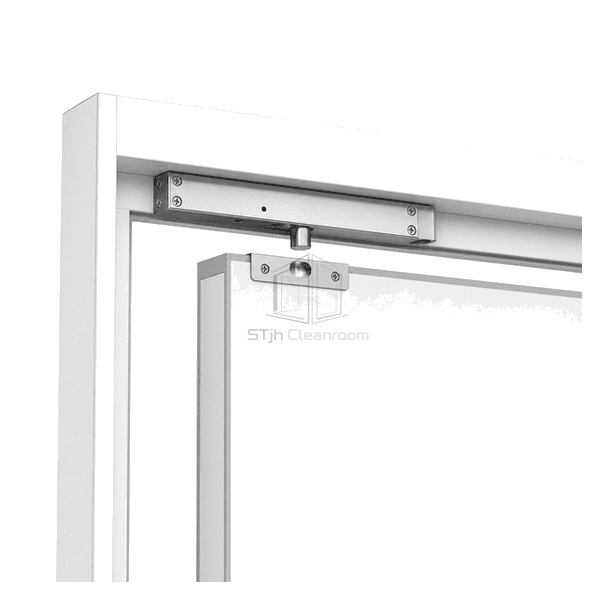

This electric drop bolt is recessed into the cleanroom header, frame or door leaf so only narrow stainless faceplates remain visible. A position input prevents premature projection, then the solenoid drives a hardened bolt into the keeper to secure the closed opening. Monitored versions can report both door alignment and bolt position, making the lock suitable for automated access sequences where a compact hidden mechanism is preferred.
Key Features
The narrow mortise body fits aluminum cleanroom frames without a bulky external lock case.
Door-position and bolt-position contacts support separate closed and locked indications.
A controlled re-lock delay can accommodate door rebound before the bolt projects.
Customer Product Concerns
A concealed bolt must tolerate normal door movement while avoiding projection against a misaligned keeper.
A bolt that fires before the leaf settles can strike the keeper edge and jam.The lock uses door-position input and an adjustable delay before extension.
External lock cases disrupt the clean lines of a narrow aluminum frame.The solenoid body is mortised behind a slim stainless faceplate.
Maintenance staff need to know whether the bolt actually reached the locked position.A dedicated bolt monitor reports full extension independently of the door contact.
Typical Applications
Interlocked swing doorsAutomatic sliding cleanroom doorsRestricted laboratory roomsHigh-value controlled storage
Technical Parameters
Common dimensions and materials for a compact cleanroom electric drop bolt are shown below.
| Core Material | Copper solenoid coil, low-carbon steel plunger and hardened stainless-steel bolt |
|---|---|
| Panel Thickness | Approximately 43–46 mm mortise-body depth |
| Effective Width | Approximately 34–38 mm faceplate width |
| Maximum Length | Approximately 210 mm overall faceplate length |
| Steel Facing Thickness | 2.5–3.0 mm brushed stainless-steel faceplate |
| Core Density | Approximately 7850 kg/m³ for the steel bolt and magnetic plunger |
| Thermal Conductivity | Approximately 15–50 W/(m·K) across stainless and low-carbon steel components |
| Surface Finish | Brushed stainless-steel lock and keeper faceplates |

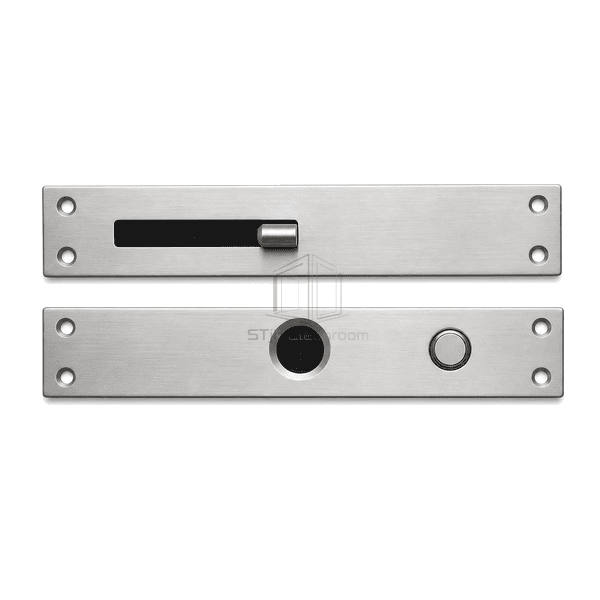

| Joint Type | Flush mortise installation with aligned bolt keeper and concealed cable entry |
| Customization | Available based on the intended application and operating environment. |
Available Options
Fail-safe or fail-secure operation12 or 24 VDC inputBolt and door-position monitoringNarrow-frame and glass-door brackets
Planning a Cleanroom Electric Drop Bolt Lock specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
