Cleanroom Installation Accessories

Ceiling Grid Connector

A galvanized four-way stamped plate that locates and fastens intersecting cleanroom ceiling-grid channels at a common center.

Four-Way Geometry
Eight Adjustment Slots
Folded Locating Tabs
Galvanized Steel

Request a Quote Browse Products

Product Introduction

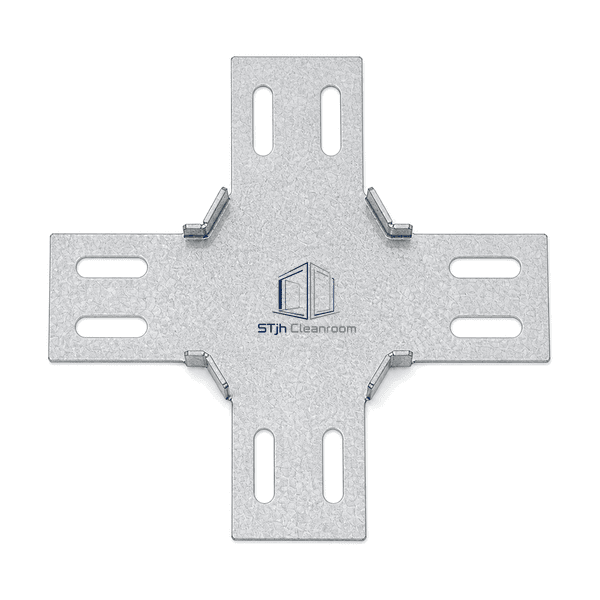

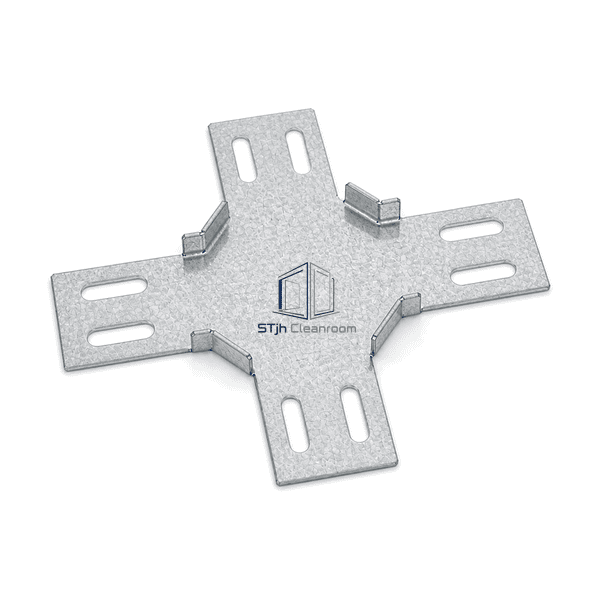

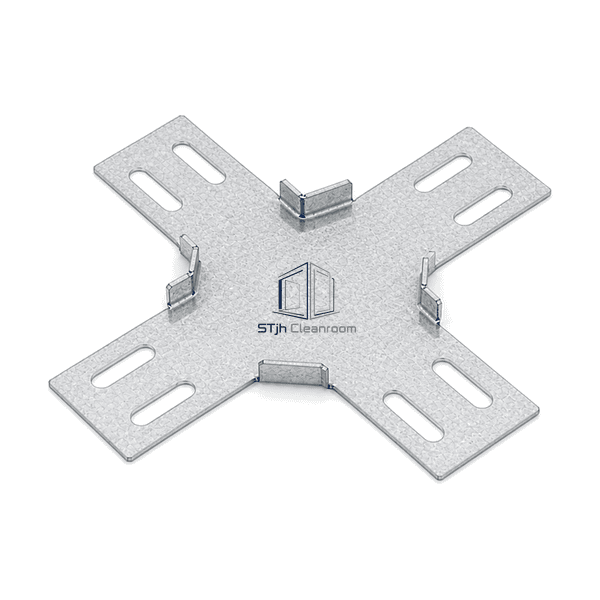

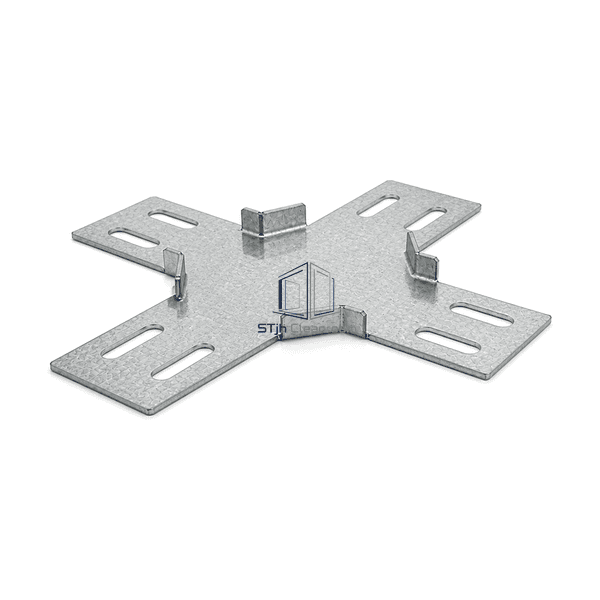

The ceiling grid connector is a one-piece stamped steel cross plate with four perpendicular arms. Paired oblong slots on every arm provide fixing and limited alignment adjustment, while folded tabs register mating channels around the central intersection. The low-profile fitting reinforces a four-way ceiling-grid joint without adding a bulky exposed component below the finished ceiling plane.

Key Features

Four equal arms establish a controlled orthogonal grid intersection.

Two slots per arm provide balanced fixing and field adjustment.

Folded locating tabs guide compatible channels into repeatable positions.

Stamped galvanized construction combines low profile with practical joint stiffness.

Customer Product Concerns

Four intersecting ceiling channels must remain square and flush while installers position and tighten multiple fasteners.

Loose channels drift out of square during assembly.The cross geometry and locating tabs register all four directions from one center.

Fixed round holes offer little tolerance for site alignment.Paired elongated slots provide controlled adjustment before tightening.

Stacked splice pieces create an uneven joint thickness.A single stamped plate distributes the connection in one low-profile layer.

Unprotected concealed steel can corrode in humid plenums.Galvanized or stainless material is selected for the expected exposure.

Typical Applications

Cleanroom ceiling-grid intersectionsModular ceiling framesService-plenum support gridsWalkable ceiling subframesFour-way channel junctions

Technical Parameters

Typical construction ranges for a four-way galvanized cleanroom ceiling-grid connector are listed below.

Core Material	One-piece stamped galvanized carbon-steel cross connector
Panel Thickness	40-150 mm compatible ceiling-panel thickness
Effective Width	30-100 mm compatible grid-channel width per arm
Maximum Length	Up to 500 mm overall connector span
Steel Facing Thickness	1.50-3.00 mm stamped connector thickness
Core Density	Approximately 7850 kg/m³ for carbon steel
Thermal Conductivity	Approximately 45-60 W/(m·K) for carbon steel
Surface Finish	Silver zinc-plated or hot-dip galvanized stamped steel
Joint Type	Four-way slotted overlap connection with folded channel-locating tabs
Customization	Available based on the intended application and operating environment.

Available Options

Galvanized or stainless steelCustom arm lengthRound or elongated fixing holesChannel-specific locating-tab geometry
