Cleanroom Installation Accessories

Cable Penetration Seal

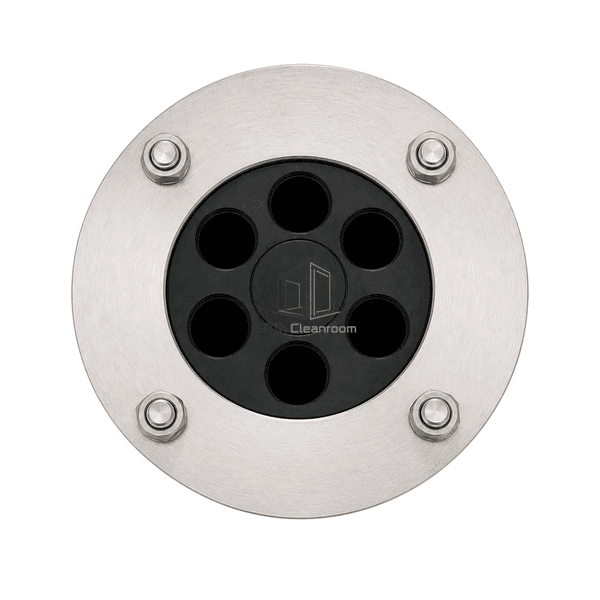

A multi-hole EPDM compression transit that organizes and seals several cables through one cleanroom wall opening.

Six Cable Passages
EPDM Compression Insert
Stainless Face Plates
Four-Point Clamping

Request a Quote Browse Products

Product Introduction

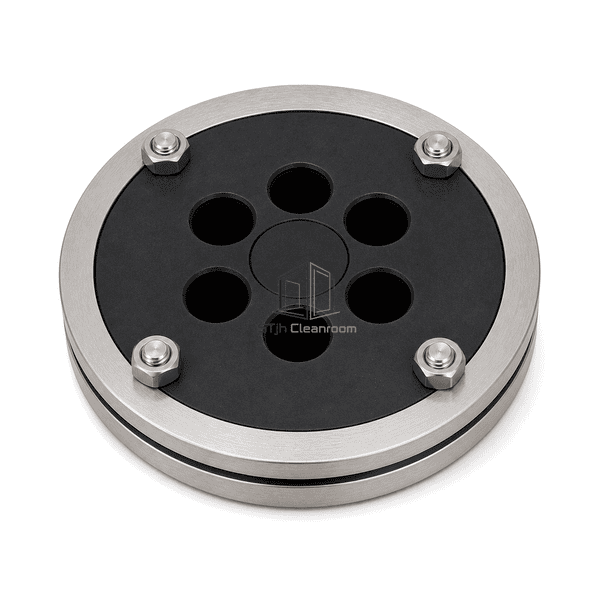

The cable penetration seal combines a molded six-hole EPDM insert with two circular stainless pressure plates and four perimeter fasteners. Tightening the plates compresses the elastomer around individual cable routes and against the surrounding opening. A solid center and defined passages keep multiple services organized while presenting smooth, accessible faces on the partition.

Key Features

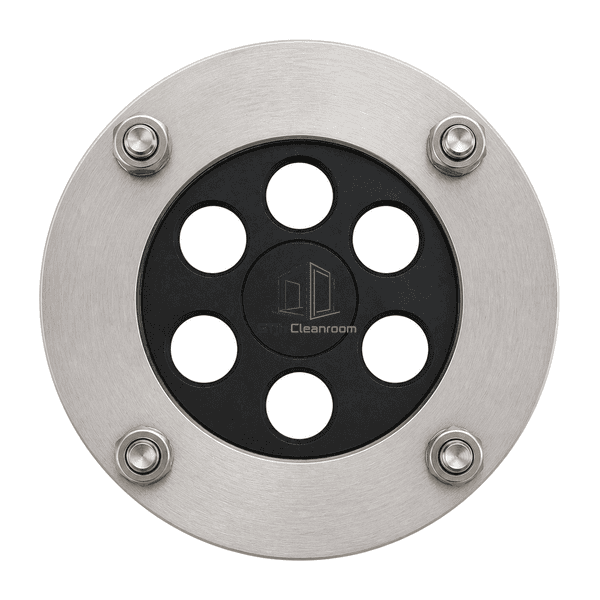

Six separate molded passages maintain spacing between cable routes.

Four-point plate compression loads the EPDM insert evenly.

A solid center preserves sealing material between adjacent openings.

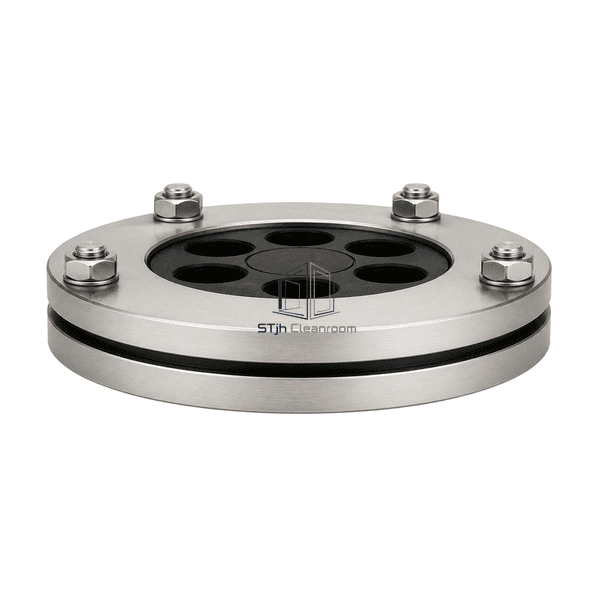

Stainless pressure plates protect the elastomer edges and provide clean exposed surfaces.

Customer Product Concerns

Multiple loose cables through one opening create irregular gaps, abrasion points and an untidy surface that is difficult to seal consistently.

Bundled cables leave uncontrolled air paths between conductors.Individual molded passages establish separate compression zones around each cable.

Sharp panel edges abrade cable jackets.The framed elastomer insert isolates cables from the cut opening.

Uneven tightening distorts the seal and leaves local gaps.Four evenly positioned fasteners distribute plate pressure across the insert.

Future cable changes are difficult with permanent potting compounds.The bolted assembly can be released for compatible cable replacement or insert servicing.

Typical Applications

Cleanroom instrumentation cablesControl wiring penetrationsSensor lead routingUtility-panel cable transitsEquipment service openings

Technical Parameters

Typical construction ranges for a circular multi-cable cleanroom compression seal are listed below.

Core Material	Molded black EPDM multi-hole insert with 304 or 316 stainless plates and fasteners
Panel Thickness	40-200 mm compatible wall or service-panel thickness
Effective Width	5-40 mm cable diameter per molded passage
Maximum Length	Up to 300 mm overall circular seal diameter
Steel Facing Thickness	2.00-5.00 mm stainless pressure-plate thickness
Core Density	Approximately 1100-1300 kg/m³ for EPDM
Thermal Conductivity	Approximately 0.20-0.30 W/(m·K) for EPDM
Surface Finish	Black molded elastomer with brushed or satin stainless face plates
Joint Type	Bolted axial compression of a multi-hole cable-sealing insert
Customization	Available based on the intended application and operating environment.

Available Options

Different hole countsMixed cable diametersEPDM or silicone insert304 or 316 stainless plates
