Cleanroom Doors, Windows and Interlock Systems

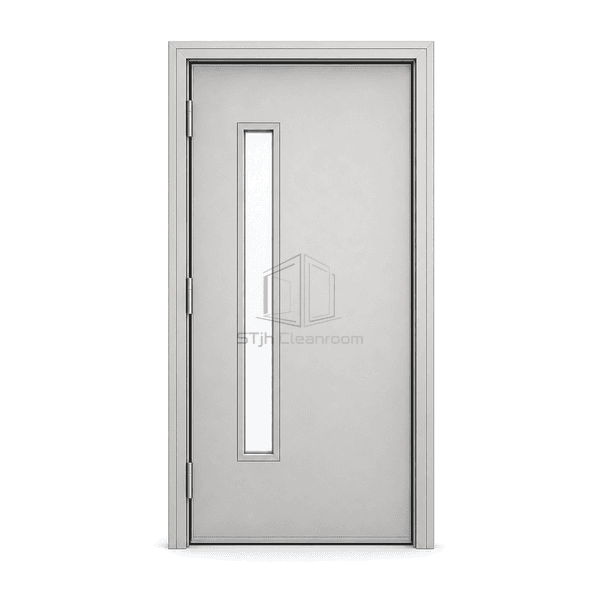

Aluminum Cleanroom Door
A lightweight cleanroom doorset built from aluminum skins, an aluminum honeycomb core and precision-extruded perimeter profiles for humid rooms and frequent manual operation.
- Lightweight Aluminum Leaf
- Corrosion-Resistant Construction

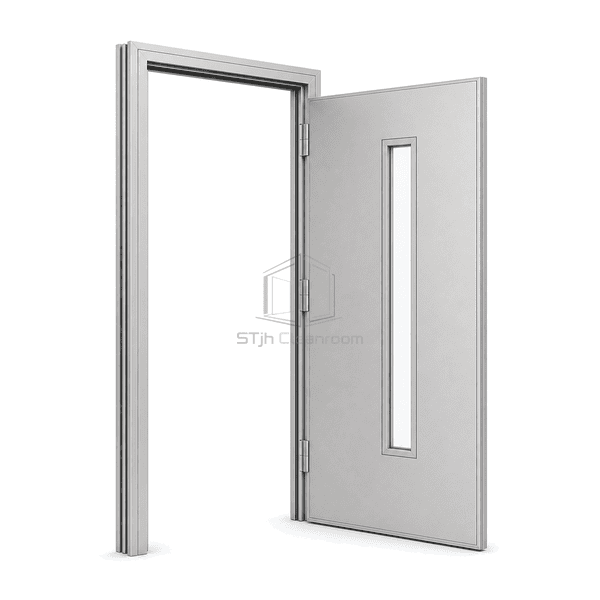

- Extruded Flush Perimeter
- Anodized or Powder-Coated Finish
Product Introduction
The Aluminum Cleanroom Door minimizes operating mass by combining thin aluminum faces with an aluminum honeycomb core. Extruded edge and frame profiles hold the leaf square while providing controlled gasket compression around the opening. The all-aluminum exterior is useful in humid interiors where unprotected carbon-steel edges could develop red rust, and the lower weight reduces stress on hinges during frequent personnel movement.
Key Features
Aluminum skins and edge profiles resist interior humidity without red rust.

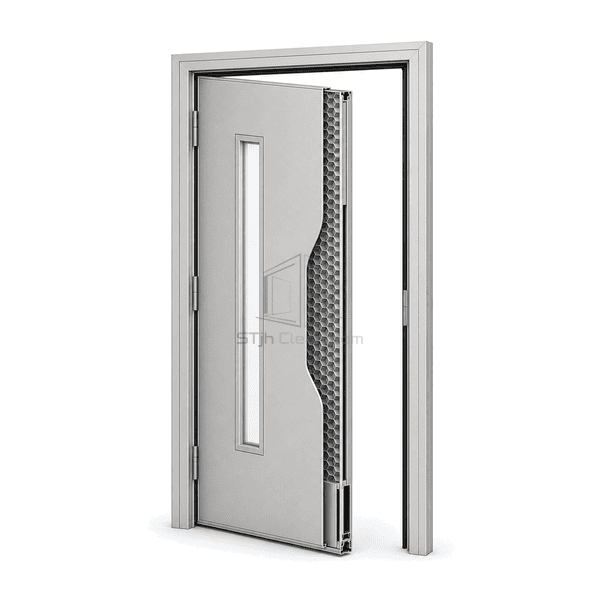

Honeycomb cells stabilize the panel while keeping the door balanced.

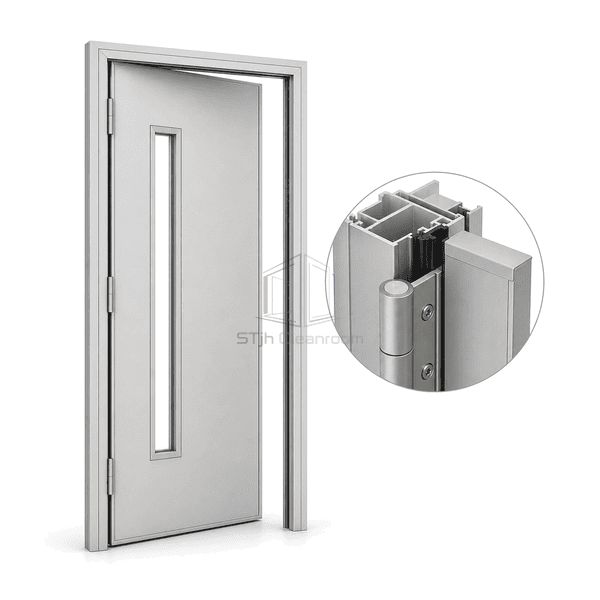

Extruded frame grooves retain replaceable gaskets without exposed clips.
Anodized or powder-coated surfaces can match adjacent cleanroom partitions.
Customer Product Concerns
Aluminum doors address operating weight and humidity, but must still provide a rigid leaf, clean joints and durable hardware fixing points.
Heavy metal doors become tiring during frequent manual passage.Aluminum skins and honeycomb reduce mass while retaining a full-size rigid leaf.
Carbon-steel cut edges corrode in persistently humid interiors.Aluminum perimeter construction removes exposed ferrous material from the room-side edge.
Light panels can loosen around locks and closers.Internal aluminum reinforcement plates provide solid fixing zones for concentrated hardware loads.
Loose stick-on seals detach during cleaning.Profiled gasket channels mechanically retain replaceable perimeter seals.
Typical Applications
Humid laboratory corridorsFood preparation clean areasElectronics assembly roomsPersonnel airlocksLight-duty healthcare clean spaces
Technical Parameters
Typical aluminum cleanroom door construction values are provided below.
| Core Material | Bonded aluminum honeycomb |
|---|---|
| Panel Thickness | 40-50 mm door leaf |
| Effective Width | 800-1200 mm single-leaf clear opening |
| Maximum Length | 2400 mm maximum leaf height |
| Steel Facing Thickness | 0 mm steel; 1.0-1.2 mm aluminum leaf skins |
| Core Density | 40-70 kg/m³ aluminum honeycomb |
| Thermal Conductivity | 0.06-0.10 W/(m·K) typical honeycomb core range |
| Surface Finish | Satin anodized aluminum or polyester powder coating |
| Joint Type | Extruded aluminum rebated frame with replaceable EPDM perimeter gasket |
| Customization | Available based on the intended application and operating environment |
Available Options
Natural satin anodized finishPowder-coated RAL coloursFlush vision panelAutomatic drop seal
Planning a Aluminum Cleanroom Door specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
