Cleanroom Doors, Windows and Interlock Systems

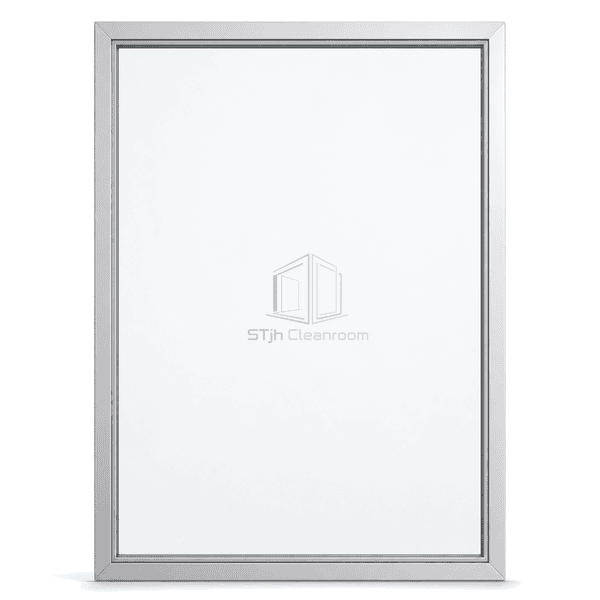

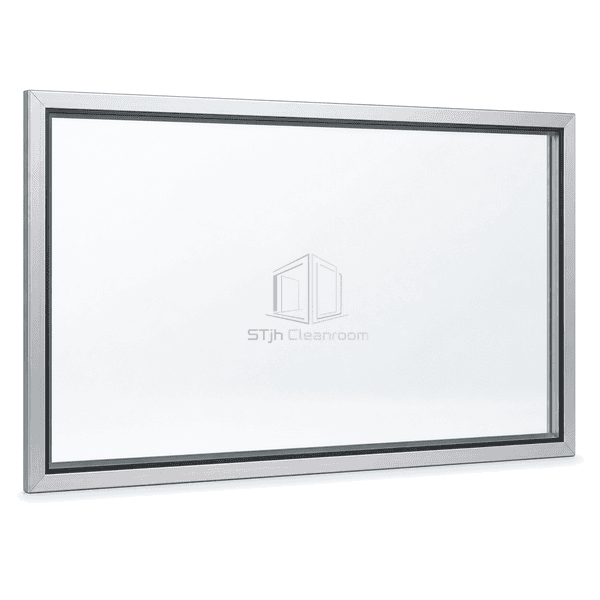

Tempered Safety Glass Cleanroom Window
A fixed observation window centered on heat-treated tempered safety glass, providing clear process visibility and improved resistance to accidental human impact.
- Heat-Treated Safety Glass
- Clear High-Visibility Pane
- Finished Glass Edges
- Sealed Hygienic Mounting
Product Introduction
This window specifies tempered safety glass as the primary performance feature. The pane is cut, edge-worked and drilled before heat treatment, then installed in a cleanroom frame with continuous resilient support. Tempered glass offers substantially greater strength than ordinary annealed glass of the same thickness and breaks into small fragments rather than large sharp shards. It is suited to doorside observation zones, personnel routes and larger internal panes where accidental impact is a design concern.
Key Features
Safety-fracture behavior reduces the risk associated with large sharp glass pieces after breakage.
Clear low-distortion glazing maintains direct operator sightlines through controlled-area partitions.

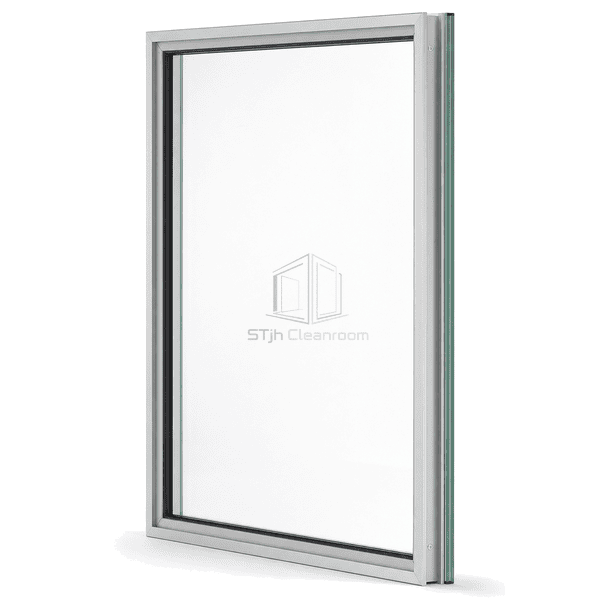

Continuous gasket or silicone support avoids hard point loading at the pane edge.
Customer Product Concerns
Safety glazing must be specified at the correct thickness and supported uniformly because all cutting and edge work must be completed before tempering.
Ordinary glass is vulnerable to accidental contact from carts or personnel.Tempered safety glass provides greater impact strength than annealed glass of the same thickness.

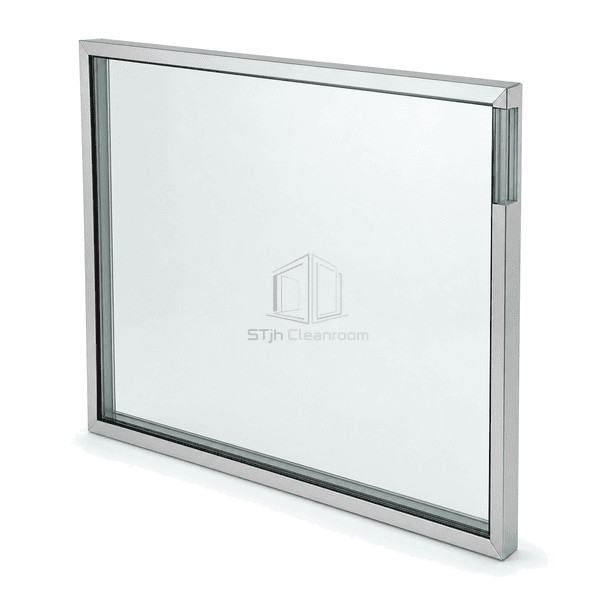

Edge damage during installation can initiate later glass failure.Finished edges, setting blocks and continuous resilient glazing keep the pane away from hard metal contact.
Late field drilling or trimming is requested after the opening changes.The pane is manufactured to final dimensions before tempering, with the frame adjusted rather than cutting the finished glass.
Typical Applications
Cleanroom personnel corridorsDoor-adjacent observation panelsLaboratory viewing partitionsMedical-device production rooms
Technical Parameters
Common tempered-glass and cleanroom-frame ranges are listed below; final pane thickness depends on size and support conditions.
| Core Material | Clear heat-treated tempered soda-lime safety glass |
|---|---|
| Panel Thickness | 6, 8, 10 or 12 mm glass; thicker panes available for larger openings |
| Effective Width | 300–2000 mm clear viewing width |
| Maximum Length | 3000 mm typical cleanroom-window height |
| Steel Facing Thickness | 1.0–1.5 mm for optional stainless frame; 0 mm for aluminum frame |
| Core Density | Approximately 2500 kg/m³ |
| Thermal Conductivity | Approximately 1.0 W/(m·K) |
| Surface Finish | Clear polished glass with ground or polished safety edges and optional ceramic-frit border |
| Joint Type | Four-side supported fixed glazing with EPDM gasket or neutral-cure structural silicone |
| Customization | Available based on the intended application and operating environment |
Available Options
Low-iron tempered glassHeat-soaked tempered glassCeramic-frit privacy borderSingle or double-glazed assembly
Planning a Tempered Safety Glass Cleanroom Window specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
