Cleanroom Furniture and Stainless Steel Products
Stainless Steel Cleanroom Pallet

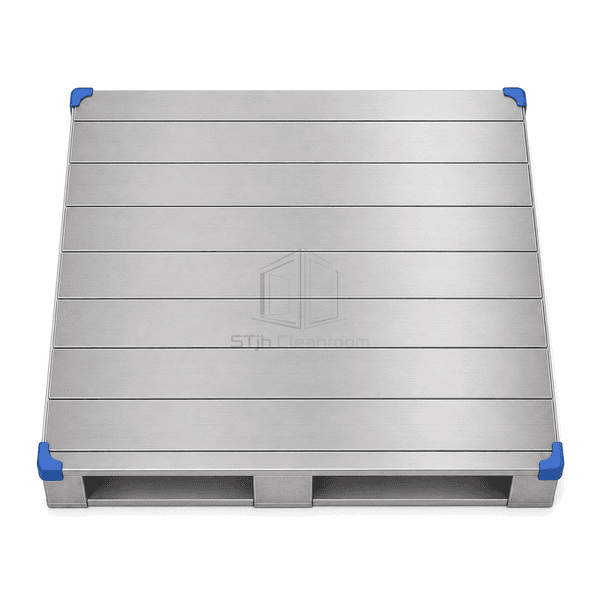

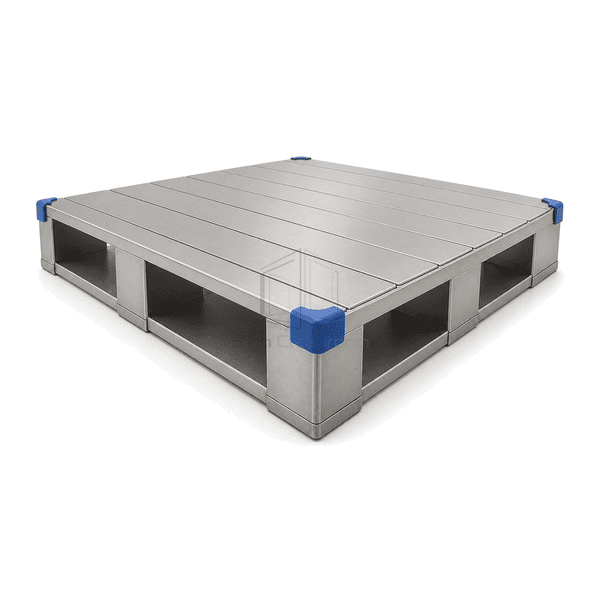

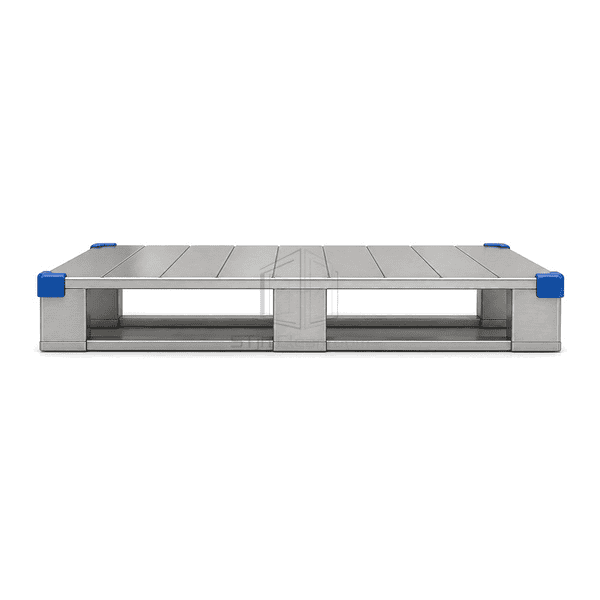

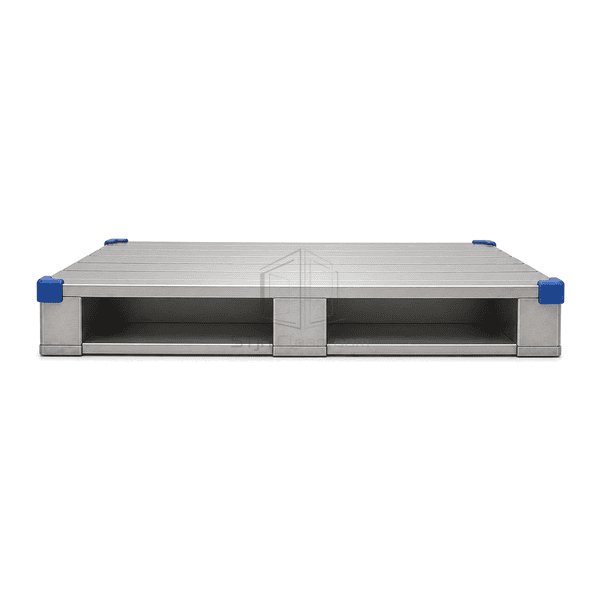

A formed Type 304 stainless four-way cleanroom pallet with a closed slatted deck, sealed box runners, reinforced fork openings and replaceable blue corner protectors.
- Four-way fork entry
- Closed formed deck slats
- Sealed stainless runners
- Replaceable blue corner guards
Product Introduction
The stainless steel cleanroom pallet replaces porous timber and corroding painted steel under bulk material loads. Formed Type 304 deck slats interlock into a continuous upper surface with narrow drainage seams rather than open wood-style boards. Three sealed box runners carry the load and provide full-length two-way entry, while reinforced notches through the outer runners create cross-entry for pallet forks. Cobalt-blue replaceable protectors cover the four impact-prone corners without obscuring the stainless deck or fork pockets.
Key Features
Three sealed box runners avoid open hollow sections along the pallet underside.
Reinforced cross-entry notches create four-way fork access without cutting through an unsupported skin.
Blue replaceable corner guards identify impact points and protect door jambs during transfer.
Customer Product Concerns
A reusable cleanroom pallet must tolerate cleaning, remain closed against debris and accept common fork directions without the pores or coatings associated with conventional pallets.
Timber fibres and damaged fasteners enter the controlled material route.The pallet uses formed stainless deck members and welded runners without wood or exposed nails.
Open tubular ends retain wash water and hide residue.All box runners terminate with continuously welded stainless closure plates.
Two-way pallets force lift trucks to approach from a constrained aisle direction.Reinforced side notches combine with full runner openings to provide four-way entry.
Bare metal corners damage cleanroom doors during repeated handling.Four cobalt-blue replaceable corner guards form controlled non-marking impact points.
Typical Applications
Pharmaceutical material stagingClean food ingredient logisticsMedical-device bulk component transferControlled warehouse palletizingWashdown cleanroom material handling
Technical Parameters
Typical configurable specifications for a formed four-way Type 304 cleanroom pallet are listed below.
| Core Material | Formed Type 304 stainless deck slats and sealed runners with cobalt-blue replaceable polyurethane corner guards |
|---|---|
| Panel Thickness | 0.8 mm formed deck slats with 1.5 mm reinforcement sections |
| Effective Width | 1100 mm nominal pallet width |
| Maximum Length | 1100 mm nominal pallet length |
| Steel Facing Thickness | 0.8 mm Type 304 deck skin; 1.5 mm runner and fork-pocket reinforcement |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless components |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless components |
| Surface Finish | Uniform satin-brushed stainless load surface with passivated welds and cobalt-blue corner guards |
| Joint Type | Mechanically interlocked formed deck slats welded to three sealed runners with reinforced four-way fork pockets |
| Customization | Available based on the intended application and operating environment. |
Available Options
1200 × 1000 mm footprintType 316L constructionPerforated drainage deckConductive corner protectors
Planning a Stainless Steel Cleanroom Pallet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
