Powder Dispensing Isolator

A negative-pressure glovebox configured for closed powder weighing, subdivision and transfer with an isolated balance and contained waste route.

Closed Powder Dispensing
Isolated Balance Support
Negative-Pressure Chamber
Contained Material and Waste Ports

Request a Quote Browse Products

Product Introduction

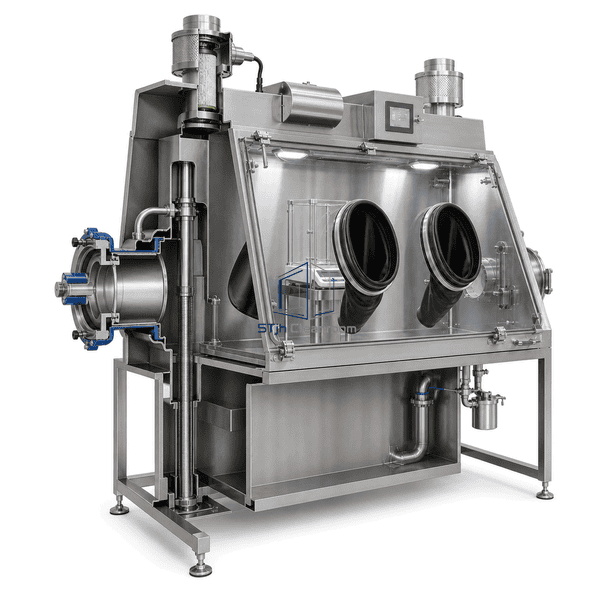

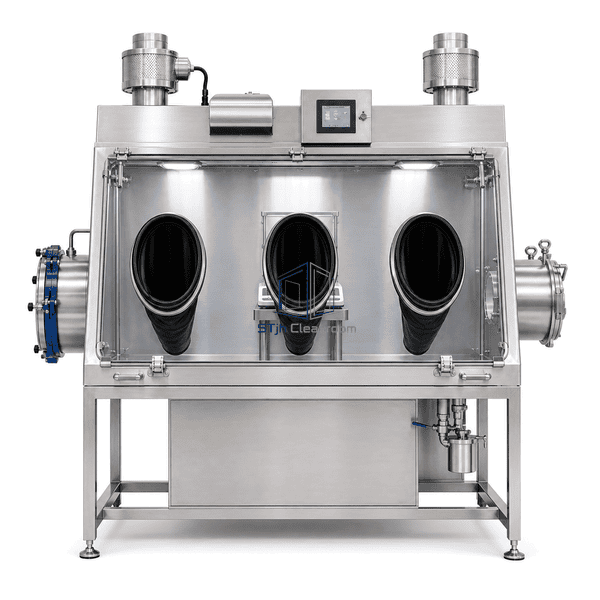

This isolator encloses powder dispensing inside a welded stainless chamber. Operators work through glove ports, material enters through a transfer airlock or bag interface, and measured powder leaves through a sealed receiving connection. The balance sits on a structurally independent support to reduce blower and floor vibration. Negative chamber pressure and staged filtration keep airborne powder within the system, while empty packaging exits through a separate contained route.

Key Features

A closed glovebox removes the open-front boundary from powder subdivision.

An isolated internal balance slab protects weighing stability.

Dedicated inlet and outlet interfaces separate source and receiving containers.

Negative pressure directs leakage inward toward staged filters.

A continuous liner or bag-out port contains empty packaging and cleaning waste.

Customer Product Concerns

Closed dispensing must preserve accurate weighing while routing source material, product and waste through different contained interfaces.

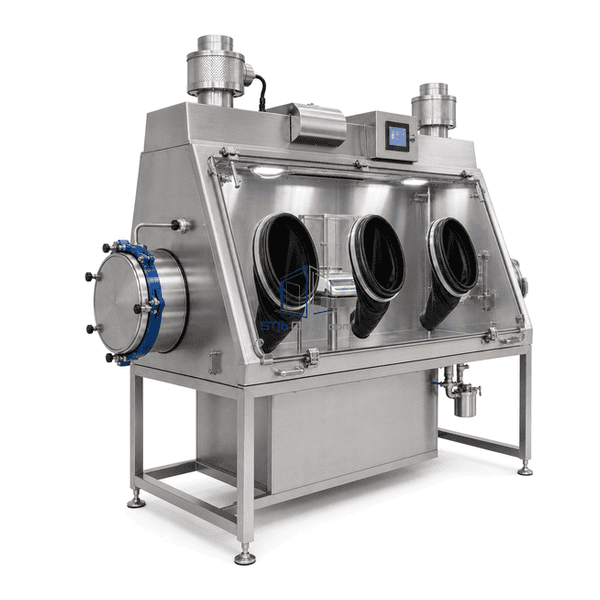

Fan vibration causes unstable balance readings.An independent balance support passes through the isolator base without sharing the fan frame.

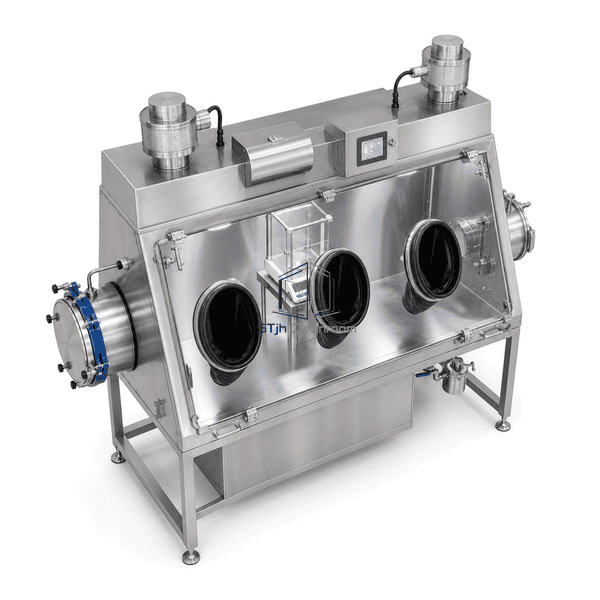

Source and receiving containers cross inside a small chamber.Separate inlet, dispensing and outlet positions create a one-way material sequence.

Empty liners carry residue into the room.A dedicated continuous-liner or bag-out port encloses packaging waste.

Powder remains at sharp internal joints.Welded radiused stainless transitions keep cleaning surfaces accessible.

Typical Applications

Potent powder dispensingAPI subdivisionContained sample weighingPre-weighed batch preparation

Technical Parameters

Typical configurable construction ranges for a powder dispensing isolator are listed below.

Core Material	Fully welded SUS316L negative-pressure chamber with safety glass, CSM gloves and an isolated balance support
Panel Thickness	50-100 mm double-skin chamber and filter sections
Effective Width	1200-3000 mm usable dispensing width
Maximum Length	Up to 4500 mm overall isolator length
Steel Facing Thickness	2.0-3.0 mm SUS316L chamber shell; 1.2-1.5 mm service skins
Core Density	Approximately 8000 kg/m³ for SUS316L chamber material
Thermal Conductivity	14-16 W/(m·K) for austenitic stainless steel
Surface Finish	Electropolished SUS316L with radiused corners and removable balance surround
Joint Type	Pressure-tight welded chamber with sealed glove rings, isolated balance penetration and contained transfer ports
Customization	Available based on the intended application and operating environment.

Available Options

Continuous liner or split valveIntegrated drum or bag inletSafe-change filtersWash-in-place spray devices
