Industry-Specific Cleanroom Equipment

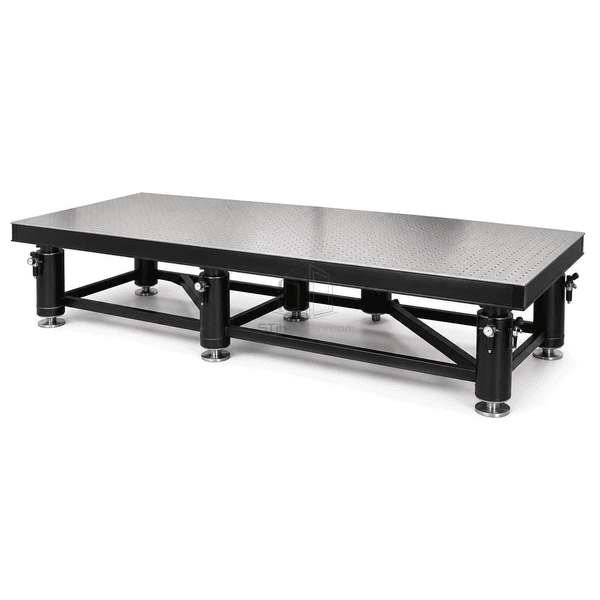

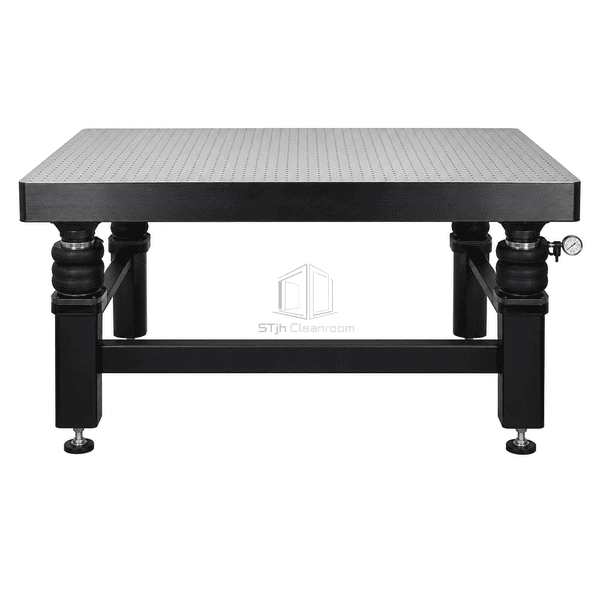

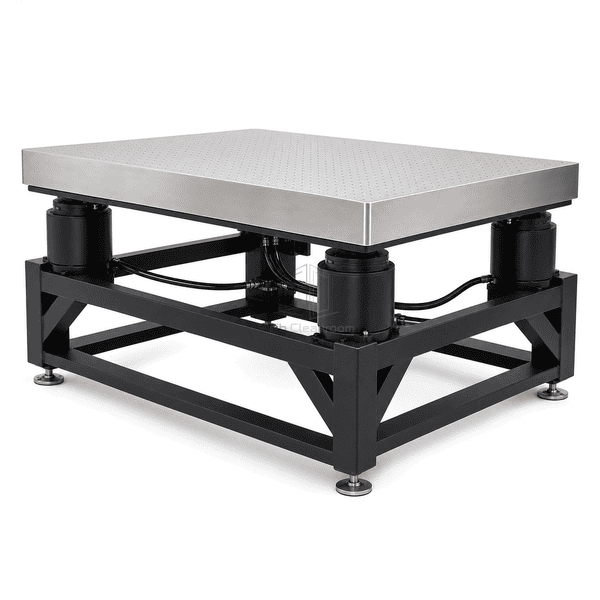

Optical Vibration Isolation Table
A damped steel-honeycomb optical table supported by pneumatic isolators to provide a stable precision platform for photonics, microscopy and metrology systems.
- Damped Honeycomb Core
- Precision Mounting Grid
- Pneumatic Isolation
- Self-Leveling Support
Product Introduction

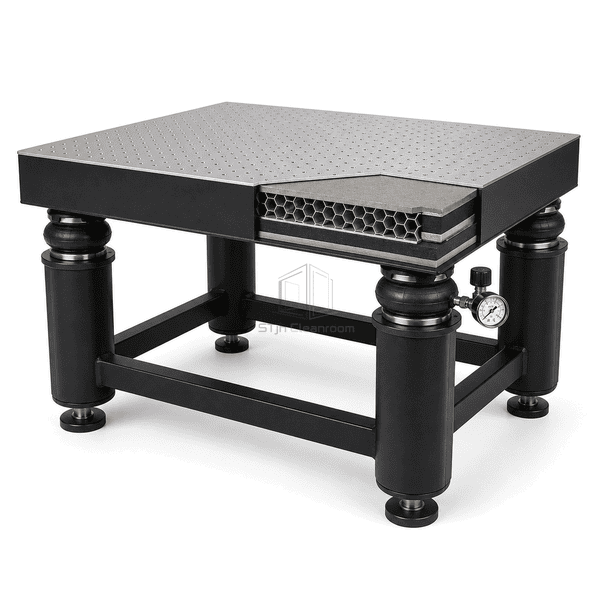

The optical vibration isolation table combines a rigid steel honeycomb top with a precision stainless mounting surface and pneumatic supports. Internal constrained-layer damping limits structural resonance, while isolator legs reduce floor-borne vibration before it reaches sensitive optical assemblies. A sealed threaded-hole grid, rigid support frame and adjustable leveling hardware provide a practical foundation for clean laboratory and controlled manufacturing environments.
Key Features
Precision threaded-hole grid supports repeatable instrument positioning across the working surface.
Pneumatic isolators attenuate common vertical and horizontal floor vibration.
Mechanical leveling feet and optional automatic valves maintain stable working height.
Customer Product Concerns
Sensitive optical systems lose alignment and measurement repeatability when floor motion or tabletop resonance reaches the instrument path.
Building vibration introduces motion into high-magnification measurements.Pneumatic isolators attenuate floor-borne vibration before it reaches the tabletop.
A lightly damped surface rings after equipment adjustments.Honeycomb construction and constrained damping reduce structural response across relevant frequencies.
Inaccurate mounting patterns complicate optical alignment.A precision M6 grid provides consistent reference spacing for fixtures and stages.
Uneven floors cause tilt and isolator load imbalance.Independent leveling feet and optional self-leveling valves balance the installed system.
Typical Applications
Laser and photonics experimentsPrecision microscopy and imagingSemiconductor metrologyInterferometry and optical alignment
Technical Parameters
Typical construction values for a cleanroom-compatible optical vibration isolation table are listed below.
| Core Material | Vertically bonded closed-cell steel honeycomb with constrained damping layers |
|---|---|
| Panel Thickness | 100-460 mm tabletop thickness |
| Effective Width | 900-1800 mm working width |
| Maximum Length | Up to 4800 mm tabletop length |
| Steel Facing Thickness | 4.8 mm ferromagnetic stainless steel working surface |
| Core Density | 180-320 kg/m³ effective steel honeycomb core density |
| Thermal Conductivity | 14-17 W/(m·K) for stainless working surface |
| Surface Finish | Matte precision-ground stainless steel top with sealed threaded mounting holes |
| Joint Type | Bonded honeycomb sandwich top mounted on pneumatic isolators with bolted frame braces and adjustable leveling feet |
| Customization | Available based on the intended application and operating environment. |
Available Options
M6 or 1/4-20 mounting gridPassive or self-leveling pneumatic isolatorsTuned or active damping modulesCustom tabletop dimensions and cleanroom finishes
Planning a Optical Vibration Isolation Table specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
