Mobile Sampling Booth

A self-contained wheeled downflow booth that brings a controlled powder-sampling zone to drums, bags or containers in changing warehouse locations.

Move-to-Material Format
Self-Contained Downflow
Lockable Stabilizing Casters
Contained Filter Service Option

Request a Quote Browse Products

Product Introduction

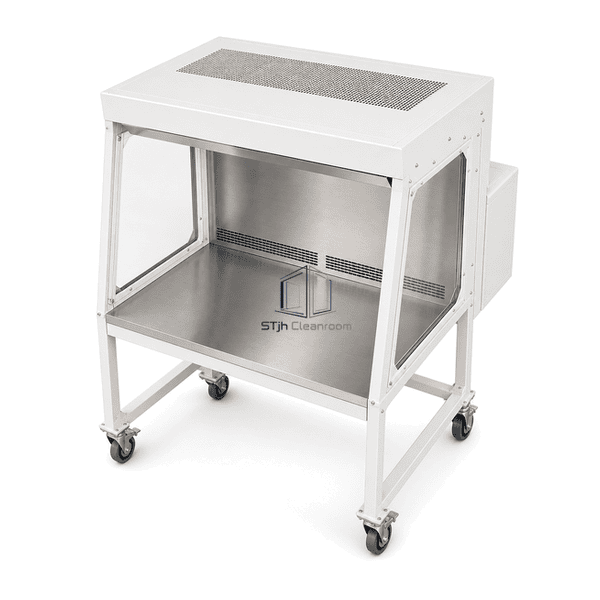

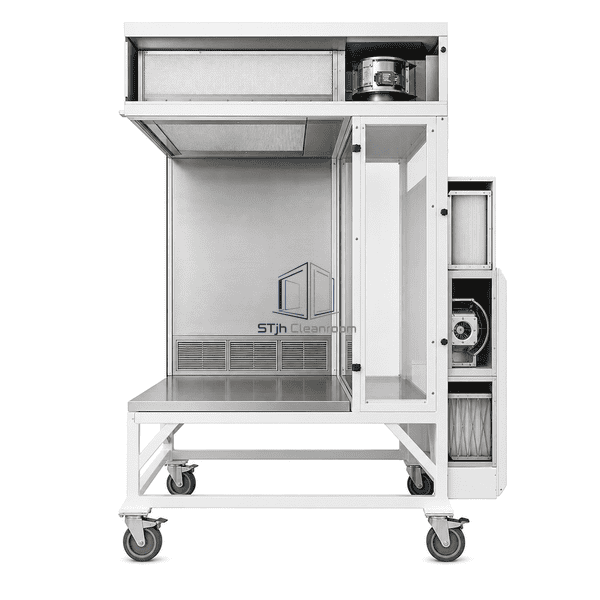

The mobile sampling booth combines a compact supply plenum, low return wall and filtered recirculation path on a reinforced wheeled base. It can be positioned around a drum or sampling table, stabilized with caster brakes and connected to facility power at the selected location. Clear side panels preserve visibility around warehouse traffic, while the rear return wall draws released powder away from the operator. The enclosure is relocated only after the sampling area has been closed and cleaned.

Key Features

A compact wheeled chassis brings the sampling zone to stored raw materials.

Low rear grilles collect powder near the container opening.

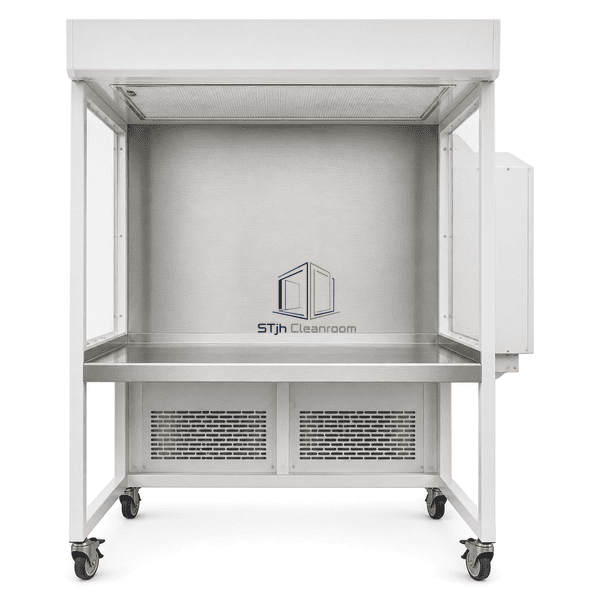

Clear side panels show adjacent warehouse traffic without opening the work zone.

Outriggers or leveling pads stabilize the booth during sampling.

Contained filter bags can reduce exposure when dusty prefilters are removed.

Customer Product Concerns

Warehouse sampling changes location frequently, but the airflow boundary and booth stability must remain repeatable around each container.

Materials are stored too far apart for a fixed sampling room.The compact booth rolls to the selected container location.

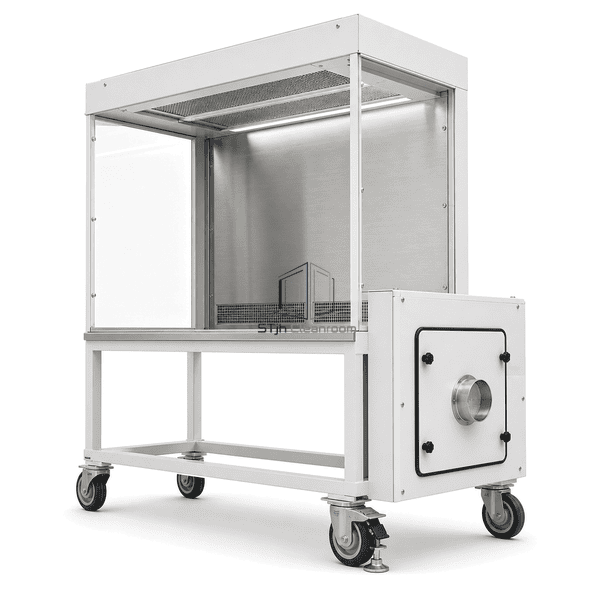

Caster movement changes the booth position during sampling.Four brakes and adjustable stabilizers lock the chassis after alignment.

Warehouse cross-traffic disturbs the open sampling face.Clear side screens and controlled inward airflow shield the active container.

Dusty filters must be carried through the warehouse.An optional contained change collar encloses the filter before removal.

Typical Applications

Warehouse drum samplingIncoming raw-material checksBagged powder samplingTemporary subdivision tasks

Technical Parameters

Typical configurable construction ranges for a mobile raw-material sampling booth are listed below.

Core Material	SUS304 work-zone liner on a powder-coated steel mobile frame with mineral-wool plenum insulation
Panel Thickness	50-75 mm insulated supply and return panels
Effective Width	1200-2500 mm clear sampling width
Maximum Length	Up to 3000 mm overall mobile booth depth
Steel Facing Thickness	1.0-1.2 mm SUS304 inner facing; 0.8-1.0 mm coated outer steel
Core Density	80-120 kg/m³ mineral-wool infill
Thermal Conductivity	0.035-0.045 W/(m·K) for the mineral-wool infill
Surface Finish	Brushed SUS304 work zone with white powder-coated mobile exterior
Joint Type	Sealed modular panels on a welded caster chassis with gasketed filter access doors
Customization	Available based on the intended application and operating environment.

Available Options

Battery or facility-power configurationRigid clear side panelsIntegrated sampling tableBag-in/bag-out filter change
