Cleanroom Wall and Ceiling Systems
HPL-Faced Cleanroom Wall Panel
A rigid modular wall panel finished with compact high-pressure laminate, providing a hard, scratch-resistant and chemically tolerant surface for laboratories, healthcare rooms and high-contact clean environments.
- Compact HPL Surface
- Scratch-Resistant Wall Face
- Broad Color Selection
- Protected Flush Edges
Product Introduction

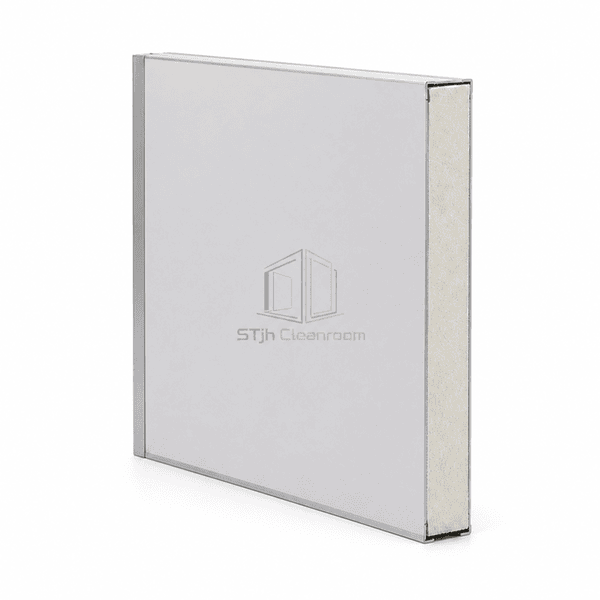

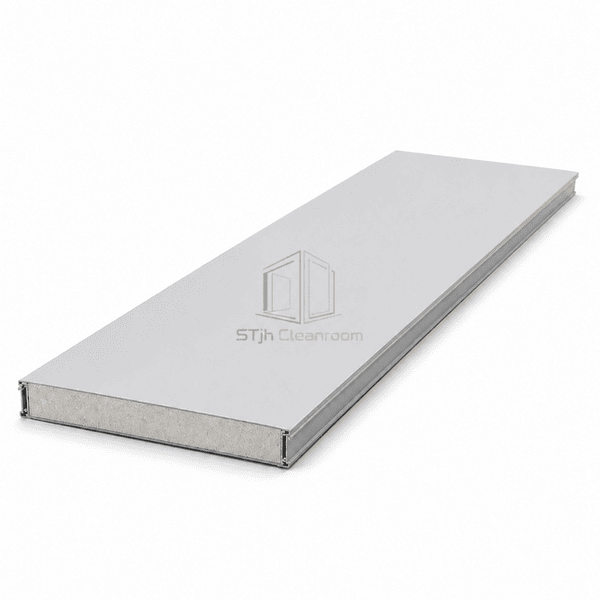

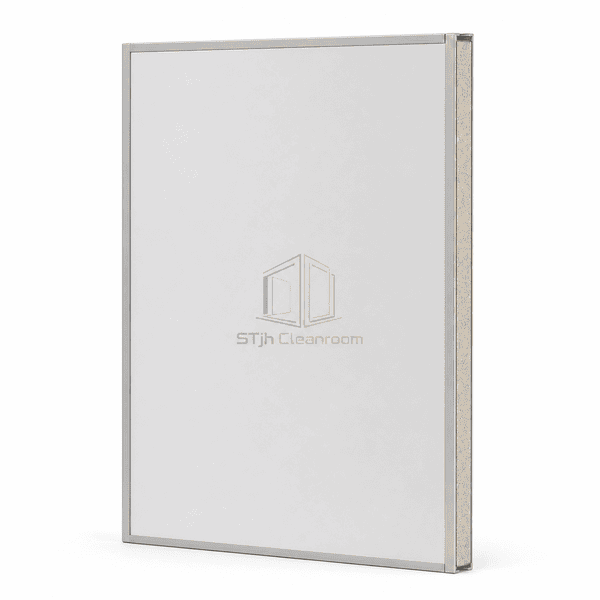

HPL-Faced Cleanroom Wall Panels use compact high-pressure laminate as the visible room surface over a rigid framed sandwich substrate. Thermoset resins and compressed kraft layers give HPL a hard, non-porous face that withstands abrasion and many commonly used laboratory cleaners. The thicker decorative layer also hides small substrate imperfections better than thin painted steel. Aluminum perimeter profiles protect cut edges, align modules and receive a continuous hygienic seal. This panel is intended primarily for walls and partitions where impact durability and finish choice are important.
Key Features
Color-through or decorative sheets offer a wide visual range without exposed porous material.
The non-porous laminate face supports routine wiping and spill removal.

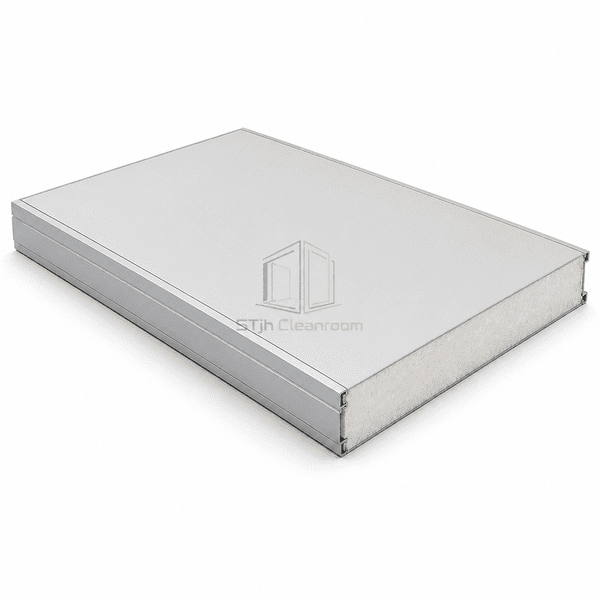

Aluminum edge profiles protect the laminate from chipping at panel joints.
Rigid framed construction allows damaged wall modules to be replaced individually.
Customer Product Concerns
Correct HPL selection depends on chemical exposure, edge protection, scratch duty and the support provided by the substrate.
Thin painted skins show scratches quickly in trolley and equipment routes.A thicker HPL surface resists routine scuffing and retains a consistent decorative finish.
Unprotected laminate edges can chip or absorb liquid after impact.Closed aluminum profiles shield cut edges and keep cleaning fluids away from the substrate.
Not every HPL grade tolerates every solvent or disinfectant.The exposed laminate grade is matched to the actual chemical list and contact duration.
A flexible backing makes hard laminate sound hollow and crack around fittings.Continuous rigid support and local inserts stabilize the facing around mounted accessories.
Typical Applications
Laboratory wet and dry roomsHealthcare clean corridorsPharmaceutical support spacesFood quality-control roomsHigh-contact cleanroom partitions
Technical Parameters
Typical HPL-faced cleanroom wall panel construction ranges are shown below.
| Core Material | Rock wool or aluminum honeycomb in a four-sided frame |
|---|---|
| Panel Thickness | 50, 75 or 100 mm |
| Effective Width | 1000, 1180 or 1200 mm |
| Maximum Length | 6000 mm |
| Steel Facing Thickness | 0.50 mm galvanized steel backing beneath 4–6 mm HPL |
| Core Density | 100–140 kg/m³ rock wool or approximately 27 kg/m³ aluminum honeycomb |
| Thermal Conductivity | 0.040–0.150 W/(m·K), depending on the selected core |
| Surface Finish | Compact HPL meeting EN 438 or ISO 4586 surface requirements |
| Joint Type | Aluminum-framed flush joint with hygienic sealant |
| Customization | Available based on the intended application and operating environment |
Available Options
Chemical-resistant laboratory HPLAntibacterial HPL surfaceRock wool or aluminum honeycomb coreCustom color and texture
Planning a HPL-Faced Cleanroom Wall Panel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
