H-Type Cleanroom Panel Connecting Profile

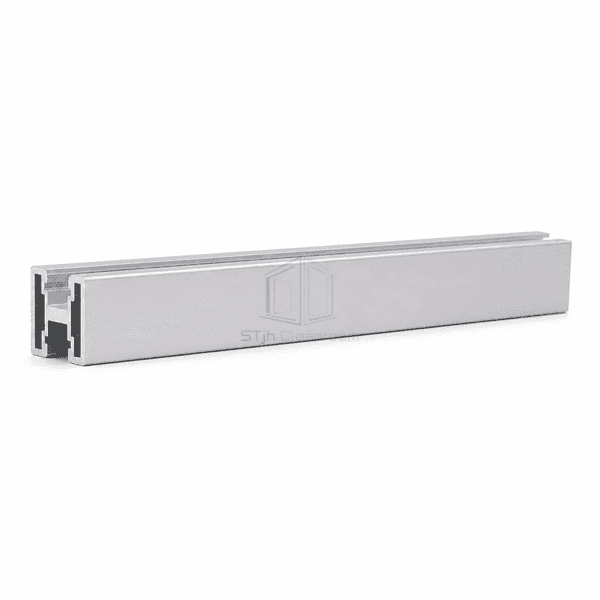

An extruded aluminum H-section that receives two opposing cleanroom panels and maintains a straight, protected joint along a modular wall or ceiling run.

Opposed channels for two panel edges
Straight in-plane modular connection
Compatible with multiple panel thicknesses
Sealable exposed joint boundaries

Request a Quote Browse Products

Product Introduction

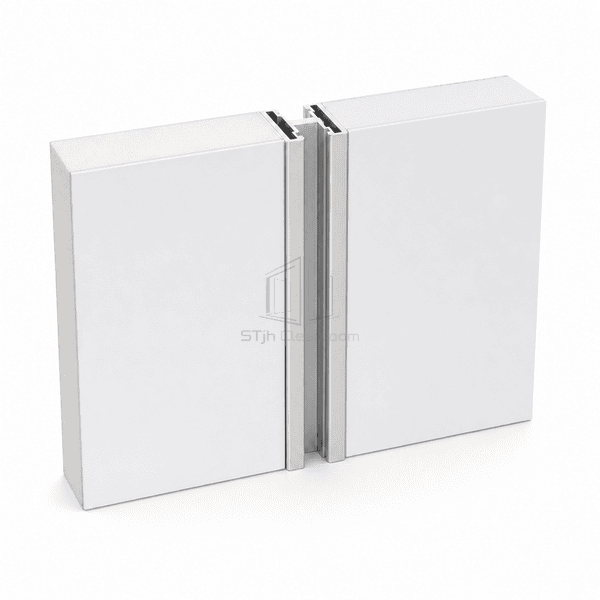

The H-Type Cleanroom Panel Connecting Profile joins two sandwich panels edge to edge in the same plane. Its opposed channels locate both panel ends, cover exposed core edges and establish a repeatable joint width. The aluminum section can be used in straight wall runs, ceiling infill and removable service bays where a defined mechanical connection is preferred over a tongue-and-groove-only joint.

Key Features

Twin opposed channels align neighboring panels along a common centerline.

The H-section conceals both cut edges and limits direct exposure of the panel core.

A continuous visible face creates a deliberate architectural joint.

Multiple channel sizes accommodate common cleanroom panel thicknesses.

Straight perimeter lands support controlled sealant application on both sides.

Customer Product Concerns

An in-line panel joint must keep two large panels aligned while protecting their edges and maintaining a sealable interface.

Independent panel ends can step out of plane and create a visible ridge.Opposed channels hold both edges against one shared extruded connector.

Cut sandwich-panel cores remain exposed at butt joints.The H-shaped profile encloses both ends within dedicated receiving channels.

A freehand butt joint varies in width over the height of a wall.The fixed extrusion geometry maintains a consistent center joint from end to end.

Replacing one service panel can disturb the neighboring wall module.A defined connector profile separates the panel interfaces and supports modular removal strategies.

Typical Applications

Straight modular cleanroom wall runsCeiling panel connectionsReplaceable service-bay infill panelsControlled-environment partition extensionsConnections between compatible panel modules

Technical Parameters

Channel dimensions are selected to suit the connected sandwich-panel thickness. Thermal values for an insulated panel do not describe this solid aluminum joining component.

Core Material	6063-T5 extruded aluminum H-section
Panel Thickness	50, 75, 80, 100 or 150 mm compatible variants
Effective Width	50 mm typical visible joint face
Maximum Length	6000 mm
Steel Facing Thickness	N/A — the connector is an aluminum extrusion
Core Density	N/A — no insulated core; aluminum alloy density is approximately 2700 kg/m³
Thermal Conductivity	N/A — no insulated core; aluminum alloy is approximately 200 W/(m·K)
Surface Finish	Electrostatic powder-coated or clear anodized aluminum

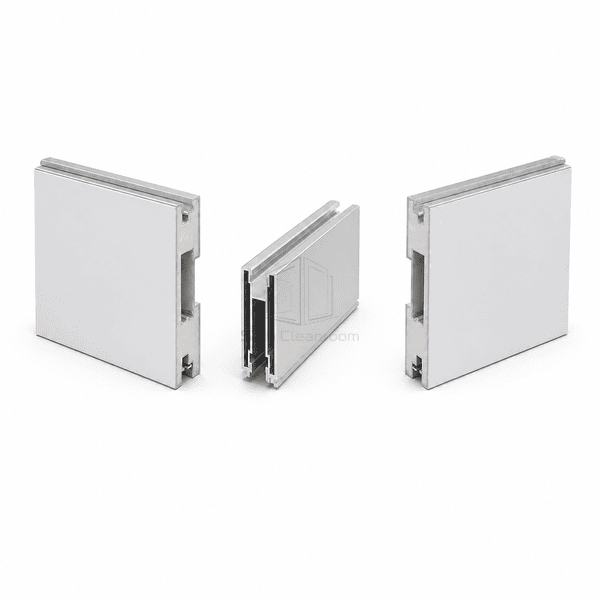

Joint Type	Twin opposed H-channels with sealant-ready panel interfaces
Customization	Available based on the intended application and operating environment

Available Options

H-profile for 50 mm panelsH-profile for 75 or 80 mm panelsH-profile for 100 or 150 mm panelsAnodized or powder-coated exposed finish
