Laminar Flow and Containment Equipment
Continuous Liner Discharge System
A long folded film liner mounted on a discharge canister so multiple contained bags can be filled, closed and removed without exposing the outlet.
- Long Continuous Film Sleeve
- Multi-Groove Canister
- Repeated Tie-Off Discharge
- Contained Bag Removal
Product Introduction

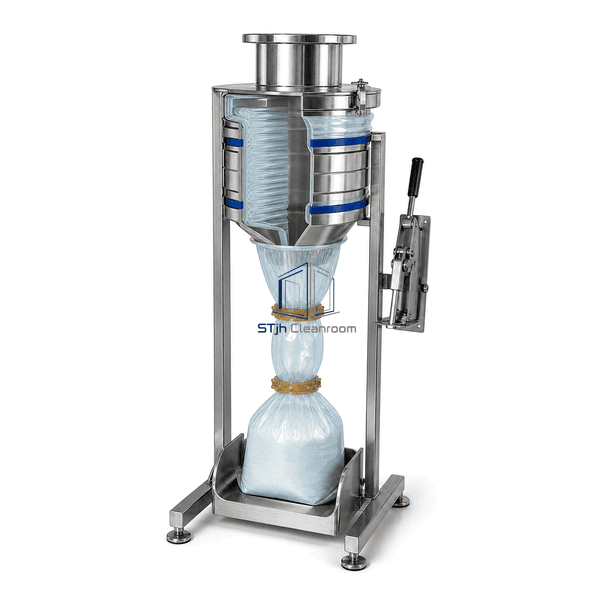

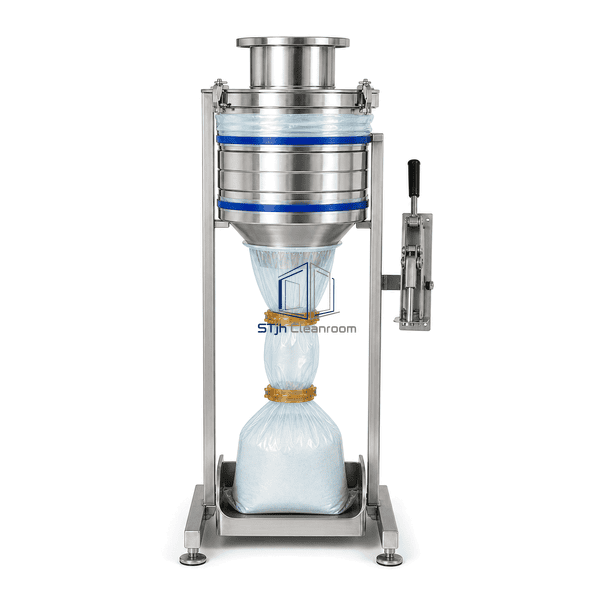

The continuous liner system fits beneath an isolator, dust collector, hopper or other discharge point. A long tubular film sleeve is folded onto a grooved stainless canister. Product or waste fills the extended lower section, which is closed with crimps or ties and cut between closures. The remaining liner is then pulled down to form the next bag while the outlet stays covered. Canister diameter, film material and liner length are selected for the product, load and disposal method.
Key Features

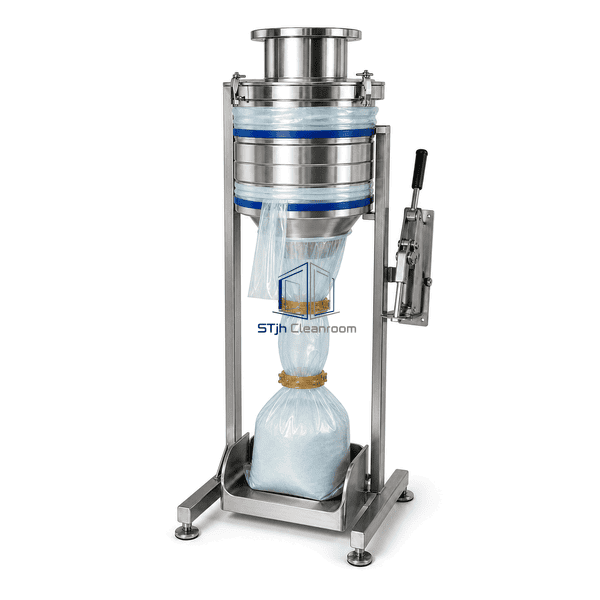

Multiple canister grooves secure the active liner and retained bag stub.

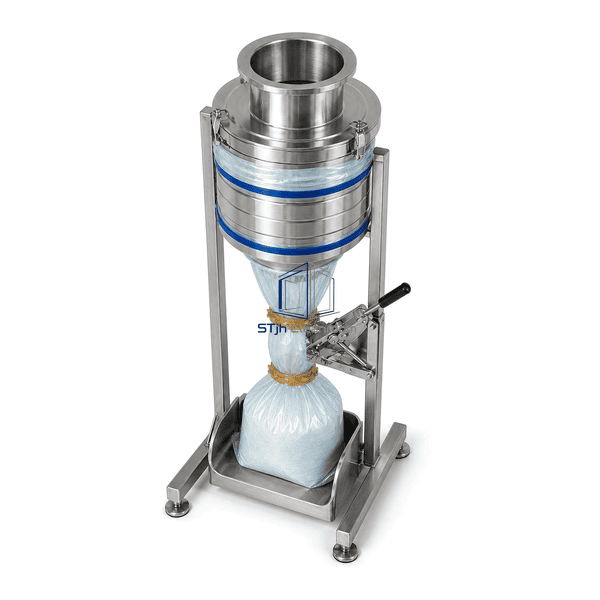

Crimp or tie-off tools create two closures before the filled section is cut away.
The liner can attach to rigid isolators, flexible enclosures or dust hoppers.
Different film formulations support antistatic, strength or compatibility needs.
Customer Product Concerns
Each filled bag must be removed without leaving the process outlet or contaminated bag stub exposed to the operator.
Removing one bag exposes the hopper outlet.The continuous sleeve remains over the canister while the filled lower section is cut away.
A single closure can open after cutting.Two crimps or ties create separated closed ends before division.
Film slides from the outlet under load.A multi-groove canister and retaining bands secure the folded liner.
One liner material is unsuitable for every powder.Film chemistry, thickness and antistatic properties are selected for the actual use.
Typical Applications
Powder waste dischargeTablet or component offloadingIsolator bag-outDust-collector hopper emptying
Technical Parameters
Typical configurable construction ranges for a continuous liner discharge system are listed below.
| Core Material | SUS316L multi-groove discharge canister with multilayer polyethylene containment liner and stainless retaining bands |
|---|---|
| Panel Thickness | 0.10-0.25 mm liner film thickness |
| Effective Width | 350-600 mm flattened liner width |
| Maximum Length | Up to 45000 mm continuous liner length |
| Steel Facing Thickness | 2.0-4.0 mm SUS316L canister wall |
| Core Density | 920-960 kg/m³ for multilayer polyethylene liner film |
| Thermal Conductivity | 0.33-0.50 W/(m·K) for polyethylene liner film |
| Surface Finish | Electropolished stainless canister with smooth clear or antistatic containment film |
| Joint Type | Multi-groove canister with elastic retainers, double-crimp closure and replaceable continuous film sleeve |
| Customization | Available based on the intended application and operating environment. |
Available Options
200 or 300 mm canister interfaceClear or antistatic filmManual crimp and removal toolsDrum support and bag handling frame
Planning a Continuous Liner Discharge System specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
