Cleanroom Garments, PPE and Consumables

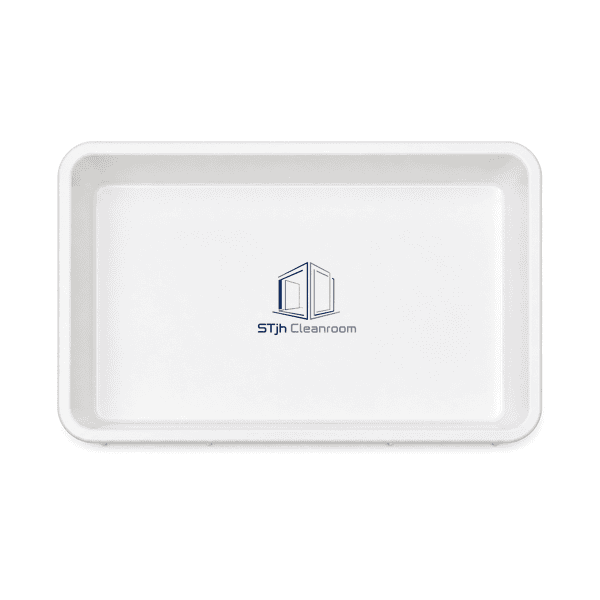

Cleanroom Plastic Tray
Natural white polypropylene cleanroom tray with a smooth radiused interior, reinforced rim and stackable shallow profile for controlled parts handling.
- Smooth polypropylene contact surfaces simplify wipe-down cleaning

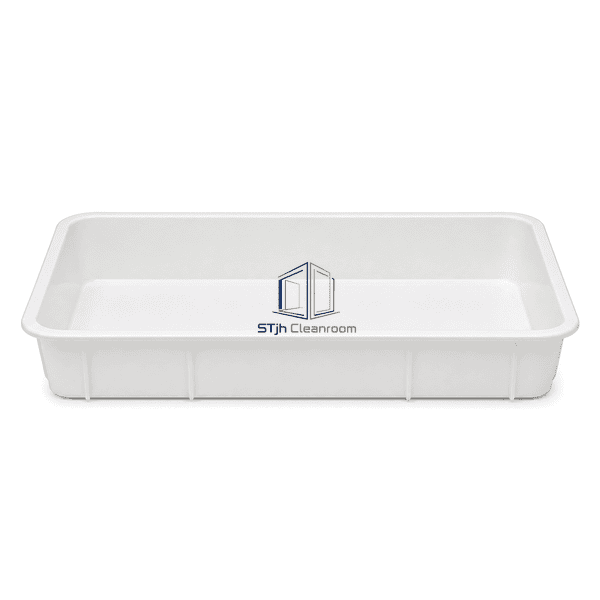

- Shallow reinforced walls support organized parts handling
- Stackable footprint uses bench and storage space efficiently
Product Introduction
The Cleanroom Plastic Tray is formed from chemically resistant polypropylene with a one-piece body and rounded internal corners. Its shallow walls keep components visible and accessible, while the reinforced upper rim limits flex during transfer. A stable flat base and smooth, nonporous finish support repeat cleaning and orderly movement between process steps.
Key Features
Radiused corners reduce residue traps and simplify wiping

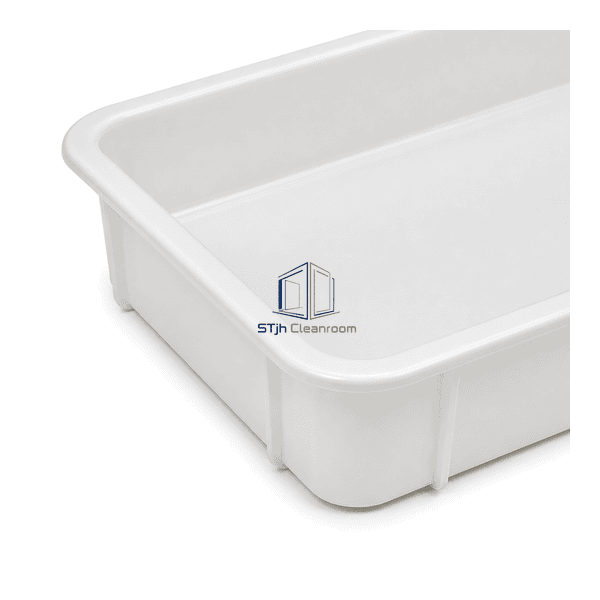

Reinforced rim improves rigidity when the tray is lifted

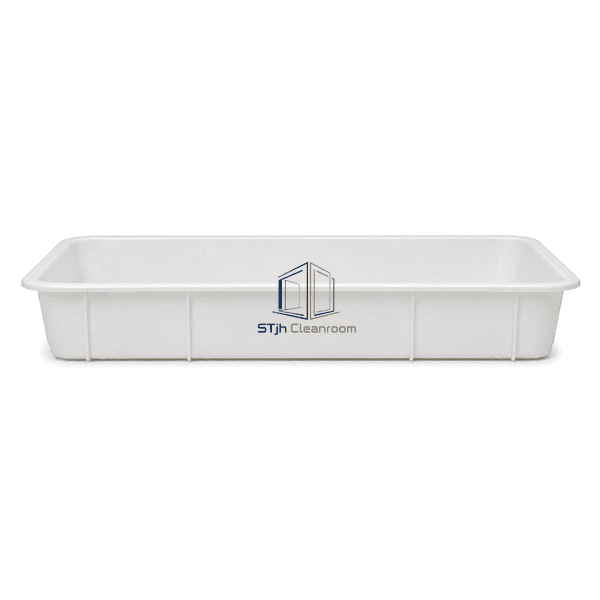

Shallow walls provide clear visibility of small parts and tools
Nesting or stackable geometries can be selected for storage workflow
Customer Product Concerns
Open trays must balance access, containment and cleanability. Deep corners can retain residues, overloaded trays can flex, and poorly matched plastics may be affected by aggressive cleaning agents.
Small parts may slide or mix during transfer.Use removable clean dividers or a dedicated cavity layout when needed.
Scratched surfaces can become difficult to inspect and clean.Replace visibly damaged trays and avoid abrasive cleaning tools.
Thin trays may distort under concentrated loads.Select wall thickness and ribbing for the expected payload.
Residual disinfectant can collect in sharp internal corners.Specify generous internal radii and drain the tray after wiping.
Typical Applications
For moving and staging vials, clean tools, small molded parts, medical-device components, semiconductor accessories and inspection samples on clean benches and production carts.
Technical Parameters
The following ranges cover common reusable polypropylene handling trays. Dimensions, wall thickness, dividers and color should be chosen for the payload and cleaning chemistry.
| Core Material | Natural homopolymer or copolymer polypropylene |
|---|---|
| Panel Thickness | 1.5-3.0 mm nominal wall thickness |
| Effective Width | 180-600 mm tray width |
| Maximum Length | 800 mm tray length |
| Steel Facing Thickness | 0 mm; one-piece polymer tray |
| Core Density | 900-920 kg/m³ polypropylene |
| Thermal Conductivity | 0.10-0.22 W/(m·K), resin dependent |
| Surface Finish | Smooth natural white molded finish with radiused corners |
| Joint Type | Seamless injection-molded or thermoformed one-piece body |
| Customization | Available based on the intended application and operating environment. |
Available Options
Natural white, blue or static-control resinSolid, ribbed or compartmented baseRemovable dividers and fitted lidNesting or positive-stacking geometryAutoclavable resin grade where requiredCustom dimensions and molded identification area
Planning a Cleanroom Plastic Tray specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
