Cleanroom Installation Accessories

Cleanroom Panel Connector

A concealed galvanized connector that aligns adjacent insulated cleanroom panel edges and transfers joint loads into their internal channels.

Concealed Joint Hardware
Positive Edge Alignment
Galvanized Steel Strength
Serviceable Mechanical Fixing

Request a Quote Browse Products

Product Introduction

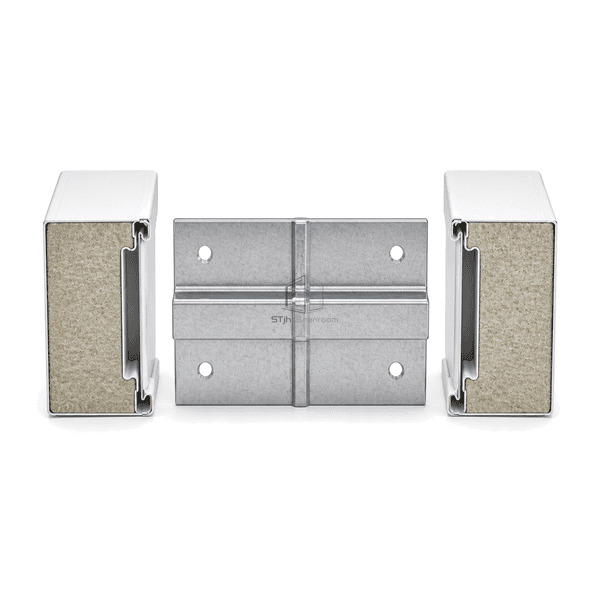

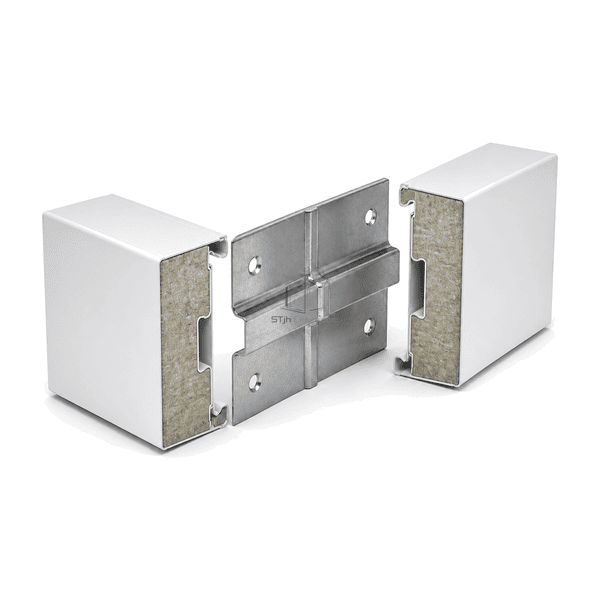

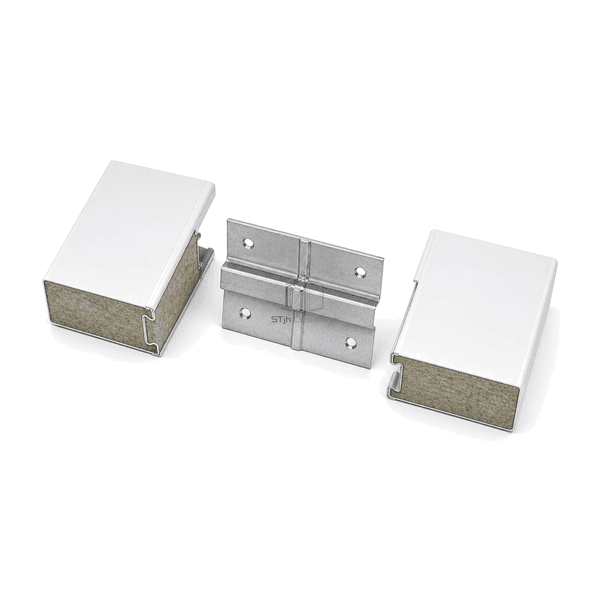

The cleanroom panel connector is a formed galvanized-steel component placed between compatible sandwich-panel edge channels. Its tongues, flanges or locating ribs engage both panel edges so the finished faces remain aligned while screws secure the connector to the internal reinforcement. Because the hardware is concealed by the closed joint, the exposed cleanroom surface can remain flush and ready for final sealing.

Key Features

Formed locating features register both panel edges before final tightening.

Galvanized steel provides practical stiffness and corrosion protection inside the concealed joint.

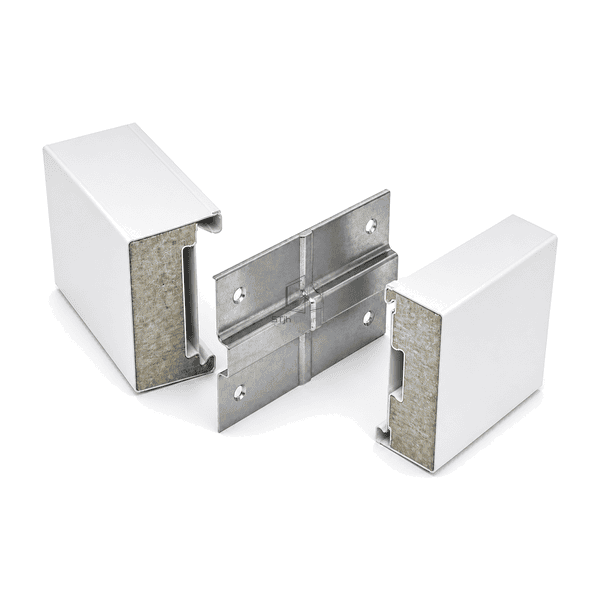

Countersunk or recessed fixing points keep fastener heads below the finished panel face.

Connector geometry can be matched to wall, ceiling or return-panel internal channels.

Customer Product Concerns

Adjacent panels must stay flush during installation even when their light-gauge facings cannot carry alignment loads alone.

Panel faces step out of alignment while installers tighten the joint.Locating tongues engage both internal channels and establish a common joint plane.

Surface fasteners create visible recesses that are difficult to finish hygienically.The connector and its fixings remain concealed within the panel-edge cavity.

Thin sheet facings deform when joint loads are concentrated at one screw.A formed connector spreads load along the internal edge reinforcement.

Generic brackets do not fit the panel manufacturer's tongue-and-groove geometry.Connector width, rib position and hole pattern are matched to the selected panel section.

Typical Applications

Cleanroom wall-panel jointsWalkable ceiling panel connectionsPartition return panelsDoor-frame infill interfacesModular enclosure assembly

Technical Parameters

Typical construction ranges for a formed galvanized cleanroom sandwich-panel connector are shown below.

Core Material	Formed galvanized carbon-steel connector with stamped ribs and fixing holes
Panel Thickness	50-150 mm compatible sandwich-panel thickness
Effective Width	40-200 mm connector engagement width
Maximum Length	Up to 3000 mm continuous spline or 500 mm discrete connector length
Steel Facing Thickness	1.00-2.50 mm galvanized connector sheet thickness
Core Density	Approximately 7850 kg/m³ for galvanized carbon steel
Thermal Conductivity	Approximately 45-60 W/(m·K) for carbon-steel connector parts
Surface Finish	Silver zinc-coated formed steel concealed within white coated panel edges
Joint Type	Concealed spline, tongue, bridging plate or channel engagement with mechanical fixing
Customization	Available based on the intended application and operating environment.

Available Options

Continuous spline or discrete plateWall or ceiling profilePre-punched fixing holesStainless-steel construction

Planning a Cleanroom Panel Connector specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
