Cleanroom Lighting and Electrical Equipment

Cleanroom LED Panel Light

A low-profile LED panel that combines an edge-lit or back-lit optical stack with a sealed, wipe-clean white frame.

Slim Flat-Panel Body

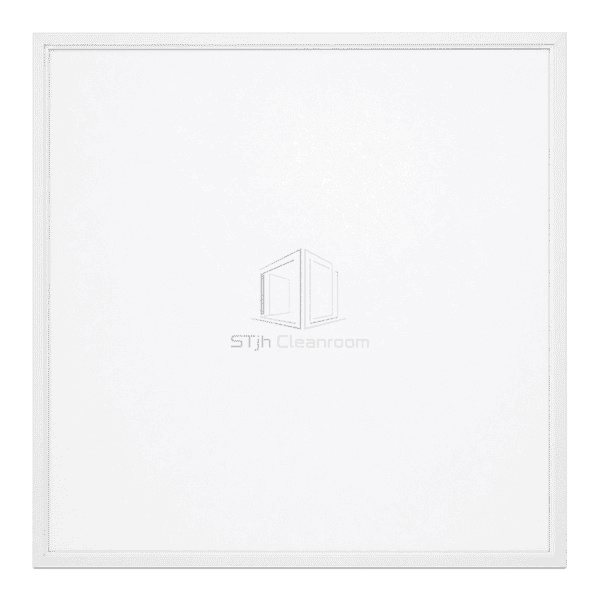

Uniform Low-Glare Face
Cleanable White Frame
Modular Ceiling Fit

Request a Quote Browse Products

Product Introduction

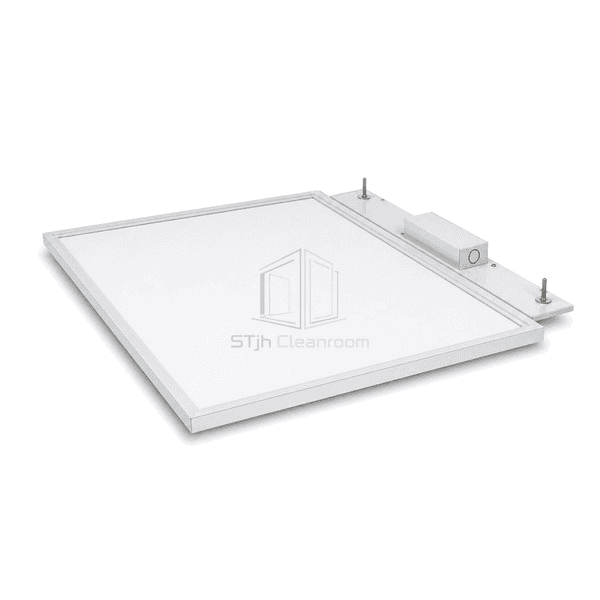

The panel light uses a shallow aluminum frame around a layered optical assembly consisting of a diffuser, light guide or back-lit lens, reflector and LED source. Its broad luminous surface reduces harsh brightness gradients in low-ceiling cleanrooms. A sealed front perimeter and enclosed rear cover prevent exposed optical layers, while the external driver can be positioned above the ceiling for heat separation and service access.

Key Features

A full-panel luminous face gives consistent illumination over work areas.

The shallow body preserves space for ducts and filter housings above the ceiling.

A rigid aluminum frame keeps the diffuser flat and evenly compressed.

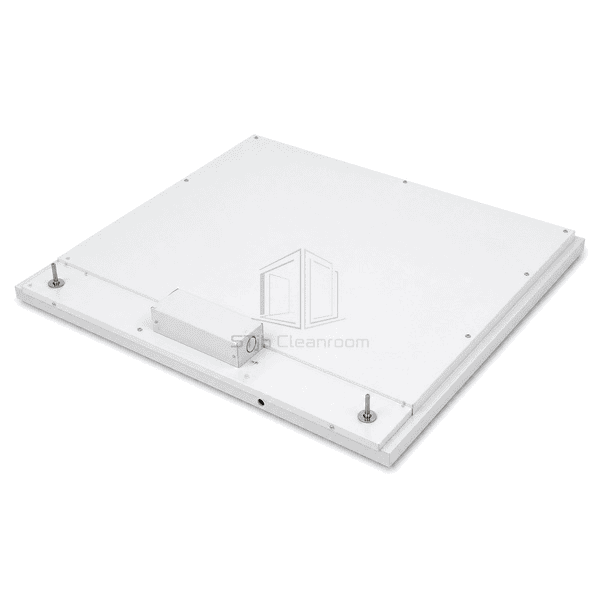

The enclosed rear plate shields the optical stack from plenum dust.

A remote driver option keeps serviceable electronics outside the sealed face.

Customer Product Concerns

Flat panel lights must remain visibly uniform while their slim edge and ceiling joint withstand repeated wiping.

Consumer office panels flex and open at the frame corners.A reinforced extruded frame and sealed corner joints retain the optical stack.

Bright LED spots remain visible through a thin diffuser.A matched diffuser and light-distribution layer blend the source across the full face.

A bulky fixture conflicts with crowded ceiling services.Low-profile panel construction minimizes the depth occupied above the grid.

Dust enters from an open rear plate and marks the lens.A closed metal back cover isolates the internal optical layers.

Typical Applications

Clean assembly ceilingsHospital preparation roomsLaboratory corridorsElectronics inspection areas

Technical Parameters

Typical configurable construction ranges for a cleanroom LED panel light are listed below.

Core Material	Extruded aluminum perimeter, LED optical stack and opal PMMA or polycarbonate diffuser
Panel Thickness	32-65 mm overall panel body thickness
Effective Width	595-620 mm nominal luminous module width
Maximum Length	Up to 1220 mm overall panel length
Steel Facing Thickness	0.5-0.8 mm powder-coated steel rear cover
Core Density	Approximately 1180 kg/m³ for the PMMA light-guide or diffuser layer
Thermal Conductivity	0.19 W/(m·K) for the PMMA optical layer
Surface Finish	White powder-coated or anodized frame with a smooth opal luminous surface

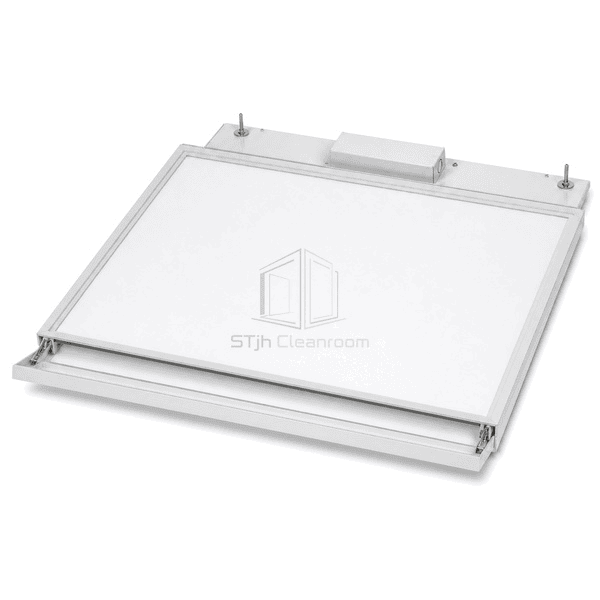

Joint Type	Crimped or screwed perimeter frame with sealed corners and compressible ceiling gasket
Customization	Available based on the intended application and operating environment.

Available Options

Edge-lit or back-lit optical system300 x 1200 mm and 600 x 600 mm modulesEmergency driver packSelectable color temperature
