Cleanroom Equipment Access Door

An extra-wide framed access assembly that opens a large section of a modular cleanroom wall for moving machinery, carts and production equipment.

Process Skid Transfer
Single or Double Leaf
Clear Polymer Infill
Removable Mullion Option

Request a Quote Browse Products

Product Introduction

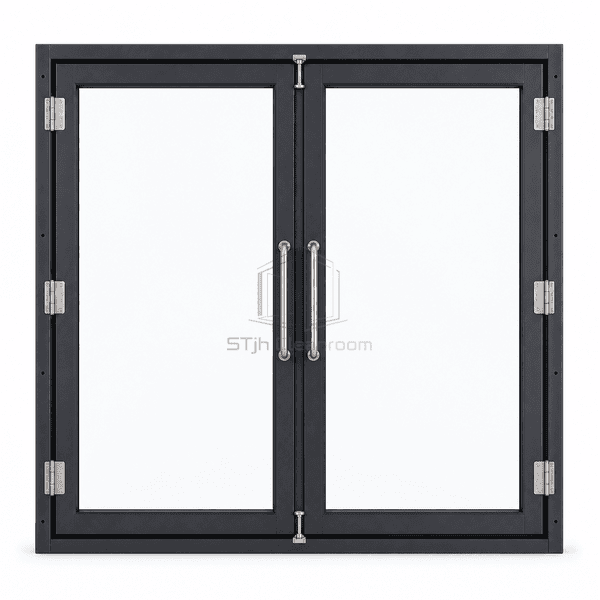

The Cleanroom Equipment Access Door uses tall rigid acrylic or static-dissipative PVC panels inside a reinforced powder-coated frame. Single- and double-swing configurations create a substantially wider opening than a personnel door, allowing process equipment to enter without dismantling the surrounding hardwall enclosure. Surface-mounted hinges and secure latches remain accessible for maintenance outside critical operations.

Key Features

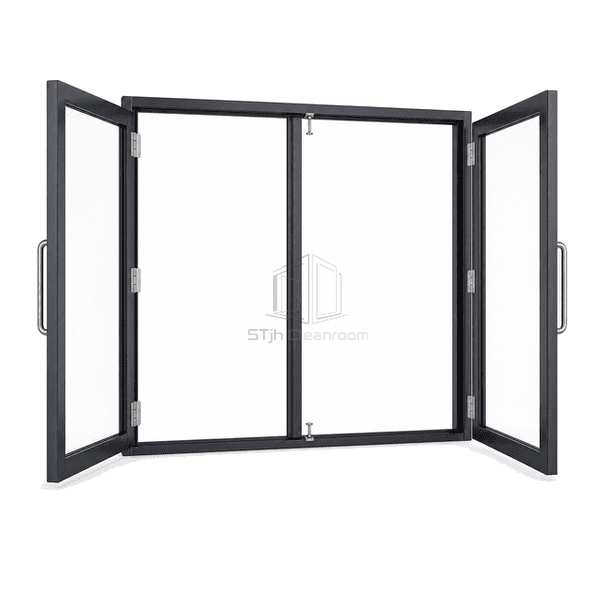

Wide double-swing configuration clears a large equipment transfer path.

Rigid transparent panels let operators verify the route before opening the leaves.

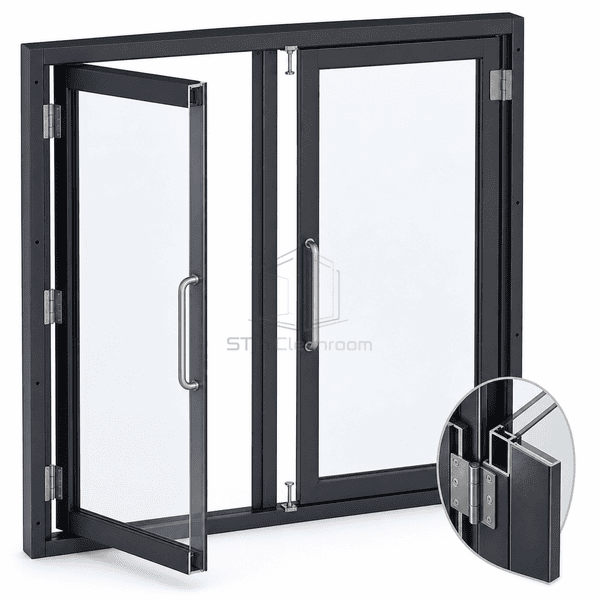

Reinforced frame carries tall leaves without relying on adjacent lightweight wall panels.

Independent active and inactive leaves allow partial opening for smaller transfers.

Replaceable panel construction supports future repair without replacing the full frame.

Customer Product Concerns

Production equipment cannot pass through a standard personnel doorway.Wide single or double leaves create a full-height opening sized for machinery transfer.

Removing fixed cleanroom wall panels causes extended shutdown work.A permanent equipment access assembly opens without dismantling the enclosure.

Tall transparent leaves twist and lose alignment after repeated use.A reinforced perimeter frame and multiple hinges stabilize each full-height panel.

Opening the full width for every cart movement wastes conditioned air.The active leaf can operate independently while the secondary leaf remains secured.

Typical Applications

Process skid installationCleanroom machinery replacementLarge cart and rack transferModular production cell accessMaintenance shutdown access routes

Technical Parameters

Core Material	Rigid acrylic or static-dissipative PVC infill within reinforced metal framing
Panel Thickness	6–12 mm rigid polymer infill
Effective Width	1170–2420 mm clear opening, single or double leaf
Maximum Length	Up to 2380 mm clear opening height
Steel Facing Thickness	Not applicable to clear panels; powder-coated steel frame typically 1.5–2.5 mm
Core Density	Approximately 1180 kg/m³ for acrylic or 1350–1450 kg/m³ for rigid PVC
Thermal Conductivity	Approximately 0.19 W/(m·K) for acrylic or 0.14–0.17 W/(m·K) for rigid PVC
Surface Finish	Clear or static-dissipative smooth panel with powder-coated steel or aluminum frame

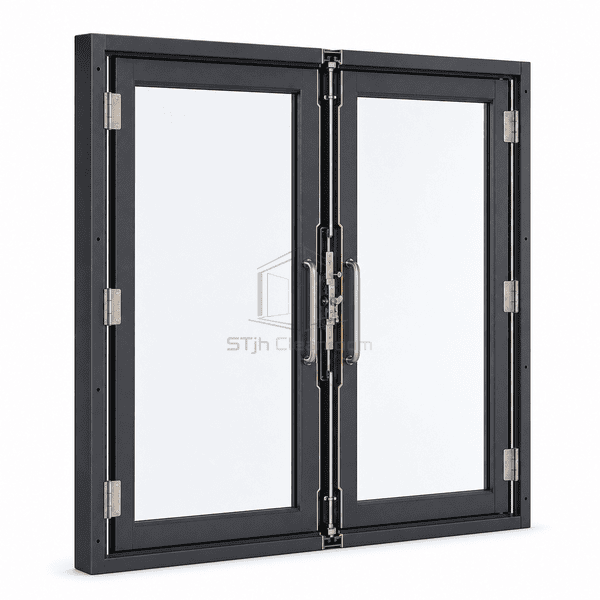

Joint Type	Reinforced single or double swing leaves with perimeter seals, active-leaf latch and inactive-leaf bolts
Customization	Available based on the intended application and operating environment.

Available Options

Single or unequal double leavesClear acrylic or static-dissipative PVCRemovable center mullionLockable latch and hold-open hardware
