Waterproof Cleanroom Socket

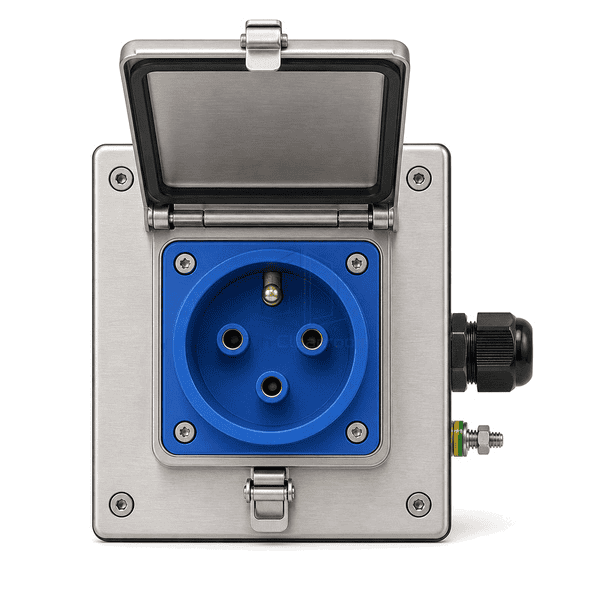

A washdown-oriented power outlet with a gasketed protective cover that closes over the receptacle when it is not in use.

Gasketed Hinged Cover
Washdown-Resistant Plate
Sealed Rear Enclosure
Stainless Hinge and Captive Screws

Request a Quote Browse Products

Product Introduction

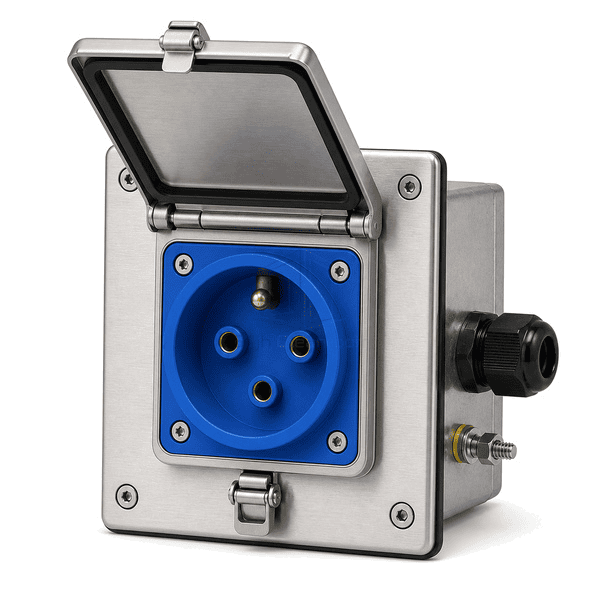

The waterproof socket adds a spring- or latch-retained cover over a recessed power module. A separate gasket seals the cover against the faceplate, and another concealed seal closes the plate to the wall. Stainless hinges and a formed drip edge direct water away from the receptacle while a gland protects the incoming cable at the rear box.

Key Features

The protective lid closes the outlet cavity during room washing.

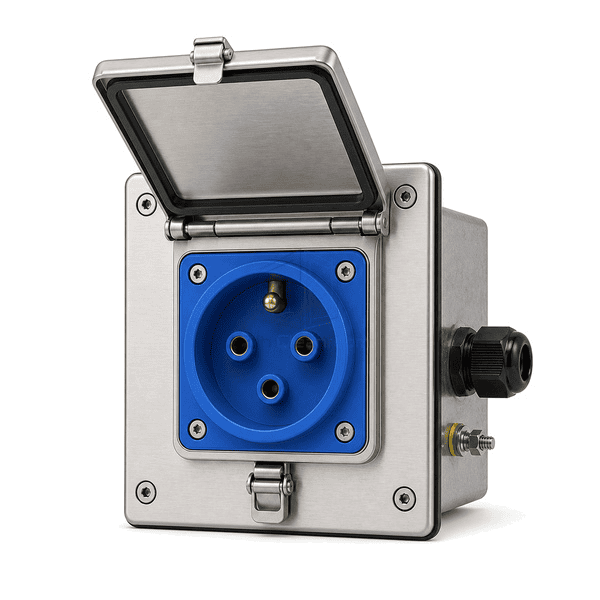

A molded cover seal compresses around the receptacle opening.

Stainless hinge components resist repeated wet operation.

The sloped cover edge sheds droplets away from the socket face.

A sealed rear enclosure prevents water bypass through the wall cavity.

Customer Product Concerns

A covered outlet must keep water away from live contacts without becoming a deep, difficult-to-clean pocket itself.

Spray reaches the contacts of an uncovered receptacle.A gasketed lid shields the socket whenever no plug is connected.

Water pools on a horizontal cover ledge.The profiled face and drip edge direct liquid away from the opening.

A corroded hinge stops the cover closing fully.Stainless hinge pins and retained springs preserve reliable closure.

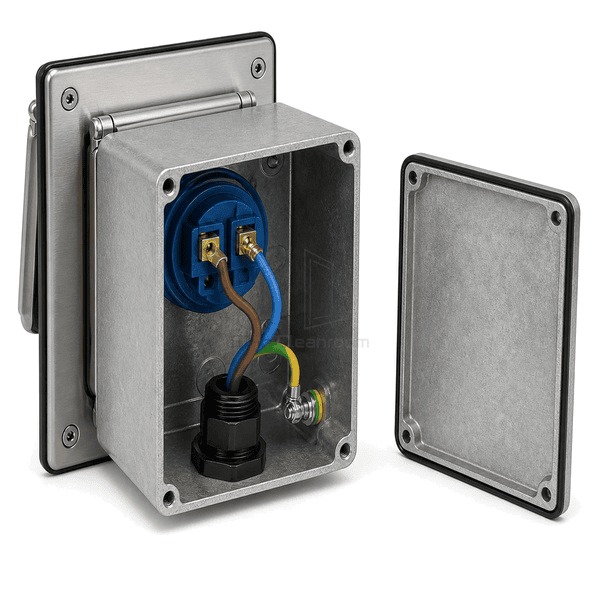

Moisture travels behind the plate through the supply cable.The rear box uses a dedicated compression gland around the cable.

Typical Applications

Damp cleanroomsWashdown utility zonesFood-process clean areasEquipment cleaning bays

Technical Parameters

Typical configurable construction ranges for a waterproof cleanroom socket are listed below.

Core Material	SUS316L faceplate and cover with engineering-polymer receptacle, elastomer seals and enclosed rear box
Panel Thickness	2.0-4.0 mm cover and sanitary plate thickness
Effective Width	130-260 mm covered outlet width
Maximum Length	Up to 340 mm overall plate height
Steel Facing Thickness	2.0-3.0 mm SUS316L exposed plate and lid
Core Density	Approximately 7900-8000 kg/m³ for the stainless exposed components
Thermal Conductivity	14-16 W/(m·K) for the stainless cover and plate
Surface Finish	Fine-brushed or electropolished stainless with colored watertight receptacle insert
Joint Type	Gasketed hinged lid over a flush socket plate with concealed wall seal and rear cable gland
Customization	Available based on the intended application and operating environment.

Available Options

Single or dual covered outletRegional or IEC pin configurationInterlocked coverLockable lid
