Cleanroom Control and Environmental Monitoring Systems
Temperature and Humidity Display
A dual-parameter wall display that shows cleanroom temperature and relative humidity in large, independently alarmed readings.
- Dual Large Readings
- Independent T and RH Limits
- Local or Remote Sensors
- Dew-Point Display Option
Product Introduction

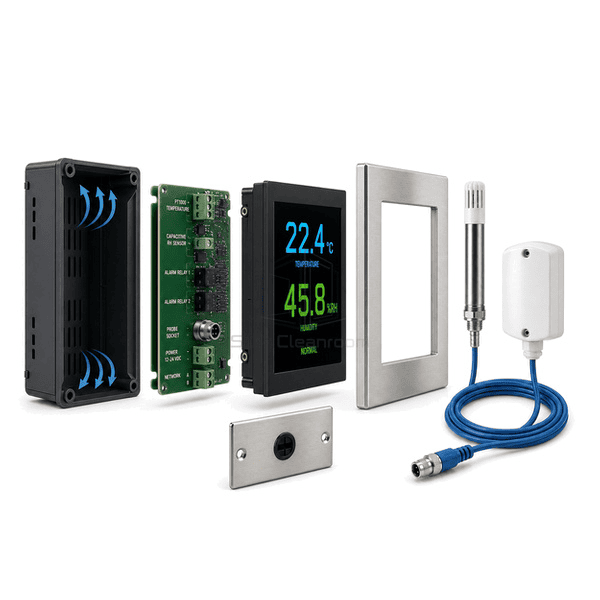

The temperature and humidity display presents both room variables on a high-contrast screen without hiding one value behind a menu. It can use an integrated ventilated sensor or receive measurements from a remote transmitter located at a more representative point. Independent temperature and humidity limits drive color changes, buzzer or relay output. Optional dew-point calculation helps operators interpret moisture condition when room temperature changes, and network output sends the live values to centralized monitoring.
Key Features
Independent alarm bands prevent one variable from masking the other.

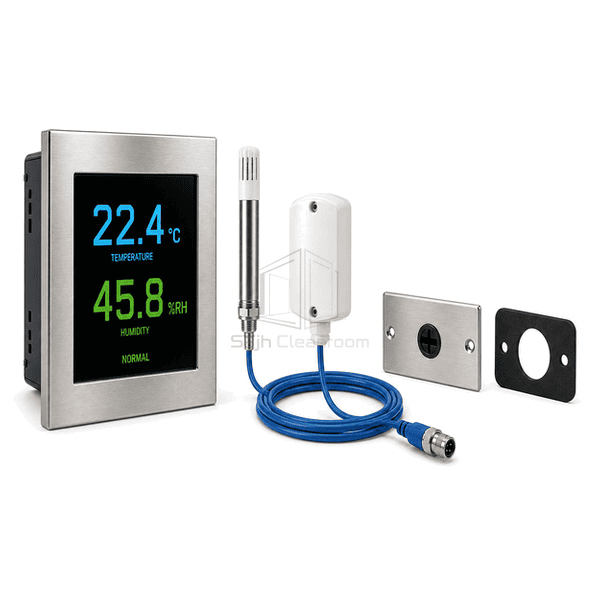

Remote sensor input separates the display location from the measurement location when needed.
Optional dew-point calculation adds moisture context without installing another sensor.
Customer Product Concerns
The most visible display location is not always the best measurement point, especially near doors, lights or warm wall cavities.

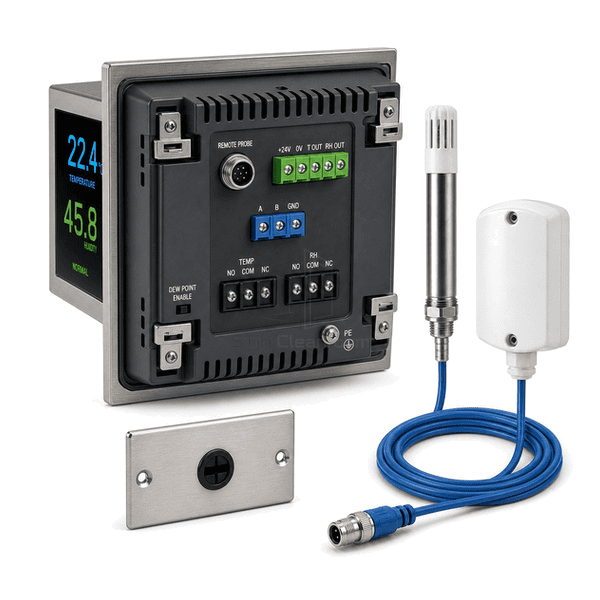

A warm display enclosure biases the integrated temperature sensor.Remote-probe input places the sensing element away from display heat and wall effects.
Humidity appears normal only because room temperature has changed.Temperature, RH and optional dew point are shown together for clearer interpretation.
One alarm color does not show which variable is abnormal.Separate temperature and humidity fields change status independently.

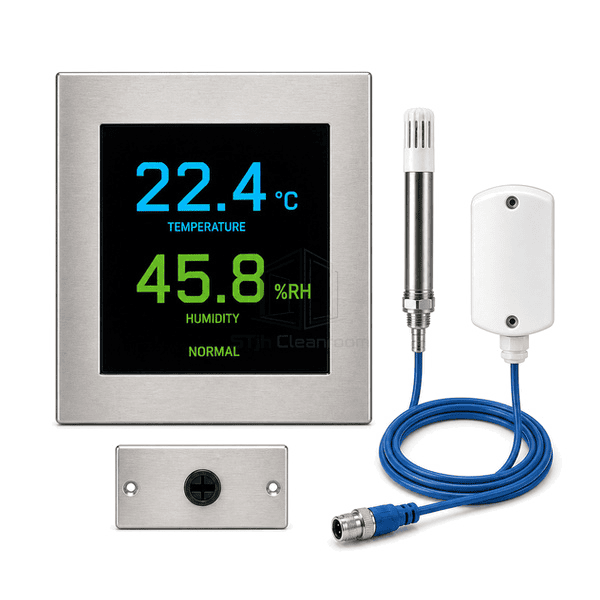

Small values cannot be read from the cleanroom corridor.Large high-contrast digits prioritize the two live measurements.
Typical Applications
Cleanroom entrance displaysControlled storage roomsLaboratory environmental indicationProduction-area comfort monitoring
Technical Parameters
Typical materials and dimensions for a cleanroom temperature and humidity display are listed below.
| Core Material | Industrial LCD with platinum temperature and capacitive RH sensing in 304 stainless steel bezel housing |
|---|---|
| Panel Thickness | 35-75 mm display depth |
| Effective Width | 160-300 mm front width |
| Maximum Length | Up to 380 mm display height |
| Steel Facing Thickness | 0-1.2 mm; optional 304 stainless front bezel |
| Core Density | 7900-8030 kg/m³ for stainless bezel components |
| Thermal Conductivity | 14-17 W/(m·K) for 304 stainless steel bezel |
| Surface Finish | Brushed stainless bezel with black display and blue-green numeric graphics |
| Joint Type | Flush or surface wall mount with integrated vents or remote-probe connector |
| Customization | Available based on the intended application and operating environment. |
Available Options
Integrated or remote sensorWhite powder-coated or brushed stainless bezelDew-point calculation and relay outputsModbus or BACnet communication
Planning a Temperature and Humidity Display specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
