Cleanroom Drainage, Hygiene and Safety Equipment
Stainless Steel Trench Drain
Load-bearing stainless trench drain for higher washdown volumes and wheeled cleanroom equipment routes.
- Reinforced Load-Bearing Edges

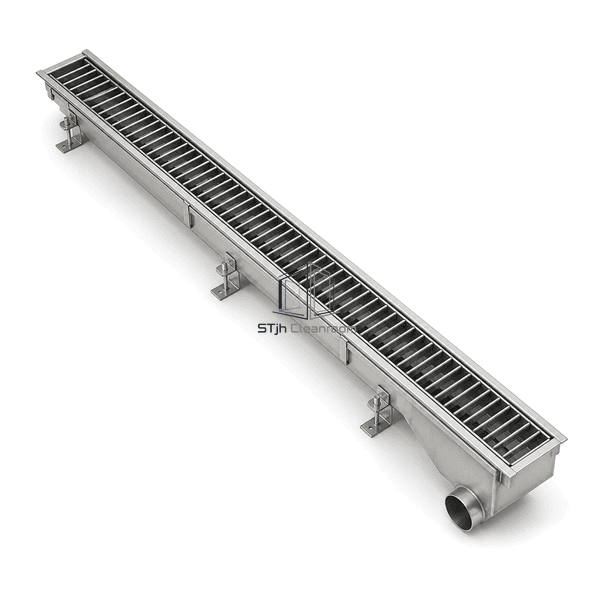

- Removable Hygienic Grating
- Sloped Radiused Channel
- Cleanable Outlet Sump
Product Introduction

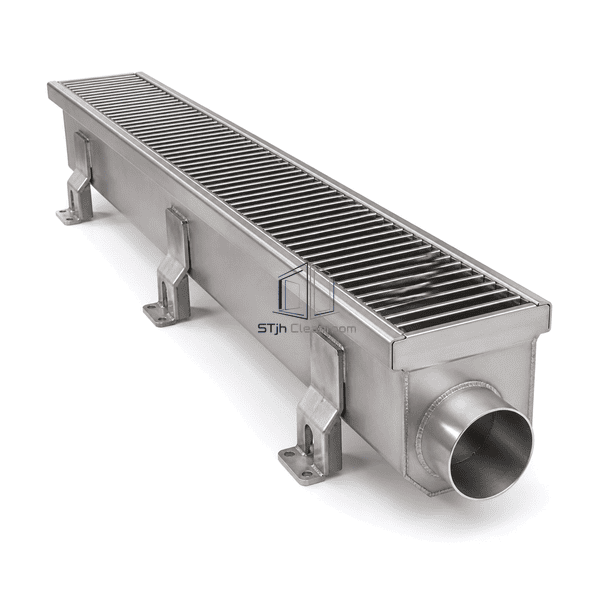

The stainless steel trench drain provides a deeper, wider collection channel for clean manufacturing routes exposed to higher wash volumes or wheeled traffic. Reinforced edge rails support removable bar, ladder or hygienic grating, while a formed longitudinal fall guides water to a cleanable sump or direct outlet. Continuously welded radiused interiors remain accessible after the grate is lifted.
Key Features

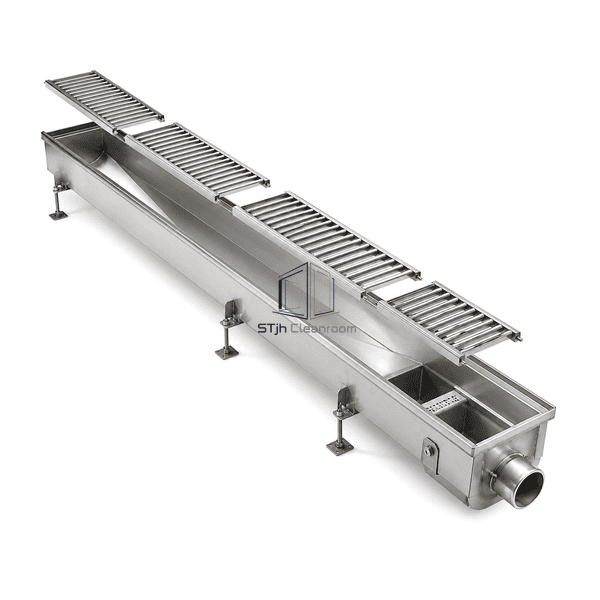

Lift-out grating exposes the channel and sump for cleaning.
A built-in fall directs wash water and reduces stagnant zones.
Custom depth, width and outlet position suit the floor and hydraulic load.
Customer Product Concerns
High-volume wash zones and wheeled routes require stronger channel edges and greater hydraulic capacity without sacrificing cleanability.

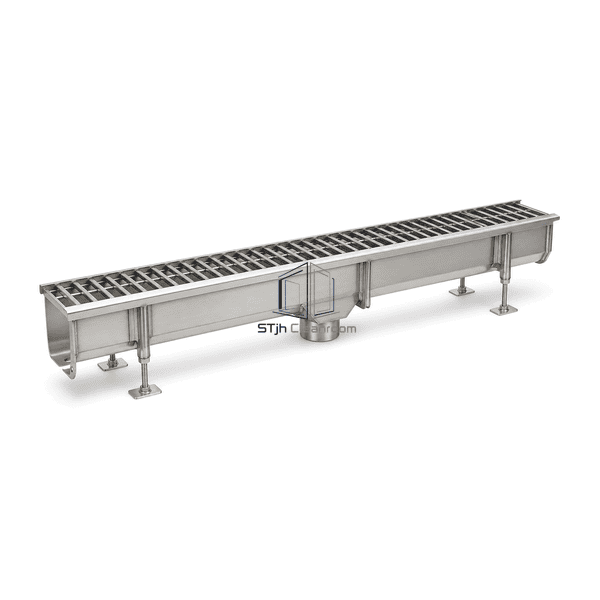

Trolley and equipment wheels can deform lightly supported drain edges.Reinforced stainless edge rails transfer loading into the surrounding floor structure.
Deep channels can hide sediment beneath fixed grating.Removable load-rated grates expose the full radiused channel and sump.
Large wash volumes may pond in a flat trench.A fabricated longitudinal fall and sized outlet guide flow toward the discharge point.
Standard channel depths may conflict with slab or utility constraints.Clear width, depth, section length and sump arrangement are configurable for the installation.
Typical Applications
Equipment wash areasSterile utility roomsClean manufacturing floorsHygienic logistics routes
Technical Parameters
Typical construction ranges for a load-bearing stainless trench are listed below; grate, depth and outlet are selected for flow, wheel load and floor build-up.
| Core Material | AISI 304 or 316L stainless steel channel and edge rails |
|---|---|
| Panel Thickness | 2.0-3.0 mm channel wall |
| Effective Width | 150-500 mm clear trench width |
| Maximum Length | Up to 6000 mm per fabricated section |
| Steel Facing Thickness | 2.0-3.0 mm exposed stainless surfaces |
| Core Density | 7900-8000 kg/m³ for stainless steel |
| Thermal Conductivity | 14-16 W/(m·K) for stainless steel |
| Surface Finish | Pickled and passivated or satin-finished stainless steel |
| Joint Type | Continuously welded channel modules with flanged transport-section joints |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L grade150-500 mm clear widthBar, ladder or hygienic grateCustom depth, sump and load rating
Planning a Stainless Steel Trench Drain specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
