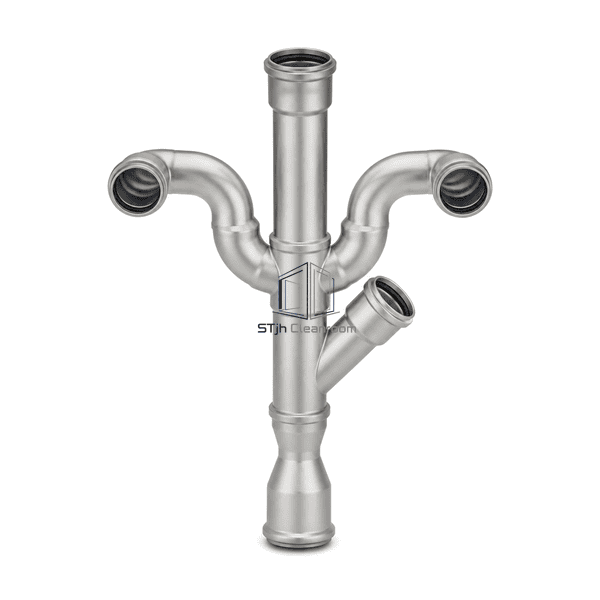

Complete stainless steel cleanroom drain piping and fitting set in three-quarter view

Cleanroom Drainage, Hygiene and Safety Equipment

Stainless Steel Drain Piping

Thin-wall 304 or 316L stainless drainage pipe and fittings with sealed socket joints for clean gravity or vacuum waste networks.

304 or 316L Stainless Construction
Sealed Push-Fit Socket Joints
Smooth Corrosion-Resistant Bore
Gravity and Vacuum Configurations

Request a Quote Browse Products

Product Introduction

Stainless steel drain piping provides a light, corrosion-resistant alternative to heavy cast drainage systems in controlled facilities. Straight tubes, bends, branches, reducers and cleanouts use factory-formed spigots and sockets, allowing rapid assembly with limited hot work. Material grade and elastomer selection can be matched to the conveyed waste, cleaning chemistry and operating temperature.

Key Features

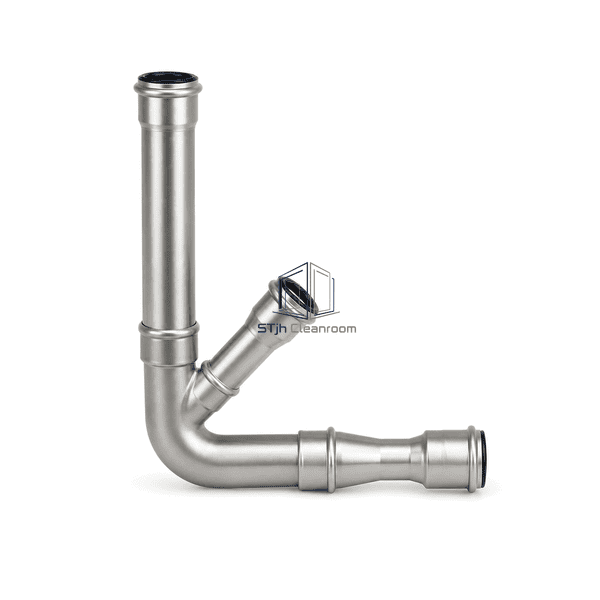

Thin-wall stainless construction combines mechanical strength with lower installed weight.

Smooth internal surfaces limit residue retention and support predictable drainage flow.

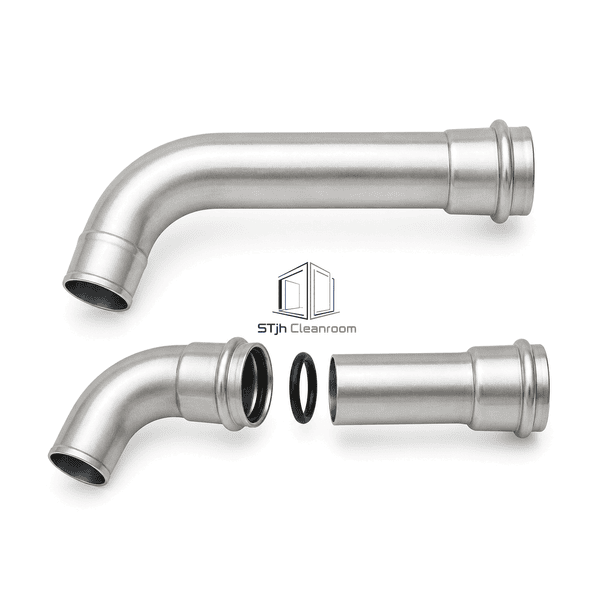

Push-fit sockets use replaceable elastomer seals and allow fittings to be dismantled for alteration.

A coordinated range of branches, bends and reducers supports prefabricated utility layouts.

Customer Product Concerns

Controlled facilities need drain pipework that resists cleaning chemicals, fits congested service zones and can be assembled without unnecessary contamination-producing site work.

Conventional drainage materials may corrode or shed surface material under repeated chemical cleaning.304 or 316L stainless tube provides a durable, cleanable exposed and internal surface.

Welding every fitting increases installation time and hot-work controls.Factory-formed push-fit sockets connect straight pipe and fittings with replaceable seals.

Incorrect elastomers can swell or lose sealing performance in chemical waste service.EPDM, NBR or FKM seals are selected to suit the expected liquid and temperature range.

Congested ceiling and service zones require frequent changes of direction and diameter.Matched bends, branches, reducers and cleanouts support compact prefabricated routing.

Typical Applications

Cleanroom sanitary drainageLaboratory waste networksProcess equipment dischargeVacuum drainage pipework

Technical Parameters

Typical catalog ranges for stainless drainage tube and fittings are shown below; diameter, grade and seal compound are selected for the waste stream and pressure regime.

Core Material	AISI 304 or 316L stainless steel tube and fittings
Panel Thickness	0.8-2.0 mm tube wall
Effective Width	40-250 mm outside diameter
Maximum Length	Up to 6000 mm straight tube length
Steel Facing Thickness	0.8-2.0 mm stainless wall
Core Density	7900-8000 kg/m³ for stainless steel
Thermal Conductivity	14-16 W/(m·K) for stainless steel
Surface Finish	Acid-pickled natural silver matt finish; optional external satin finish
Joint Type	Push-fit stainless socket with EPDM, NBR or FKM elastomer seal
Customization	Available based on the intended application and operating environment.

Available Options

304 or 316L gradeEPDM, NBR or FKM sealsStraight tubes and swept bendsBranches, reducers and cleanout fittings
