Personnel and Material Decontamination Equipment

Personnel Misting Decontamination Shower

A controlled exit chamber that applies fine water droplets to bind loose powder on protective garments before de-gowning.

Fine-Droplet Suit Coverage
Interlocked Door Sequence
Drainable Stainless Interior
Programmable Misting Cycle

Request a Quote Browse Products

Product Introduction

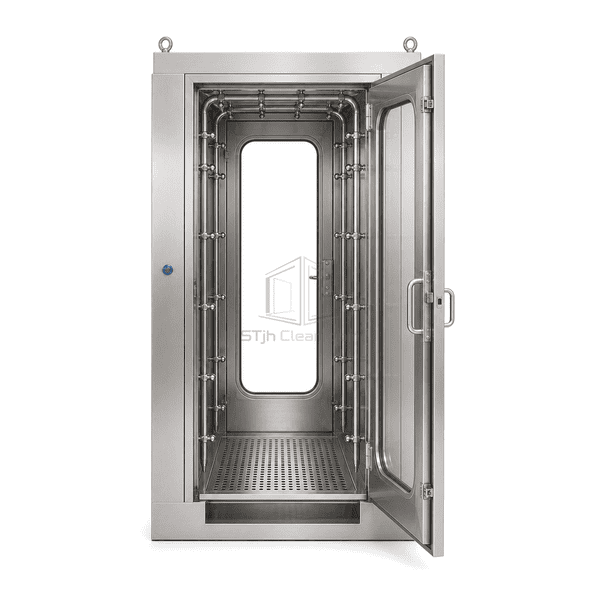

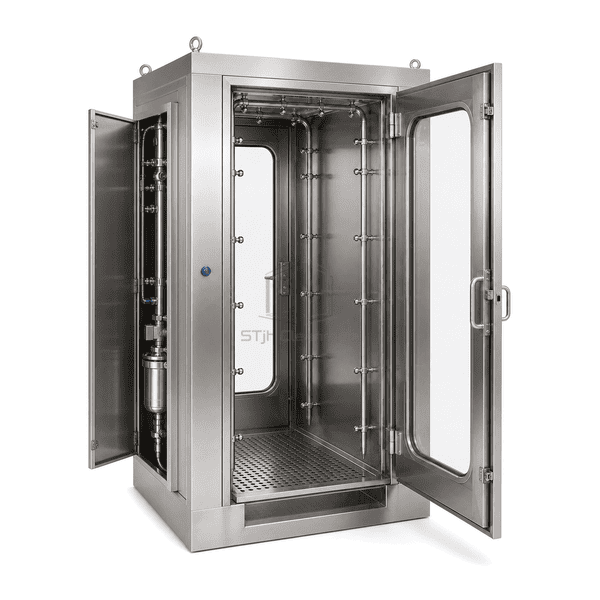

This walk-through misting shower places a distributed nozzle array around an operator leaving a powder-handling suite. Fine treated-water droplets wet the outer garment surface with limited runoff, while a sloped floor collects the resulting liquid. Smooth stainless internal surfaces, coved corners and a sealed two-door route support cleaning between shifts.

Key Features

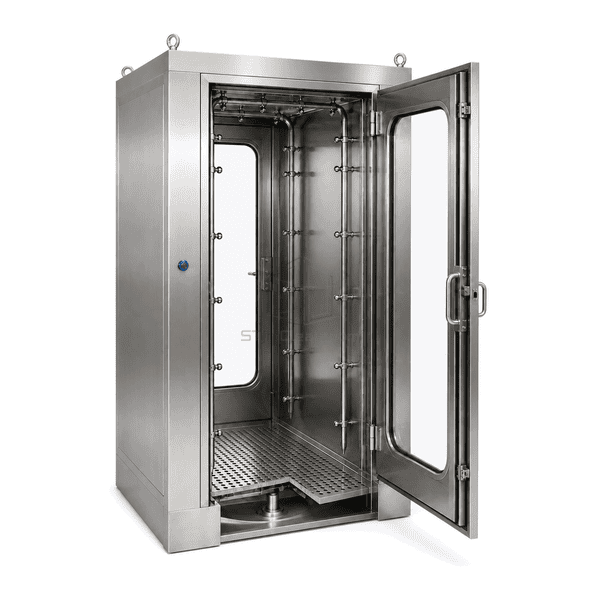

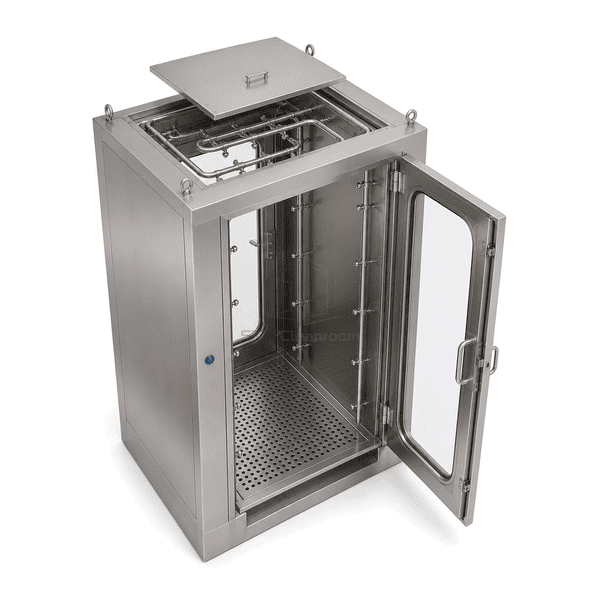

Overhead and side nozzles address the hood, torso, cuffs and lower-leg zones.

A controller sequences entry lock, misting, drip delay and exit release.

Pressure and water-supply monitoring can inhibit a cycle when utility conditions are unsuitable.

A non-slip floor pan directs liquid to a trapped drain connection.

Visible cycle indicators guide the operator through rotation and completion.

Customer Product Concerns

The chamber must wet loose residue consistently while keeping water use and carryover manageable.

Dry powder can become airborne during suit removal.Fine droplets bind loose residue to the outer garment before de-gowning.

Arms and boots receive less water than the front of the suit.Multi-level nozzles and an operator rotation prompt extend coverage around the wearer.

Residual water causes slips and delays the next user.A graded non-slip floor and drain-down pause remove runoff before door release.

Both doors are opened during a decontamination cycle.Electrical interlocking keeps the opposite doorway secured until the cycle ends.

Typical Applications

High-potency pharmaceutical exitsAPI powder productionContainment laboratory de-gowningBattery-powder handling rooms

Technical Parameters

Typical hygienic enclosure ranges for a personnel misting shower are listed below.

Core Material	PIR-insulated SUS 304 or SUS 316L chamber with treated-water manifolds and atomising nozzles
Panel Thickness	50-75 mm insulated wall and ceiling panels
Effective Width	900-1200 mm clear internal width
Maximum Length	Up to 1800 mm chamber length
Steel Facing Thickness	1.0-1.5 mm stainless-steel internal facing
Core Density	40-45 kg/m³ closed-cell PIR insulation
Thermal Conductivity	0.021-0.026 W/(m·K) for the insulated enclosure core
Surface Finish	Brushed stainless steel with welded coved corners and a non-slip drain floor
Joint Type	Liquid-tight flush seams with gasketed interlocked doors and sanitary welded pipe connections
Customization	Available based on the intended application and operating environment.

Available Options

Water-quality monitoringAir-assisted atomising nozzlesEmergency rinse functionTwo-person chamber arrangement
