Material Charging Booth

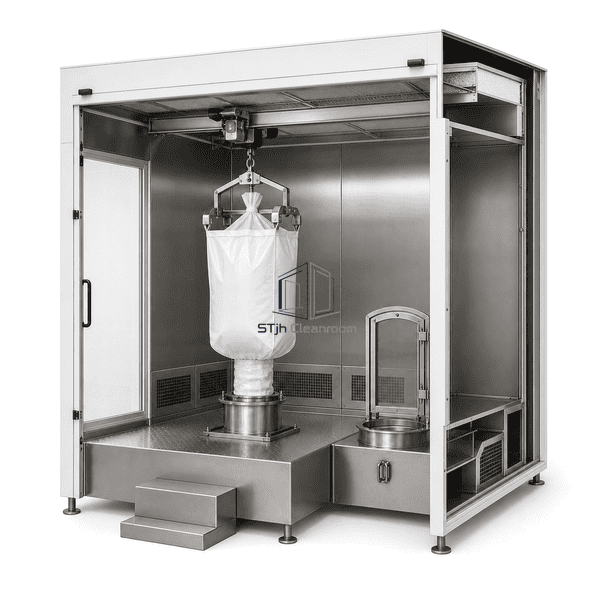

A downflow booth built around a process inlet so bags, drums or lined containers can be emptied into a vessel while released dust is captured locally.

Process Inlet Integration
Contained Charging Zone
Bag and Drum Handling
Low-Level Dust Return

Request a Quote Browse Products

Product Introduction

The charging booth surrounds the feed opening of a mixer, reactor, hopper or intermediate vessel. A raised platform, charging chute or flexible connection positions the process inlet within the protected downflow zone. Operators open bags or containers above the inlet while rear or side returns capture displaced dust. Lifts, hoists and empty-bag disposal ports can be integrated so charging steps remain inside one organized enclosure.

Key Features

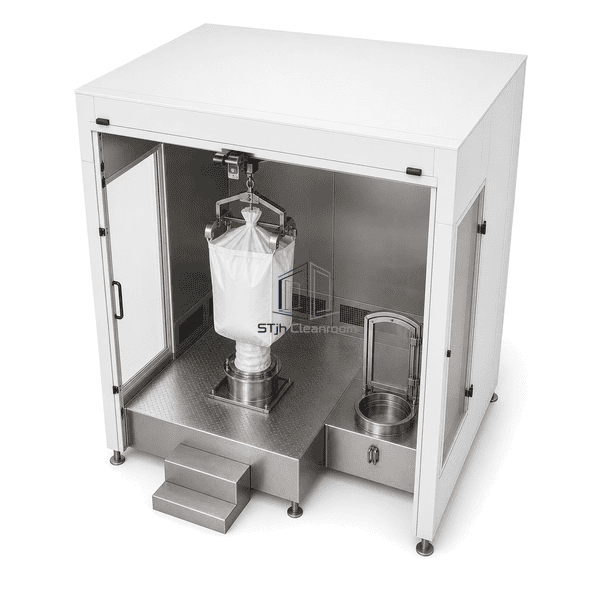

A reinforced floor or platform aligns the booth around the process charging point.

Flexible or rigid feed interfaces reduce the open gap between container and vessel.

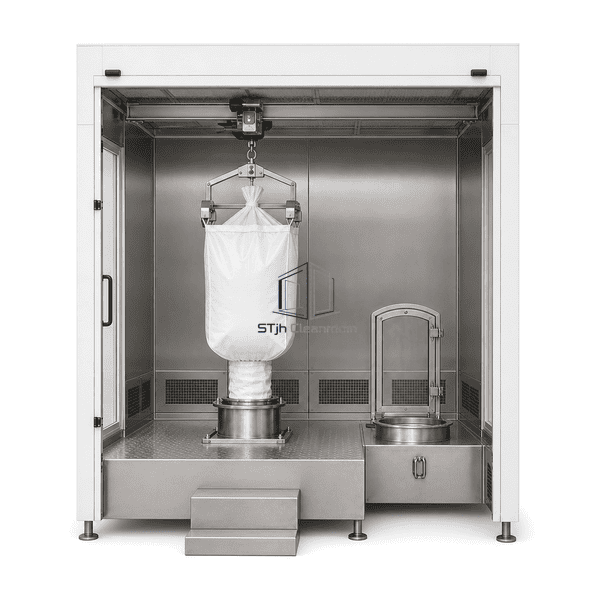

Low return grilles collect dust displaced upward from the receiving vessel.

Hoists or bag lifters can move heavy containers into the charging position.

A dedicated empty-bag port separates waste handling from the product inlet.

Customer Product Concerns

Vessel charging releases air and powder from the receiving inlet while operators handle heavy source containers above the process opening.

Displaced air pushes powder back from the vessel inlet.Local returns capture the upward plume around the charging connection.

Heavy bags are lifted manually above shoulder height.An integrated hoist or lifter positions the source container over the inlet.

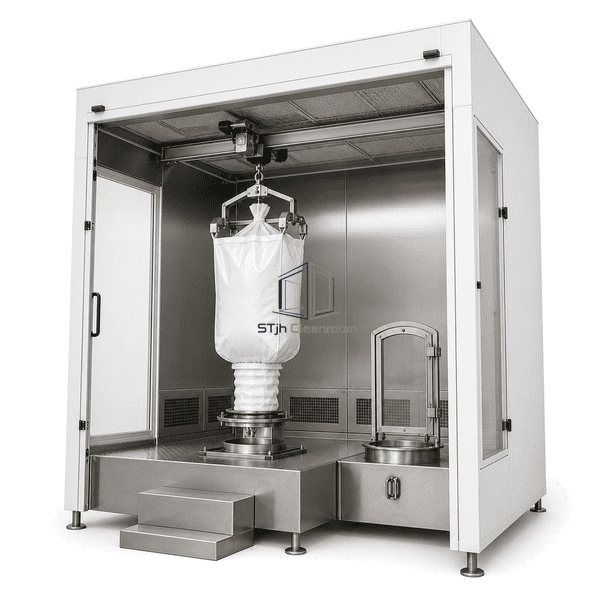

A wide gap remains between the bag and process chute.A flexible sleeve or inflating-head option closes the transfer interface.

Empty bags carry residue across the booth.A dedicated bag-out or waste port removes them through a separate contained route.

Typical Applications

Mixer chargingReactor powder additionGranulator ingredient loadingIntermediate hopper filling

Technical Parameters

Typical configurable construction ranges for a material charging booth are listed below.

Core Material	SUS304 or SUS316L process-zone panels with mineral-wool insulated outer enclosure and reinforced charging platform
Panel Thickness	75-100 mm insulated booth panels
Effective Width	1800-4500 mm clear charging width
Maximum Length	Up to 6500 mm booth depth
Steel Facing Thickness	1.2-2.0 mm stainless process facing; 1.0-1.2 mm outer steel
Core Density	100-140 kg/m³ mineral-wool core
Thermal Conductivity	0.035-0.045 W/(m·K) for the mineral-wool core
Surface Finish	Fine-brushed stainless process surfaces with sealed powder-coated outer panels
Joint Type	Pressure-sealed booth panels with reinforced vessel interface, flexible sleeve or welded charging chute
Customization	Available based on the intended application and operating environment.

Available Options

Bag lifter or monorail hoistFlexible liner or inflating-head connectionEmpty-bag disposal portOnce-through or recirculating airflow
