Industry-Specific Cleanroom Equipment
Insect Light Trap

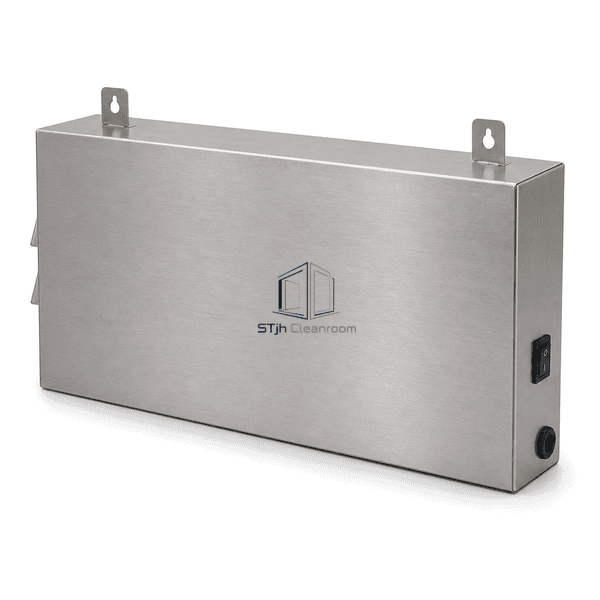

A wall-mounted stainless UV-A insect monitor that attracts flying insects to a concealed, replaceable adhesive capture board without an exposed high-voltage grid.
- Shielded UV-A Lamps
- Adhesive Capture Board
- Stainless Housing
- Tool-Free Service Panel
Product Introduction

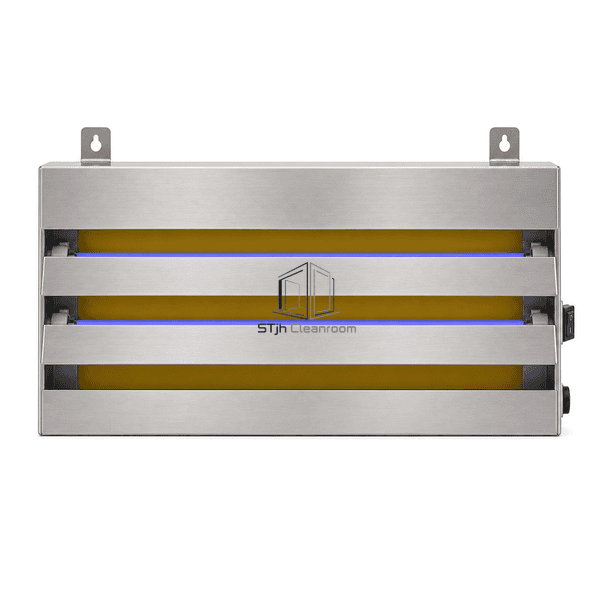

The insect light trap uses shielded UV-A lamps behind a louvred stainless front to attract flying insects in food handling and clean support areas. Insects are retained on a removable adhesive board rather than fragmented by an electric grid. A hinged service cover gives staff direct access to the lamps and board while the enclosed housing helps keep captured material out of view from normal working angles.
Key Features

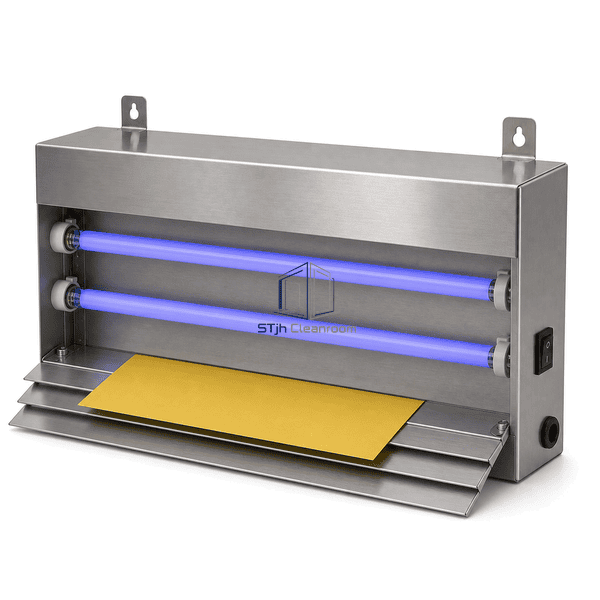

A full-width adhesive board retains insects intact for cleaner disposal and routine monitoring.

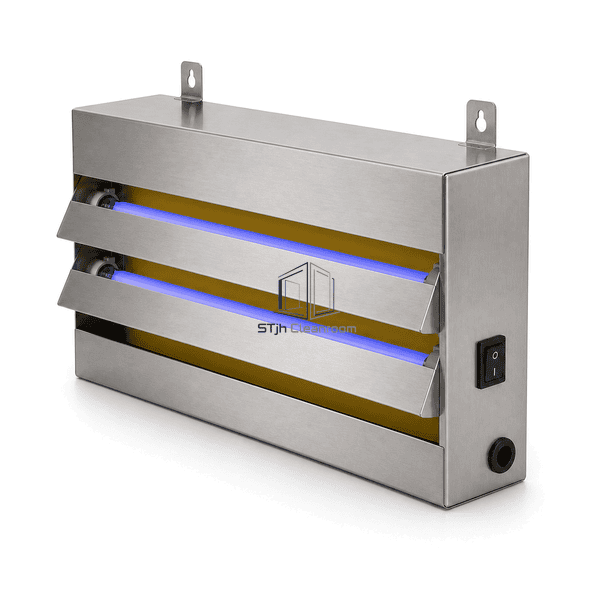

The hinged front opens without removing the wall-mounted backplate from service.
Smooth stainless exterior surfaces tolerate frequent wipe-down in hygiene-sensitive areas.
Customer Product Concerns
Flying-insect monitoring must be effective without scattering fragments or creating difficult-to-clean electrical hardware near exposed processes.
Electric-grid units can fragment insects near sensitive products.A concealed adhesive board captures insects intact without an exposed killing grid.
Unshielded lamps remain visible from food preparation lines.Angled stainless louvres direct UV-A output while screening the capture compartment.
Board and lamp changes can interrupt sanitation routines.A front-hinged service panel provides direct access while the backplate stays installed.
Painted or plastic housings can become damaged by repeated cleaning.A brushed stainless housing provides a smooth durable external surface.
Typical Applications
Food production entrances and hygiene lobbiesPackaging and ingredient preparation roomsCommercial kitchens and bakeriesPharmaceutical support and warehouse zones
Technical Parameters
Common configurable construction values for a hygienic wall-mounted adhesive insect light trap are listed below.
| Core Material | 304 stainless steel housing with shatter-resistant UV-A lamps and removable adhesive board |
|---|---|
| Panel Thickness | 70-140 mm assembled housing depth |
| Effective Width | 450-700 mm illuminated capture width |
| Maximum Length | Up to 900 mm overall housing length |
| Steel Facing Thickness | 0.8-1.2 mm brushed stainless steel casing |
| Core Density | 7900-8000 kg/m³ for austenitic stainless steel housing components |
| Thermal Conductivity | 14-16 W/(m·K) for austenitic stainless steel |
| Surface Finish | Brushed stainless exterior with smooth folded edges and removable internal capture board |
| Joint Type | Hinged louvred front on a wall-mounted backplate with captive fastener and cable-entry grommet |
| Customization | Available based on the intended application and operating environment. |
Available Options
Two-lamp or four-lamp configuration15 W or 20 W shatter-resistant UV-A lampsWhite coated or 304 stainless housingWall, ceiling-suspended or freestanding mounting kit
Planning a Insect Light Trap specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
