Cleanroom Flooring Systems
Hygienic Cleanroom Vinyl Sheet Flooring
A low-emission homogeneous vinyl sheet developed for controlled environments where particle release, decontamination and sealed floor-to-wall transitions are primary concerns.
- Low-Particle Surface
- Heat-Welded Hygienic Seams
- Decontamination-Ready Finish
- Integral Coved Perimeter
Product Introduction
Hygienic cleanroom vinyl sheet flooring uses a dense, non-directional homogeneous PVC body with a smooth factory treatment designed to release soils without a separate wax layer. Wide rolls are fully adhered, routed and hot welded to create a continuous floor field. At room boundaries the same sheet can be formed over a cove former and terminated at the wall system, removing the sharp internal corner found at a conventional skirting joint. The cleanroom formulation prioritizes low particle emission, low outgassing and resistance to common chemical and vapor-phase decontamination routines.
Key Features
Low-emission formulation is suited to controlled environments with strict airborne contamination management.
Hot-welded seams and coved perimeters create accessible transitions for validated cleaning procedures.
The surface is selected for resistance to common disinfectants and hydrogen-peroxide decontamination cycles.
Customer Product Concerns
Cleanroom sheet flooring must control emissions and particles while remaining compatible with intensive disinfection and sealed room detailing.
Embossed or porous flooring retains residues after routine decontamination.A dense, smooth homogeneous surface provides fewer micro-textured retention points.

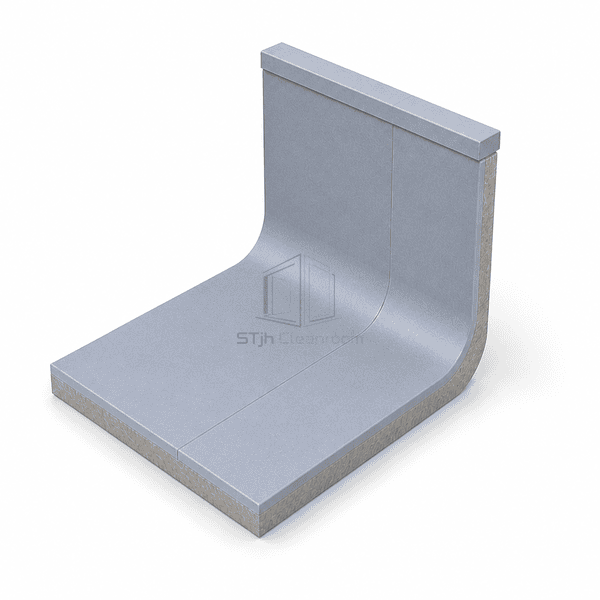

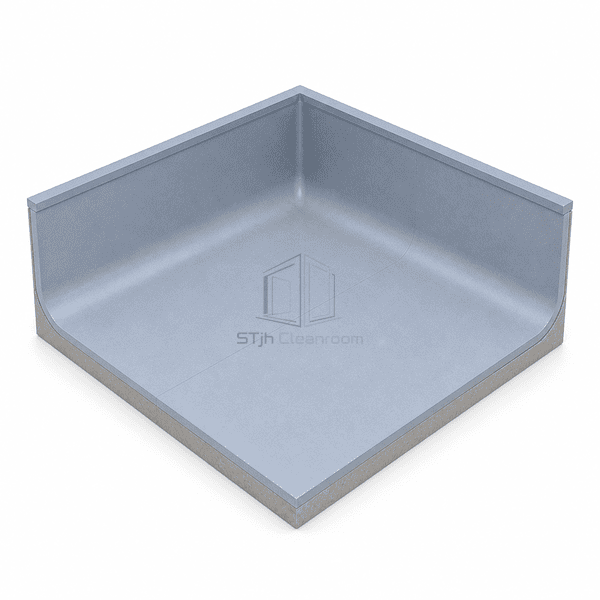

The floor-to-wall corner is difficult to wipe and inspect.Site-formed coving carries the sheet smoothly up the perimeter before it meets the wall finish.
Sheet seams open after repeated trolley movement and wet cleaning.Correct routing and compatible hot-welding rod fuse adjacent edges into a closed joint.
Vaporized disinfection agents discolor or soften general-purpose vinyl.The cleanroom formulation and seam components are selected for the planned chemical and decontamination cycle.
Typical Applications
Pharmaceutical cleanroomsBiotechnology laboratoriesMedical-device assembly roomsSterile compounding support areasControlled research suites
Technical Parameters
Representative dimensions and material data for homogeneous cleanroom vinyl sheet flooring are provided below.
| Core Material | Type I homogeneous compact PVC with low-emission plasticizer, mineral filler and color pigments |
|---|---|
| Panel Thickness | 2.0 mm full-thickness homogeneous construction |
| Effective Width | 2000 mm standard cleanroom sheet width |
| Maximum Length | Up to 20000 mm standard roll length |
| Steel Facing Thickness | 0 mm; the cleanroom vinyl sheet has no steel facing |
| Core Density | Approximately 1300–1320 kg/m³ based on common 2.0 mm cleanroom sheet weights |
| Thermal Conductivity | Approximately 0.25 W/(m·K) for the homogeneous vinyl body |
| Surface Finish | Smooth non-directional matte finish with factory cross-linked maintenance treatment |
| Joint Type | Fully adhered and hot-welded sheet seams with site-formed coved wall transitions |
| Customization | Available based on the intended application and operating environment. |
Available Options
Cleanroom neutral and wayfinding colorsMatching hot-welding rodCove former, cap strip and wall transition profilesConductive or standard adhesive system to suit room requirements
Planning a Hygienic Cleanroom Vinyl Sheet Flooring specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
