FOUP Cleaning System

An enclosed wash-rinse-dry system that removes contamination from 300 mm FOUP and compatible carrier surfaces before controlled return to production.

Precision Jet Cleaning
High-Efficiency Drying
Enclosed Carrier Handling
Configurable Automation Interface

Request a Quote Browse Products

Product Introduction

The FOUP cleaning system integrates carrier loading, controlled opening, precision spray cleaning, rinse management and high-efficiency drying inside a stainless process enclosure. Dedicated chambers separate wet and dry stages to reduce carryover, while filtered air, drainable surfaces and accessible utility panels support repeatable contamination-control operation. Manual and automated handling arrangements can be configured around the fab material-flow strategy.

Key Features

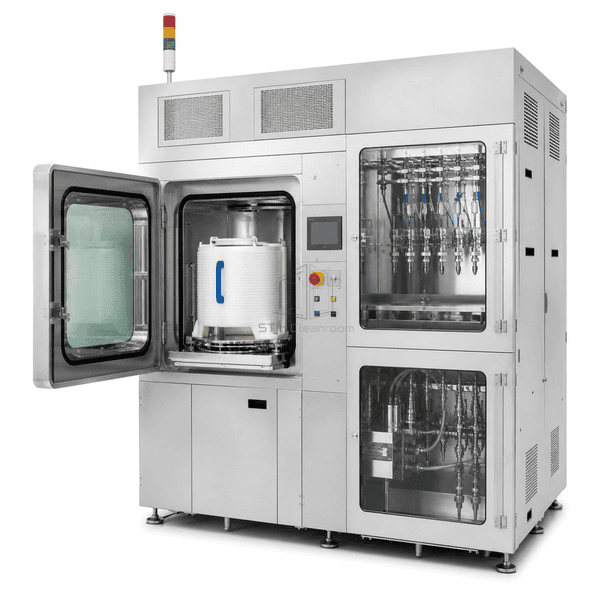

Directed liquid jets reach exterior surfaces, door structures and internal carrier features.

High-efficiency hot-air or air-knife drying reduces residual moisture and water traps.

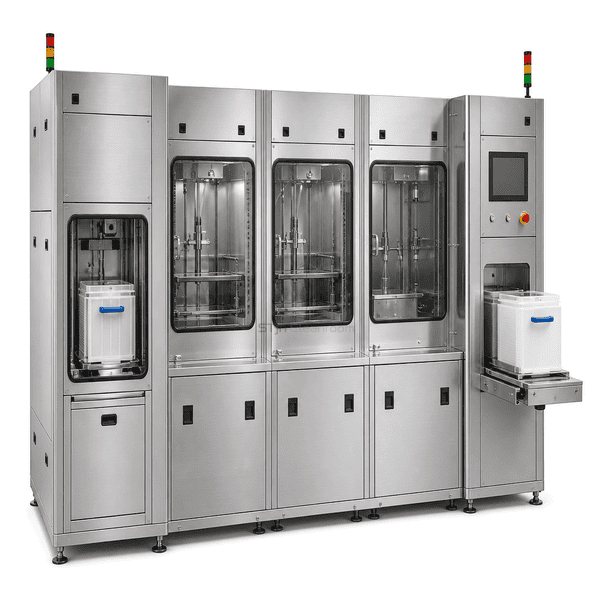

Separated process zones limit cross-contamination between incoming and cleaned carriers.

Enclosed loading and configurable automation interfaces support controlled FOUP transfer.

Customer Product Concerns

Reusable wafer carriers must be cleaned and completely dried without introducing new particles, trapped moisture or handling damage.

Complex FOUP geometry creates inaccessible particle and moisture traps.Multi-directional jet manifolds and staged rinsing reach internal recesses and door features.

Residual water can contaminate the next stored wafer lot.Controlled heated-air and air-knife drying targets hidden surfaces before release.

Manual opening and transfer can cross-contaminate clean and dirty carriers.Separated loading and process chambers define a controlled carrier path.

Cleaning equipment can become a bottleneck in a large FOUP fleet.Parallel chambers and automated recipes increase throughput while maintaining repeatable cycles.

Typical Applications

300 mm FOUP fleet cleaningFOSB carrier maintenanceSemiconductor contamination-control programsCarrier turnaround between wafer lots

Technical Parameters

Typical construction values for an enclosed FOUP wash and dry system are listed below.

Core Material	304 or 316L stainless steel process enclosure with engineering-polymer FOUP fixtures
Panel Thickness	40-80 mm insulated service and process panels
Effective Width	1800-2600 mm equipment width
Maximum Length	Up to 3500 mm equipment depth
Steel Facing Thickness	1.2-2.0 mm stainless steel outer and process-chamber panels
Core Density	7850-8000 kg/m³ for stainless process components
Thermal Conductivity	14-17 W/(m·K) for stainless process chambers
Surface Finish	Brushed external stainless steel with smooth passivated wet-process surfaces
Joint Type	Gasketed process doors with welded drainable chambers and removable utility manifolds
Customization	Available based on the intended application and operating environment.

Available Options

Manual or AMHS-compatible loadingParallel wash and dry chambersFOUP and FOSB fixturesRecipe and host-communication interface
