Cleanroom Wall and Ceiling Systems
External Rounded Cleanroom Corner Profile
A convex aluminum corner cover that protects projecting cleanroom edges while providing a smooth radiused surface for cleaning and contact safety.
- Convex 50 or 70 mm radius
- Covers vulnerable projecting corners

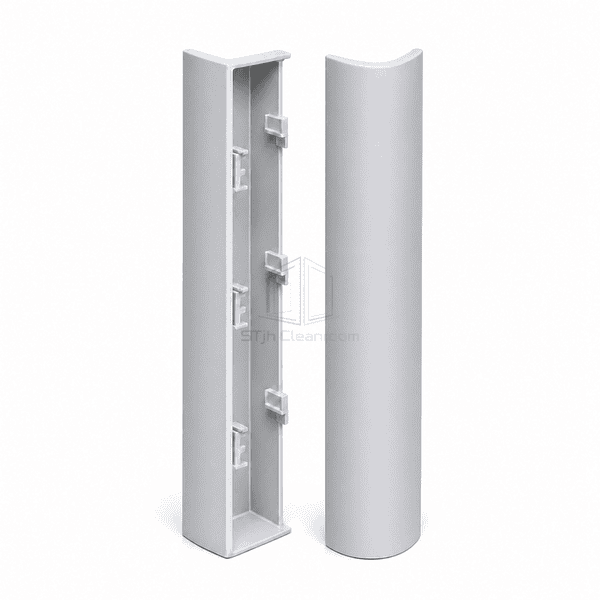

- Concealed backing and clip-on face
- Smooth powder-coated aluminum finish
Product Introduction

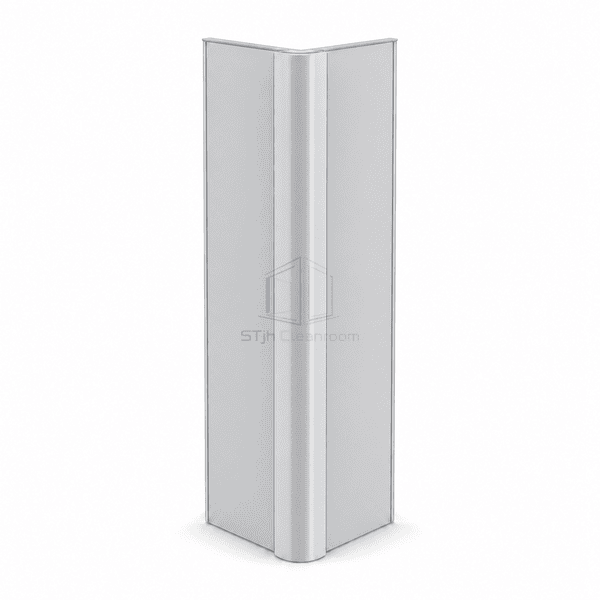

The External Rounded Cleanroom Corner Profile wraps outward-facing wall returns, columns and enclosure corners with a continuous convex radius. Unlike a square angle trim, it removes the sharp exposed edge that is most likely to be struck by carts or personnel. A concealed fixing base supports the curved aluminum cover, producing a resilient, wipeable surface with no prominent screw heads on the room side.
Key Features
The rounded face deflects glancing contact better than a thin square edge.
Concealed attachment hardware maintains a smooth visible surface.

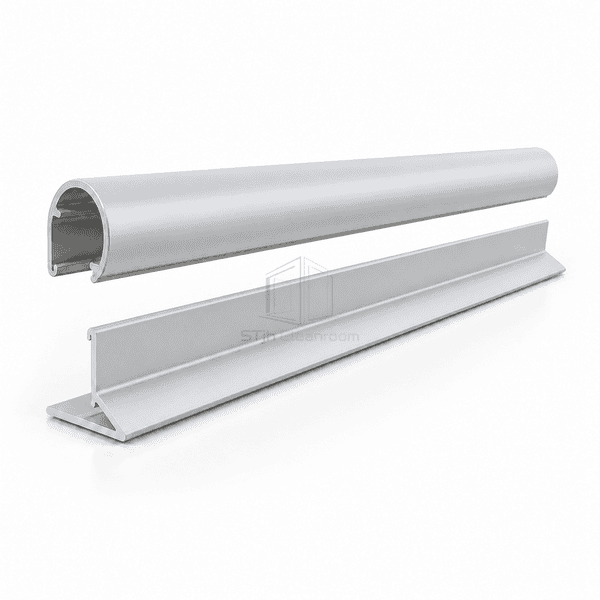

Extruded aluminum keeps the radius consistent from end to end.
Sealable perimeter edges close the transition to adjacent wall panels.
Customer Product Concerns
Projecting corners receive direct contact and are highly visible, so they need protection without introducing bulky, difficult-to-clean guards.
Sharp outside corners can damage garments or cause discomfort when accidentally contacted.The convex radius replaces the narrow edge with a wider, smoother contact surface.
Cart traffic chips coatings at exposed wall returns.A continuous aluminum cover shields the panel edges beneath the corner profile.

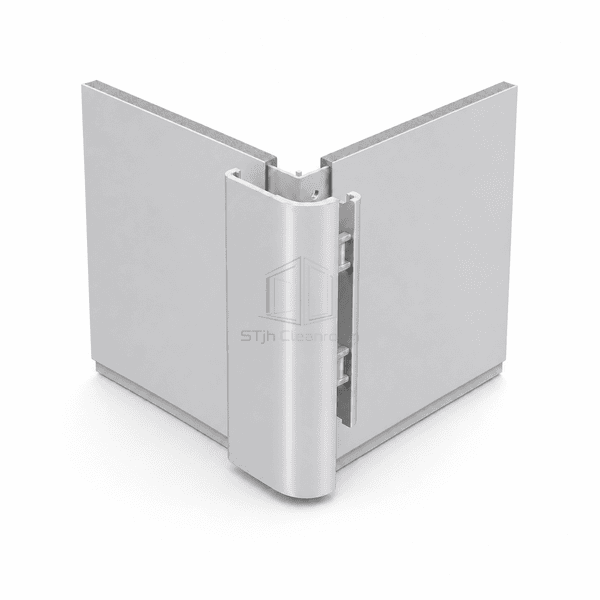

Surface-mounted corner guards often leave visible screws and ledges.The curved cover clips over a hidden base, keeping the exposed face uncluttered.
Hand-finished external radii vary along tall wall and column corners.A precision extrusion maintains a repeatable curve over the full profile length.
Typical Applications
External corners of cleanroom partitionsColumn and pilaster enclosuresTrolley routes and material airlocksEquipment housing cornersDoor recess external returns
Technical Parameters
The external rounded profile is identified by its convex radius. It is not the square 90-degree external angle listed separately in this product range.
| Core Material | 6063 aluminum external cove face with concealed backing profile |
|---|---|
| Panel Thickness | N/A — not applicable to an external rounded trim |
| Effective Width | 50 or 70 mm external corner radius |
| Maximum Length | 3000 mm |
| Steel Facing Thickness | N/A — not applicable to an aluminum corner profile |
| Core Density | N/A — no insulated core; aluminum alloy density is approximately 2700 kg/m³ |
| Thermal Conductivity | N/A — no insulated core; aluminum alloy is approximately 200 W/(m·K) |
| Surface Finish | White powder-coated or anodized aluminum |
| Joint Type | Clip-on convex cover over a concealed external-corner backing section |
| Customization | Available based on the intended application and operating environment |
Available Options
50 mm convex radius70 mm convex radiusWhite powder-coated finishExternal end and transition pieces
Planning a External Rounded Cleanroom Corner Profile specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
