Cleanroom Drainage, Hygiene and Safety Equipment
Explosion Vent
A rupture-membrane vent that opens rapidly to relieve explosion pressure from process vessels and dust collectors.
- Fast Rupture-Membrane Opening
- Hygienic Stainless Frame
- Low-Leakage Perimeter Seal
- Optional Burst Detection
Product Introduction

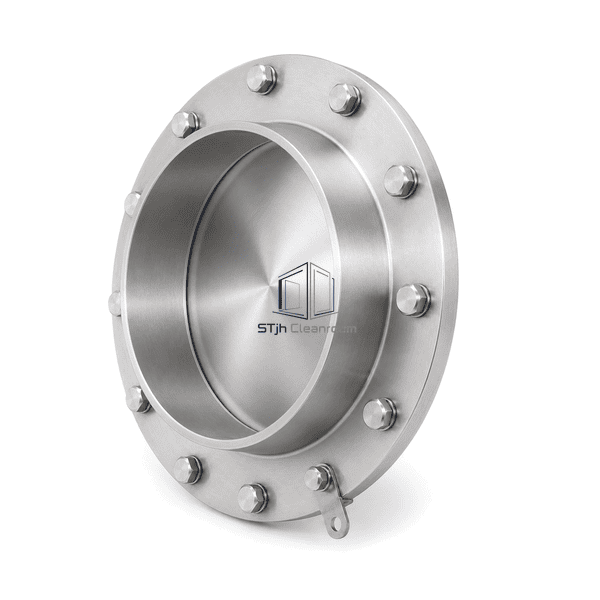

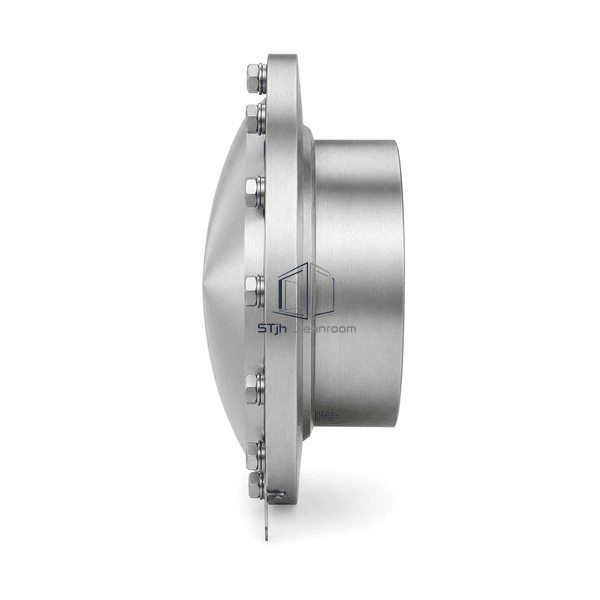

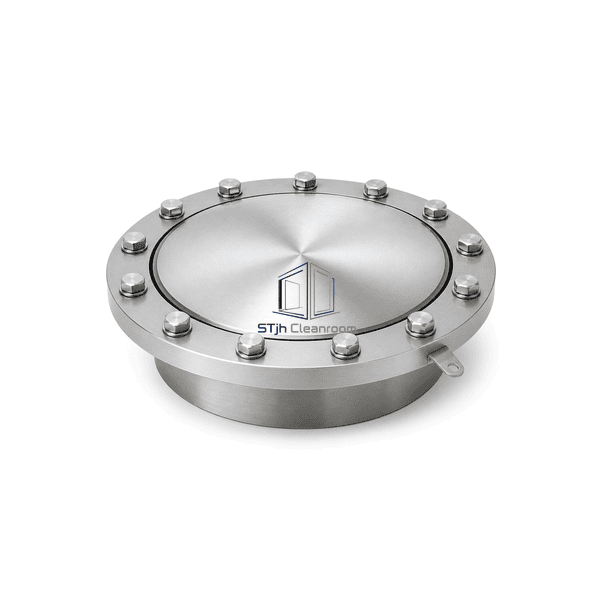

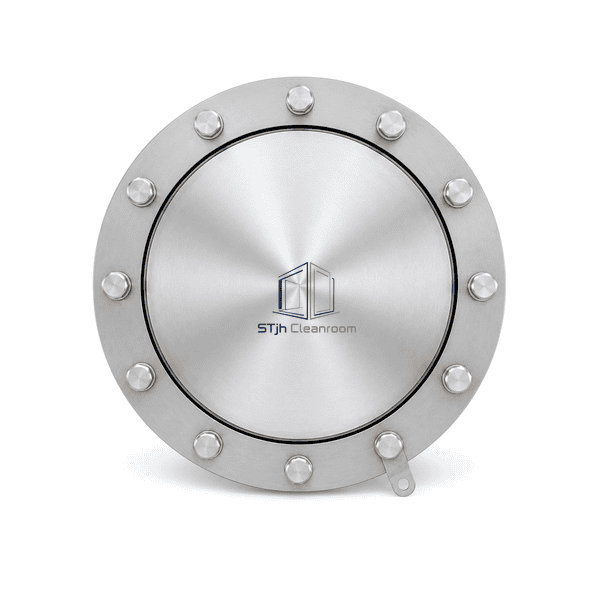

The explosion vent mounts over a calculated relief opening on a vessel, collector or duct. A scored or domed membrane remains sealed under normal pressure and ruptures at its specified burst condition, providing a large low-inertia discharge area. The clamping frame, gasket and support arrangement are selected for pressure cycling, temperature and cleaning conditions.
Key Features
A perimeter gasket maintains normal process containment.
Stainless construction supports hygienic and corrosion-sensitive service.
A burst sensor can initiate shutdown and alarm sequences.
Customer Product Concerns
Combustible dust equipment needs rapid pressure relief without allowing normal product leakage or contamination around the opening.
A heavy door responds too slowly to a fast pressure rise.A low-inertia rupture membrane opens across its designed relief area.
Pressure cycling fatigues an unsuitable vent element.Membrane profile and support are selected for the normal vacuum and pressure cycle.
Product and wash liquid can collect at rough frame joints.A stainless hygienic frame and continuous compatible gasket reduce crevices.
A burst event must stop connected equipment.An optional rupture indicator sends an immediate interlock signal.
Typical Applications
Dust collectorsPowder process vesselsHygienic conveying systemsFilter and dryer equipment
Technical Parameters
Typical physical construction is listed below; vent area, burst pressure and discharge routing require process-specific explosion-protection engineering.
| Core Material | AISI 304 or 316L stainless rupture membrane and clamping frame |
|---|---|
| Panel Thickness | 0.2-1.0 mm engineered rupture membrane |
| Effective Width | 150-1000 mm nominal opening width |
| Maximum Length | Up to 1500 mm vent dimension |
| Steel Facing Thickness | 0.2-1.0 mm rupture membrane surface |
| Core Density | 7900-8000 kg/m³ for stainless components |
| Thermal Conductivity | 14-16 W/(m·K) for stainless components |
| Surface Finish | Satin, pickled or electropolished stainless |
| Joint Type | Gasketed bolted clamping frame with replaceable rupture element |
| Customization | Available based on the intended application and operating environment. |
Available Options
Flat or domed membrane316L hygienic frameBurst indicatorCircular or rectangular opening
Planning a Explosion Vent specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
