Industry-Specific Cleanroom Equipment
Cleanroom Wet Bench
A ventilated polypropylene wet-processing station integrating chemical baths, rinsing utilities and service access for controlled semiconductor and precision cleaning workflows.
- Chemical-Resistant Construction
- Controlled Rear Exhaust
- Modular Process Baths
- Serviceable Utility Cabinet
Product Introduction

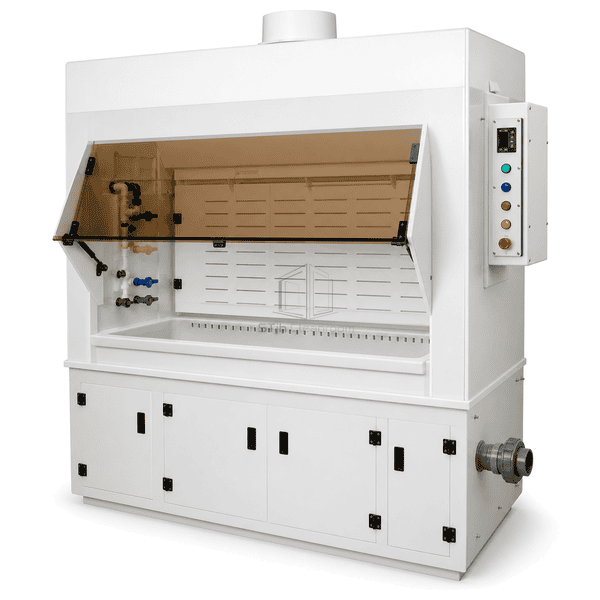

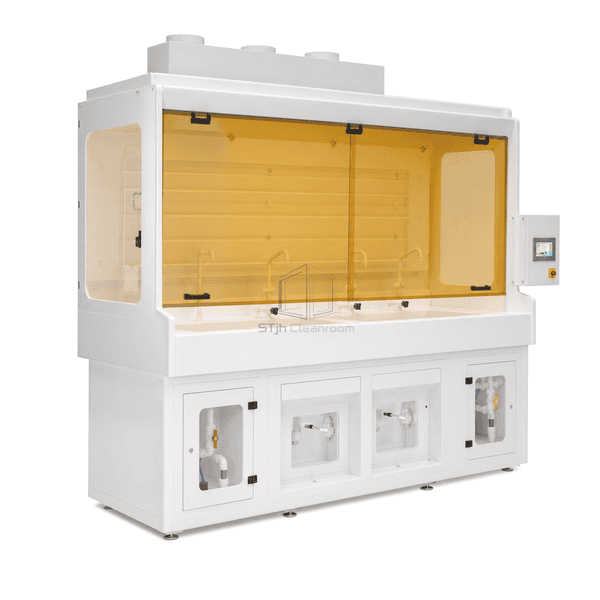

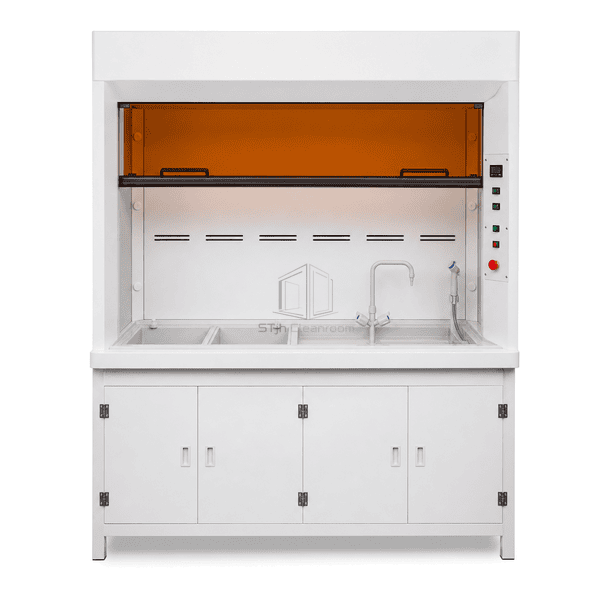

The cleanroom wet bench provides an enclosed, exhausted work zone for wafer cleaning, etching and rinsing. Welded polypropylene surfaces resist common process chemicals, while rear baffles draw vapors away from the operator. Baths, cascade rinse modules, DI-water fittings, spray tools and controls can be arranged around the required process sequence, with lower access doors separating utilities from the working deck.
Key Features
Rear and upper exhaust paths capture vapors across the process zone.

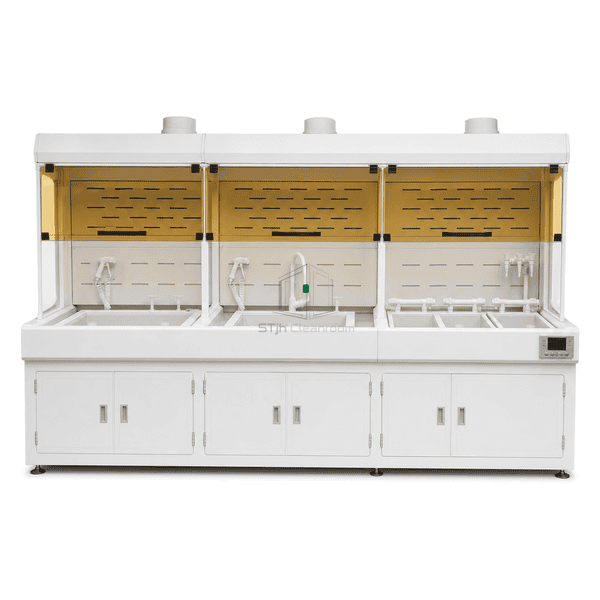

Modular bath openings accommodate heated process tanks, overflow rinses and sinks.
Accessible lower compartments simplify inspection of drains, valves and utility connections.
Customer Product Concerns
Wet processes require chemical compatibility, reliable vapor capture and clean utility routing without compromising operator access.
Acid and alkali exposure rapidly degrades unsuitable bench materials.Chemical-compatible polypropylene or optional PVDF contact surfaces are selected for the process chemistry.
Fumes escape when exhaust distribution is uneven.Adjustable rear baffles and top exhaust connections draw air uniformly across the working zone.
Mixed rinse and process steps create inefficient handling paths.Baths, faucets and spray tools are arranged in the actual operating sequence.
Hidden leaks and blocked drains are difficult to service.Front-access utility compartments provide direct access to valves, unions and drain lines.
Typical Applications
Semiconductor wafer cleaning and etchingPhotovoltaic and substrate processingPrecision parts chemical cleaningResearch cleanroom wet chemistry
Technical Parameters
Typical construction values for a modular polypropylene cleanroom wet bench are listed below.
| Core Material | Welded chemical-resistant polypropylene with optional PVDF process-contact components |
|---|---|
| Panel Thickness | 8-20 mm polypropylene panels |
| Effective Width | 1200-3000 mm work-zone width |
| Maximum Length | Up to 6000 mm modular bench length |
| Steel Facing Thickness | 1.0-1.5 mm for optional stainless utility reinforcement |
| Core Density | 900-920 kg/m³ for polypropylene construction sheet |
| Thermal Conductivity | 0.20-0.24 W/(m·K) for polypropylene construction |
| Surface Finish | Smooth natural-white welded polypropylene with transparent amber safety sash |
| Joint Type | Hot-gas welded enclosure seams with gasketed access panels, union utility fittings and flanged exhaust connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Open or enclosed sash configurationHEPA-supplied laminar airflow hoodQuartz, PP or PVDF process bathsPLC controls and automated chemical handling
Planning a Cleanroom Wet Bench specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
