Cleanroom Light Switch

A low-profile wall switch that combines a wipe-clean actuator with a flush gasketed plate and enclosed wiring box.

Sealed Wipe-Clean Actuator
Flush Stainless Plate
Clear Circuit Identification
Enclosed Rear Terminals

Request a Quote Browse Products

Product Introduction

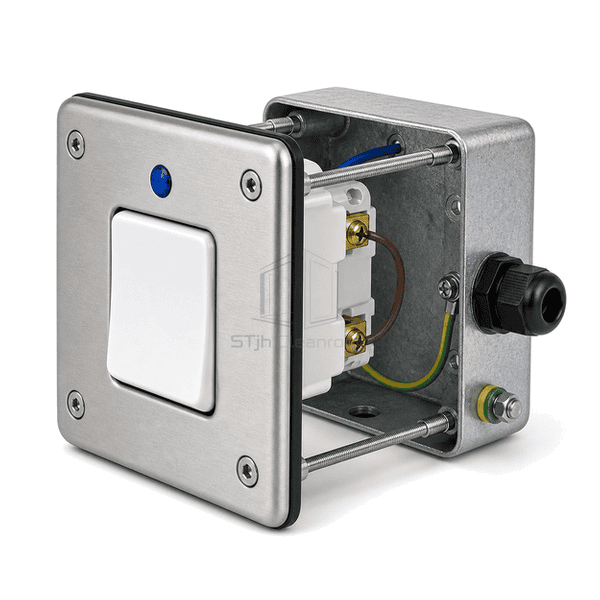

This switch presents a sealed rocker, membrane key or touch surface within a stainless cleanroom plate. The broad flange closes the wall opening and the rear box contains terminals away from the room cavity. Laser-etched function labels and a small status indicator can be incorporated without applied paper labels or projecting pilot devices.

Key Features

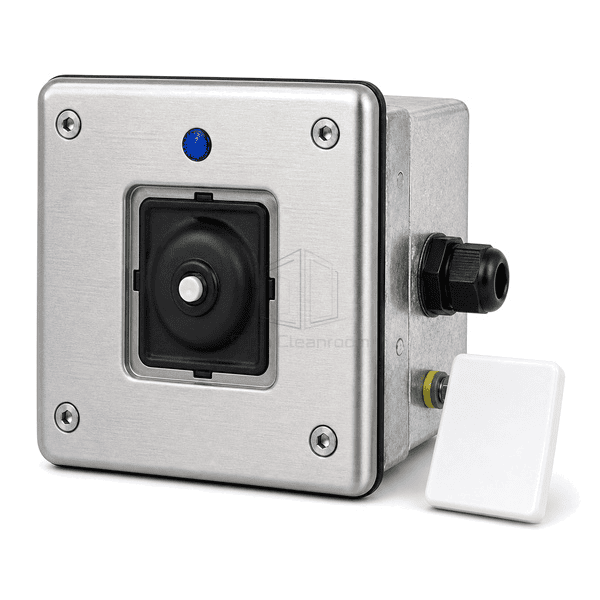

A membrane or gasketed rocker prevents an open slot around the moving control.

The flush plate aligns with modular wall panels for direct wiping.

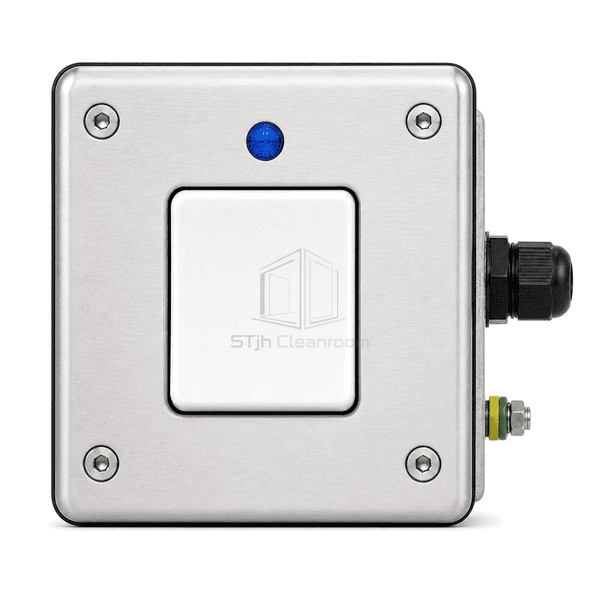

Permanent engraving identifies the controlled lighting zone.

An optional indicator shows circuit state without a separate wall penetration.

The enclosed rear mechanism protects terminal screws from cleaning moisture.

Customer Product Concerns

A wall switch is touched frequently and must remain readable, sealed and operable with cleanroom gloves.

Narrow rocker gaps accumulate skin oils and disinfectant.A continuous membrane or sealed actuator removes the open perimeter slot.

Printed adhesive labels peel after chemical cleaning.Laser engraving provides permanent circuit identification.

Small switches are difficult to operate through gloves.A broad tactile actuator provides a clear positive response.

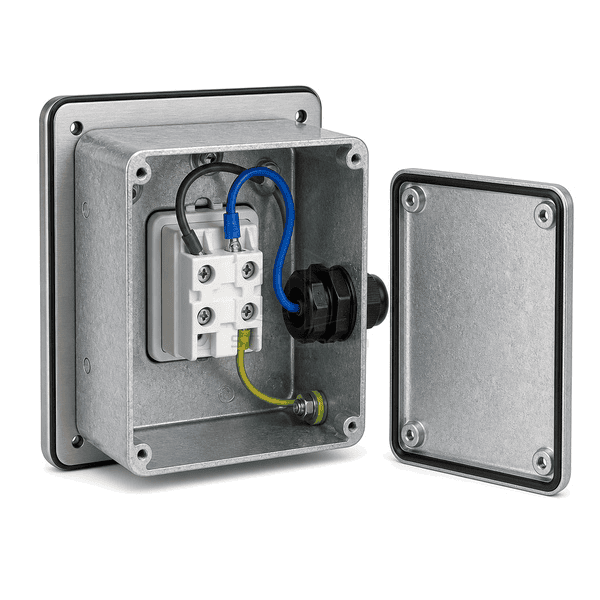

Cleaning fluid reaches exposed rear terminals.A sealed rear box and gland enclose the wiring connection.

Typical Applications

Local cleanroom lighting switchingAirlock local switchingLaboratory task-light circuitsMaintenance override points

Technical Parameters

Typical configurable construction ranges for a cleanroom light switch are listed below.

Core Material	Stainless front plate with sealed polymer membrane or rocker, switch mechanism and enclosed steel back box
Panel Thickness	1.5-3.0 mm room-side plate thickness
Effective Width	86-200 mm front-plate width
Maximum Length	Up to 260 mm plate height for multi-control layouts
Steel Facing Thickness	1.5-3.0 mm SUS304 or SUS316L front plate
Core Density	Approximately 7900-8000 kg/m³ for the stainless front plate
Thermal Conductivity	14-16 W/(m·K) for the stainless plate
Surface Finish	Fine-brushed stainless or white coated face with engraved legends and colored indicator
Joint Type	Flush plate with concealed gasket, sealed actuator and gland-connected rear switch box
Customization	Available based on the intended application and operating environment.

Available Options

Single or multi-gang controlMembrane, rocker or capacitive touchIlluminated status indicatorMomentary or maintained contact
