Cleanroom Lighting and Electrical Equipment

Cleanroom Inspection Light

A mobile high-CRI task light with a sealed adjustable head for examining surfaces, seals and components without a fixed ceiling installation.

High-CRI Inspection Beam
Sealed Adjustable Head
Wipe-Clean Mobile Stand
Low-Heat LED Source

Request a Quote Browse Products

Product Introduction

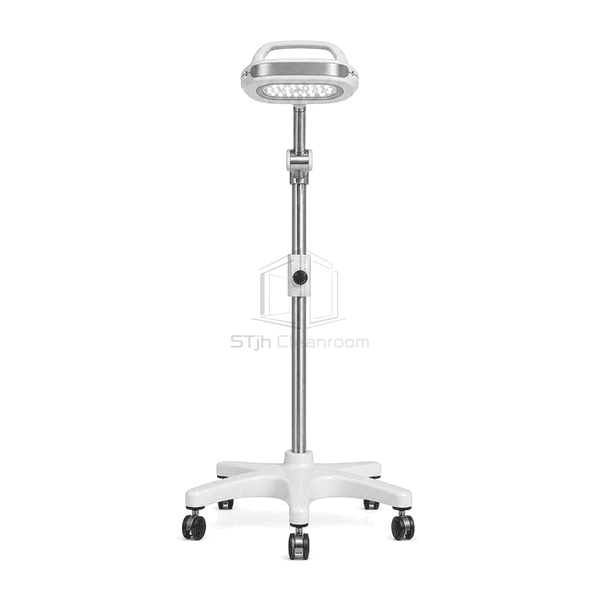

The inspection light concentrates a neutral-white LED beam onto a small work or maintenance area. Its round or bar-shaped head pivots on a smooth arm, while the enclosed driver and weighted wheeled base keep cables organized. Stainless tubing and cleanable polymer controls allow the unit to move between inspection points without introducing fabric shades, exposed springs or cooling fans.

Key Features

High color rendering helps reveal surface staining, scratches and seal discontinuities.

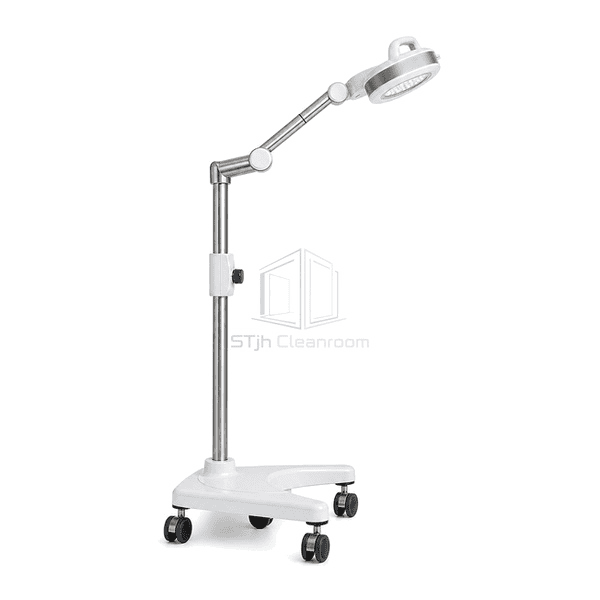

A pivoting sealed head directs the beam without touching the inspected item.

The enclosed LED source produces less radiant heat than a conventional task lamp.

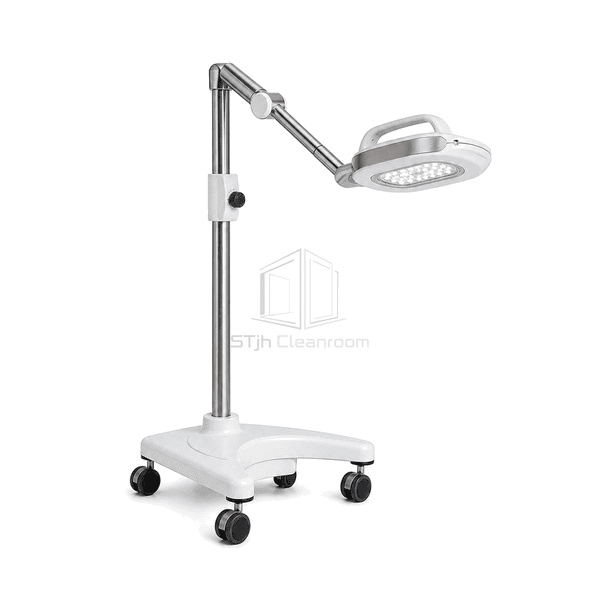

A low-center-of-gravity base remains stable while passing over floor joints.

Smooth tubing and enclosed joints simplify wipe-down between rooms.

Customer Product Concerns

Inspection lighting must reveal small defects while remaining mobile, stable and easy to clean around articulated joints.

Ceiling illumination casts shadows inside equipment recesses.An adjustable local head directs high-CRI light from the required angle.

Open spring arms capture particles and cleaning fluid.Enclosed pivots and smooth tubular supports replace exposed balancing springs.

A lightweight stand tips when the head is extended.A weighted wide base keeps the center of gravity within the wheel footprint.

Hot lamps can affect sensitive parts or operator comfort.Efficient LEDs provide bright inspection light with lower radiant heat.

Typical Applications

Panel-joint inspectionEquipment maintenance checksSurface-finish examinationPrecision assembly verification

Technical Parameters

Typical configurable construction ranges for a portable cleanroom inspection light are listed below.

Core Material	SUS304 tubular stand with aluminum LED head, sealed electronic driver and polycarbonate optical window
Panel Thickness	35-70 mm sealed inspection-head depth
Effective Width	120-400 mm luminous head width
Maximum Length	Up to 1800 mm overall adjustable stand height
Steel Facing Thickness	1.0-1.5 mm SUS304 tubing and base cover
Core Density	Approximately 7900-8000 kg/m³ for austenitic stainless support material
Thermal Conductivity	14-16 W/(m·K) for the stainless support structure
Surface Finish	Fine-brushed stainless stand with white or silver sealed LED head and clear optic

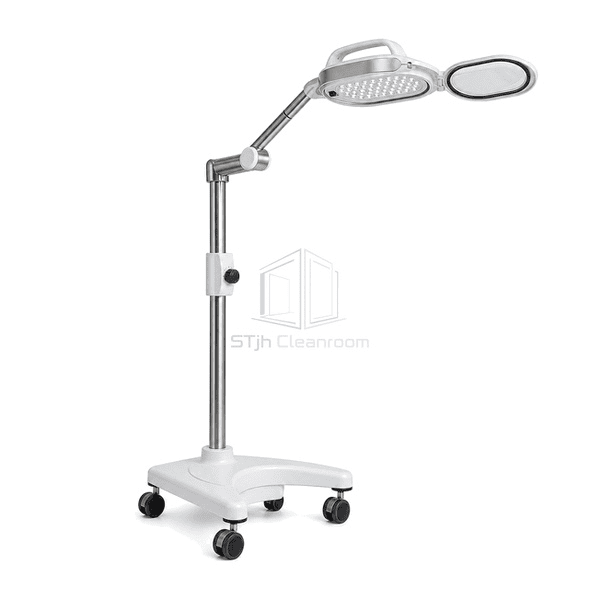

Joint Type	Enclosed friction pivots with gasketed optical window and smooth cable-managed support tube
Customization	Available based on the intended application and operating environment.

Available Options

Mobile base or wall armSpot, flood or adjustable beamBattery or corded powerMagnifying lens attachment

Planning a Cleanroom Inspection Light specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
