Cleanroom Wall and Ceiling Systems
Cleanroom Ceiling Access Panel
A flush, gasketed metal ceiling hatch that gives maintenance teams controlled access to HVAC, electrical and utility spaces above sealed cleanroom ceilings.

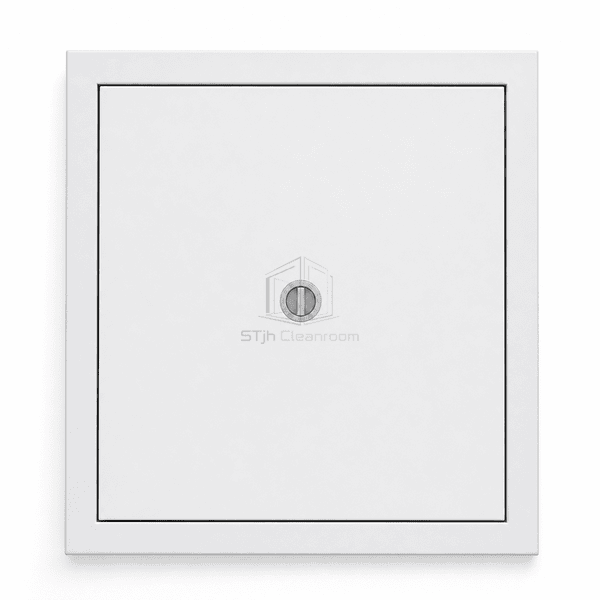

- Flush Ceiling Face

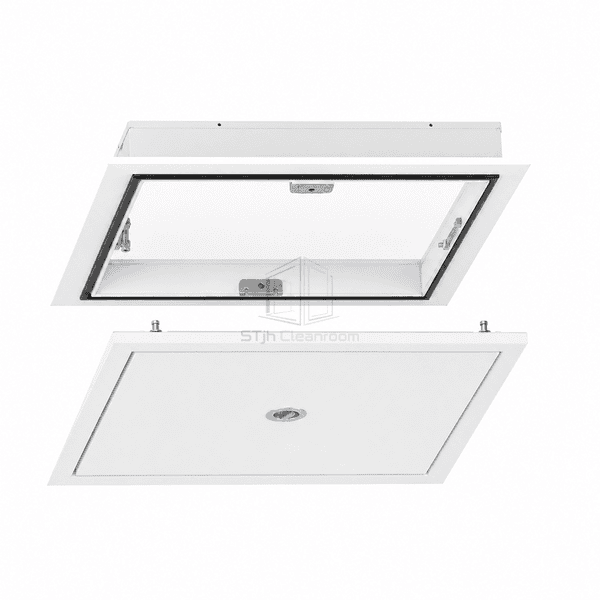

- Full Perimeter Gasket

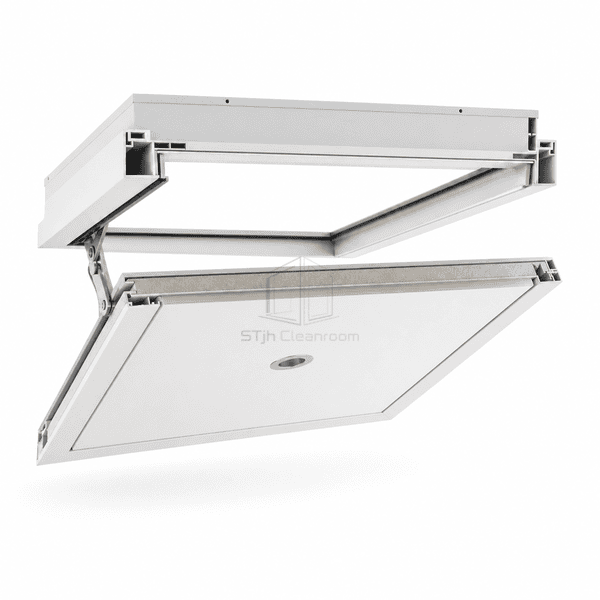

- Concealed Hinges

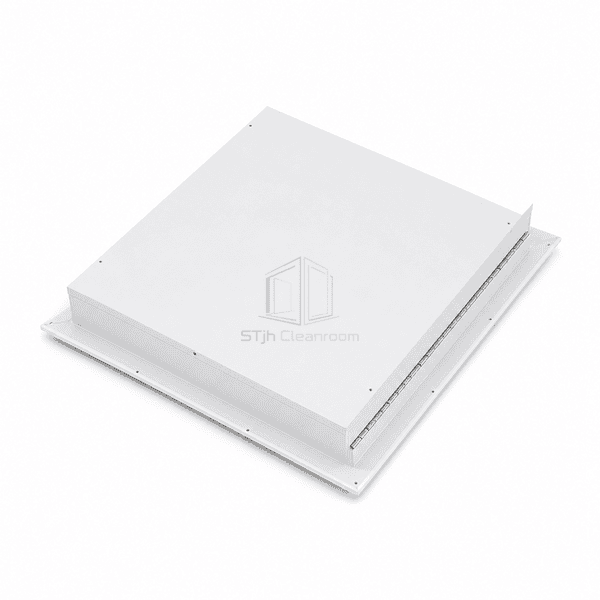

- Removable Service Door
Product Introduction
Cleanroom Ceiling Access Panels provide a permanent service opening through sealed modular or framed ceilings. A flush metal door closes against a continuous rubber gasket, while concealed hinges and a push catch or hidden lock keep hardware away from the exposed room face. The leaf can be removed for larger maintenance tasks and is retained by a rigid frame that preserves the ceiling opening. Powder-coated galvanized steel suits general interiors, with antibacterial coating, plastic-coated steel or stainless steel available for demanding cleaning areas.
Key Features
A continuous perimeter gasket limits air leakage around the closed ceiling opening.
Concealed hinges and latches keep routine cleaning surfaces simple and unobstructed.
Removable leaves increase the usable service opening when equipment must pass through.
Single- and double-door arrangements cover compact inspection points and larger maintenance zones.
Customer Product Concerns
Ceiling hatches must give sufficient maintenance access without sagging, leaking air or creating exposed hardware over a controlled room.
A conventional hatch leaves an irregular gap that leaks conditioned air into the plenum.A rigid frame and full rubber gasket maintain a constant sealed perimeter when the door is closed.
Visible hinges and latches create difficult overhead cleaning points.Concealed hardware keeps the cleanroom-facing metal tray smooth.
A small fixed leaf obstructs tools and replacement components during service.The removable door releases from the concealed hinge system to expose the full framed opening.
Thin ceiling doors can distort and fall out of alignment.A reinforced metal tray and stable frame hold the gasket compression evenly around the opening.
Typical Applications
HEPA terminal maintenance accessCeiling valve and damper inspectionElectrical junction accessCleanroom ceiling plenum entryLaboratory utility service access
Technical Parameters
Typical flush metal ceiling access-panel dimensions and construction are listed below.
| Core Material | Flush galvanized-steel door tray and steel perimeter frame |
|---|---|
| Panel Thickness | Approximately 86 mm overall frame depth |
| Effective Width | 200–600 mm clear single-leaf width |
| Maximum Length | 1200 mm leaf height |
| Steel Facing Thickness | 0.9 mm door tray and 1.2 mm frame |
| Core Density | N/A — hollow reinforced metal access door |
| Thermal Conductivity | N/A — uninsulated service access panel |
| Surface Finish | White powder coat, antibacterial coating, plastic-coated steel or stainless steel |
| Joint Type | Flush concealed-hinge door with full perimeter rubber gasket and hidden latch |
| Customization | Available based on the intended application and operating environment |
Available Options
300 × 300 to 600 × 1200 mm sizesSingle or double doorPush catch or key lockAntibacterial or stainless steel finish
Planning a Cleanroom Ceiling Access Panel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
