Cleanroom Doors, Windows and Interlock Systems

Cleanroom Access Door Observation Window

A fixed flush vision panel engineered for cleanroom personnel doors, supporting safe two-way visibility without introducing exposed beads or ledges.

Two-Way Personnel Visibility
Flush Door Integration
Impact Safety Glass
Sealed Rounded Corners

Request a Quote Browse Products

Product Introduction

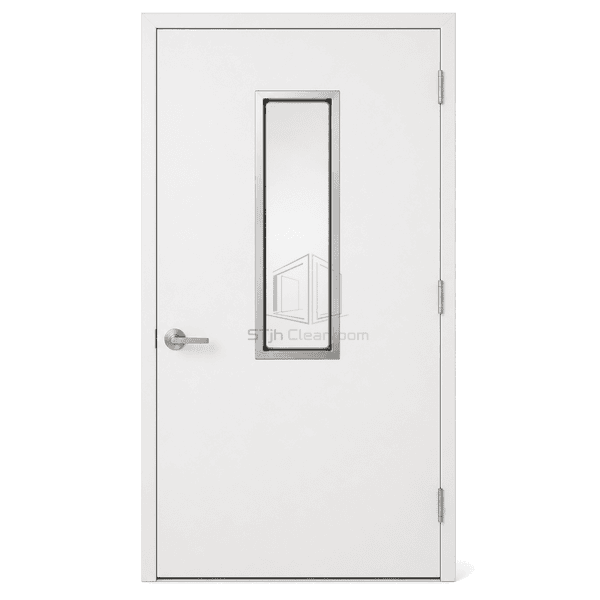

This observation panel is built into a hinged or sliding cleanroom access door at the operator sightline. The glazing unit is retained inside the reinforced door leaf, and both exposed faces finish flush for cleaning and traffic safety. Unlike a transfer-hatch pane, its proportions and mounting address personnel visibility, door movement, repeated closing shock and potential cart contact. Rectangular, narrow vertical and radiused-corner formats can be coordinated with the door construction.

Key Features

The viewing height and clear area support approaching personnel on both sides of the access door.

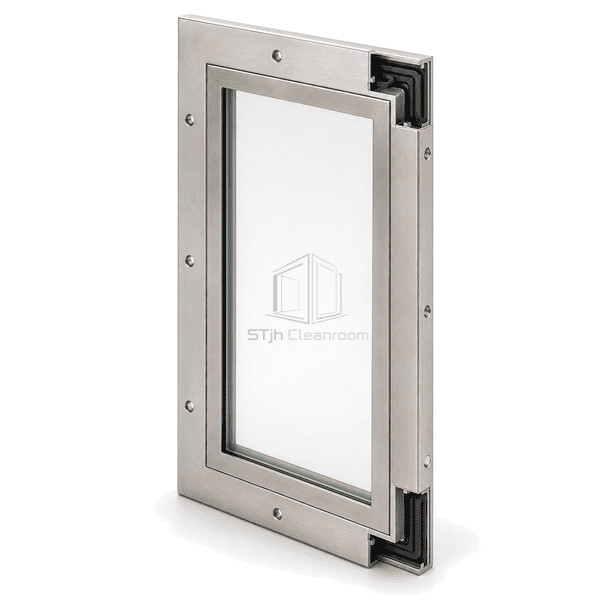

Flush retainers avoid projecting beads that can catch garments or cleaning cloths.

Resilient glazing support isolates the pane from repeated door-closing vibration.

Laminated or tempered safety-glass options address impact exposure in busy access routes.

Customer Product Concerns

Door glazing must remain aligned and sealed under repeated movement while providing a clear approach sightline and a safe impact response.

Personnel cannot see someone approaching from the opposite side of an opaque door.The pane is positioned at a practical sightline and provides clear two-way visibility.

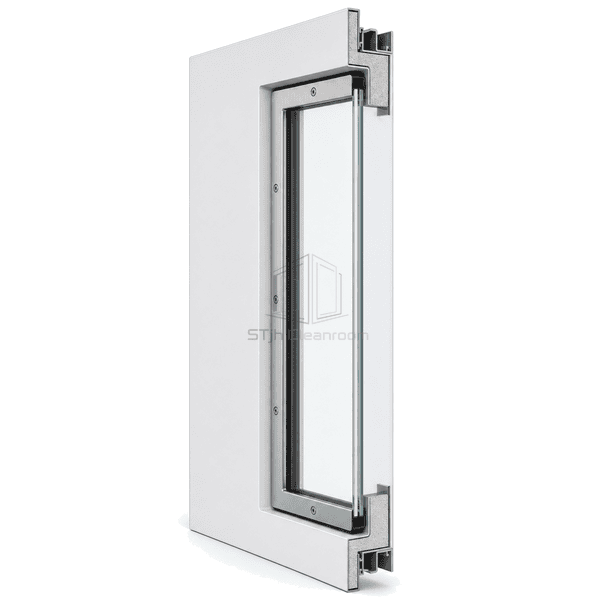

Repeated slamming loosens snap-in glazing beads and perimeter seals.A reinforced internal retainer and continuous resilient seals isolate the pane from door shock.

Square projecting trim catches garments and is difficult to wipe around.Flush or radiused exposed edges maintain a smooth door face.

Typical Applications

Cleanroom personnel doorsGowning-room access doorsLaboratory corridor doorsHospital clean-area entrances

Technical Parameters

Typical cleanroom access-door observation-window dimensions and materials are listed below.

Core Material	Tempered or laminated safety glass in a reinforced cleanroom door-leaf frame
Panel Thickness	6–16 mm glazing; 40–60 mm typical door-leaf frame depth
Effective Width	200–700 mm clear viewing width
Maximum Length	1800 mm vertical vision-panel height
Steel Facing Thickness	0.8–1.5 mm stainless or coated-steel door retainers
Core Density	Approximately 2500 kg/m³ for standard safety glass
Thermal Conductivity	Approximately 1.0 W/(m·K) for monolithic glass
Surface Finish	Clear glass with brushed stainless or color-matched flush door trim
Joint Type	Reinforced flush door-leaf aperture with concealed retainer and continuous resilient glazing seal
Customization	Available based on the intended application and operating environment

Available Options

Narrow vertical or rectangular paneTempered laminated safety glassRadiused or square cornersIntegral blind, smart or specialist glazing

Planning a Cleanroom Access Door Observation Window specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
