Chemical Leak Detector

A point or cable-based detector that identifies liquid chemical leaks beneath process tools, tanks and distribution piping.

Point or Cable Sensing
Early Localized Leak Warning
Replaceable Sensor Elements
Remote Alarm Integration

Request a Quote Browse Products

Product Introduction

The chemical leak detector monitors a selected point probe or sensing cable for contact with compatible liquids. A controller evaluates the sensor, identifies alarm and fault conditions, and sends local and remote outputs to operators, exhaust systems or chemical shutdown controls. Probe chemistry and cable construction are selected for the expected acid, base, solvent or water-based liquid.

Key Features

Distributed sensing cable covers long pipe and equipment perimeters.

Point probes target sumps, drip trays and low collection points.

Separate alarm and cable-fault supervision improve diagnostics.

Relay, analog or network outputs integrate with facility controls.

Customer Product Concerns

A small hidden chemical release can travel beneath equipment before operators see it, causing corrosion and extended shutdown.

Visual inspections miss leaks under enclosed tools.Sensing cable or point probes continuously monitor concealed collection paths.

One sensing material is not compatible with every chemical.Sensor chemistry is selected for the actual liquid inventory.

A broken cable can appear identical to a dry condition.Continuity supervision reports open-circuit and controller faults separately.

Operators need to isolate the source quickly.Zoned controllers or distance-locating cable identify the affected section.

Typical Applications

Wet process toolsChemical distribution roomsLaboratory benchesTank and pump skids

Technical Parameters

Typical controller construction is listed below; sensor material, cable length and zoning follow the chemical distribution layout.

Core Material	Powder-coated steel controller with chemical-compatible point probe or sensing cable
Panel Thickness	1.0-1.5 mm controller enclosure
Effective Width	150-350 mm controller width
Maximum Length	Up to 500 mm enclosure height
Steel Facing Thickness	1.0-1.5 mm steel enclosure panels
Core Density	7850 kg/m³ for steel enclosure parts
Thermal Conductivity	45-60 W/(m·K) for steel enclosure components
Surface Finish	Smooth light-gray coating with high-visibility status indicators

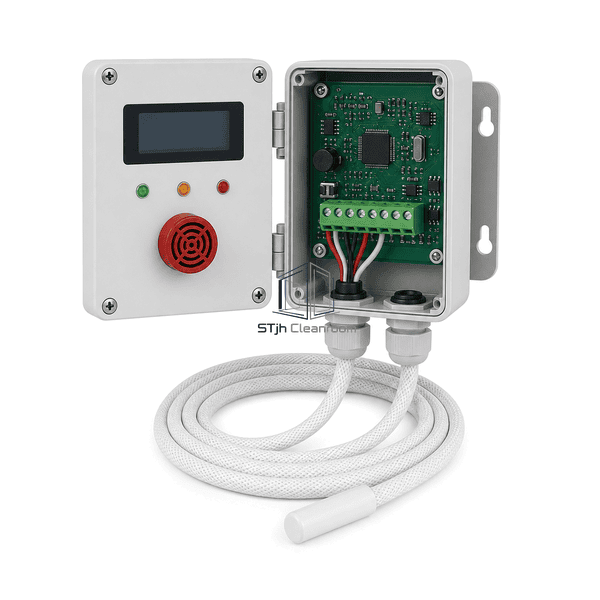

Joint Type	Gasketed controller with supervised plug terminals and detachable sensor connectors
Customization	Available based on the intended application and operating environment.

Available Options

Point probesSensing cableMulti-zone controllerRemote shutdown relays
