Cleanroom Installation Accessories
Ceiling Suspension Bracket
A galvanized angle-and-clevis fitting that anchors threaded suspension hardware and provides a pinned interface to cleanroom ceiling framing.
- Rigid Angle Plate
- Threaded-Rod Aperture
- Twin Clevis Ears
- Galvanized Finish
Product Introduction

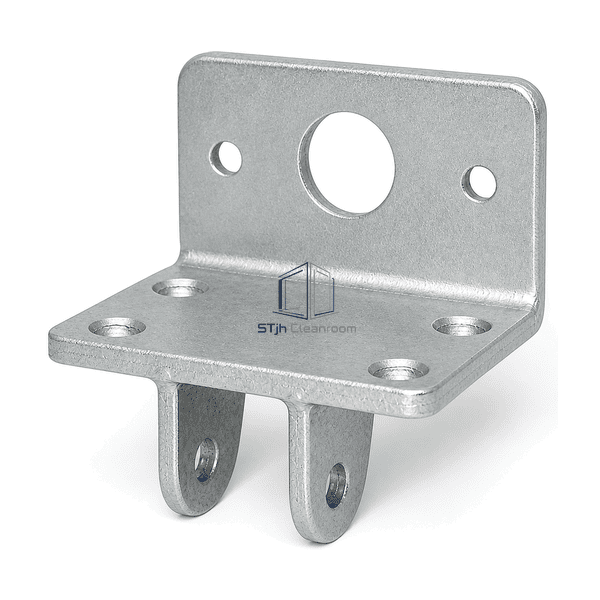

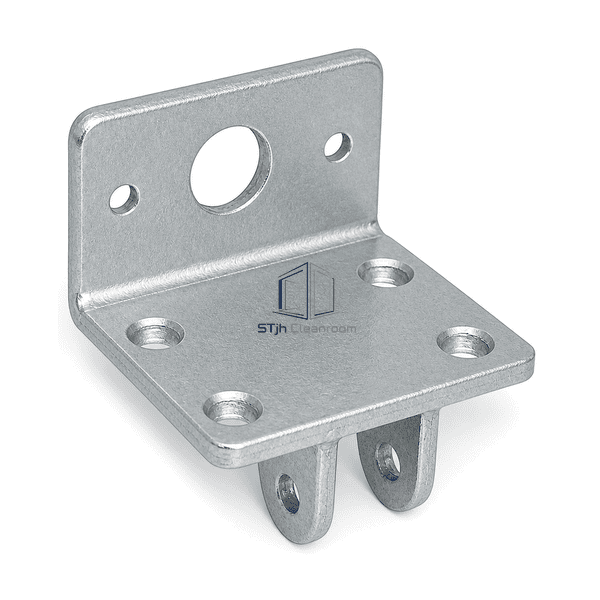

The ceiling suspension bracket is a welded steel fitting combining perpendicular mounting plates with a twin-ear clevis. Its larger aperture accepts compatible rod or anchor hardware, while countersunk fixing holes secure the plate to a structural or grid member. The aligned clevis holes accept a removable pin, creating a compact mechanical transition between hanger hardware and the suspended ceiling frame.
Key Features

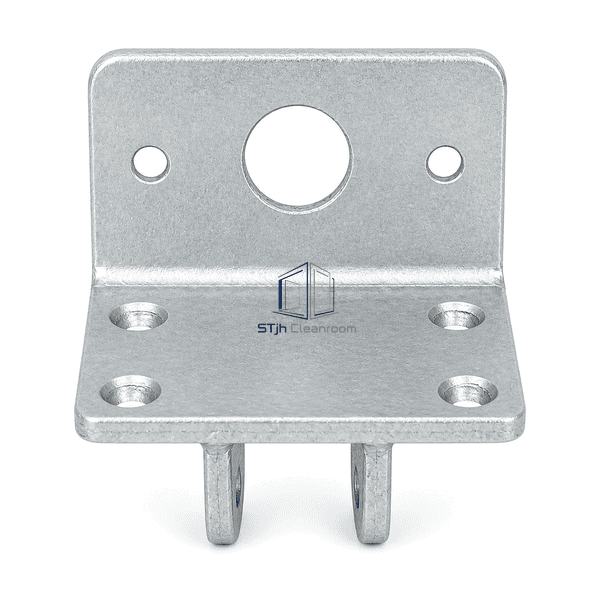

A dedicated large aperture accommodates the specified threaded-rod fitting.

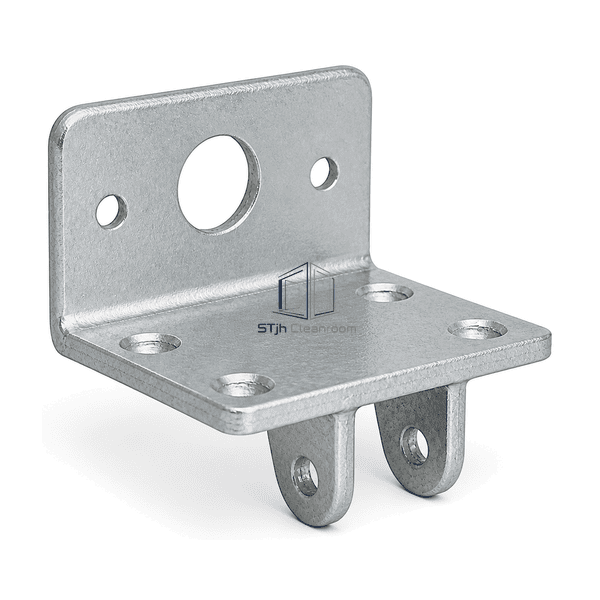

Twin clevis ears provide a balanced pinned connection.
Galvanized steel supports concealed interior corrosion protection.
Customer Product Concerns
A suspended grid needs a compact fitting that controls load direction while allowing a serviceable connection between anchor and frame.
Improvised flat plates twist under eccentric hanger loads.The welded angle geometry provides two perpendicular load-bearing planes.
Single-tab connections impose uneven force on the pin.Two aligned clevis ears support the mating fitting on both sides.
Inaccurate holes make field assembly difficult.Defined rod, fixing and pin-hole patterns are matched to the selected hardware.
Bare steel hardware can corrode above a humid ceiling.Galvanized or stainless construction is selected for the plenum environment.
Typical Applications
Cleanroom ceiling suspension pointsCeiling grid-to-rod transitionsUtility support channelsModular enclosure roofsWalkable ceiling framing
Technical Parameters
Typical construction ranges for a galvanized cleanroom ceiling suspension bracket are listed below.
| Core Material | Welded galvanized carbon-steel angle plate with twin clevis ears |
|---|---|
| Panel Thickness | 40-150 mm compatible cleanroom ceiling-panel thickness |
| Effective Width | 40-160 mm mounting plate width |
| Maximum Length | Up to 300 mm overall bracket length |
| Steel Facing Thickness | 3.00-8.00 mm bracket plate thickness |
| Core Density | Approximately 7850 kg/m³ for carbon steel |
| Thermal Conductivity | Approximately 45-60 W/(m·K) for carbon steel |
| Surface Finish | Silver zinc-plated or hot-dip galvanized steel |
| Joint Type | Bolted angle mounting with threaded-rod aperture and pinned twin-clevis connection |
| Customization | Available based on the intended application and operating environment. |
Available Options
Galvanized or 304 stainless steelRound or slotted rod apertureCustom fixing-hole patternClevis pin and retaining clip
