Temperature Mapping System

A portable multi-channel data acquisition system for synchronized wired temperature mapping in sterilizers, chambers, freezers and other controlled thermal equipment.

Synchronized multi-point mapping.
Modular wired sensor inputs.
Stand-alone touch operation.

Request a Quote Browse Products

Product Introduction

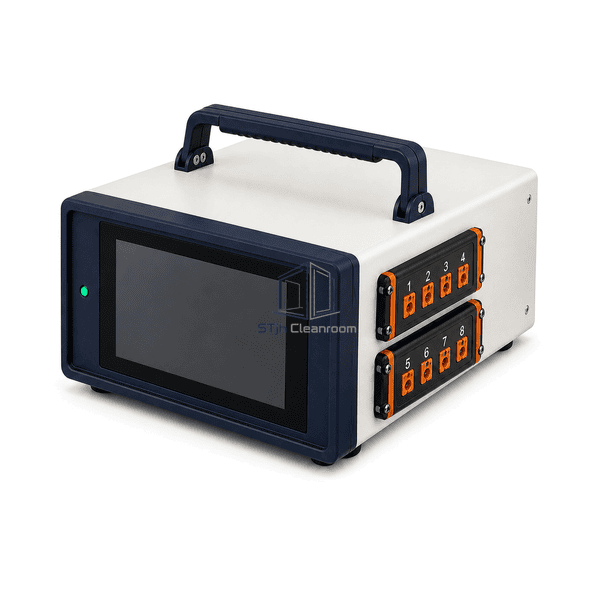

This compact mapping platform combines a rugged measurement mainframe, a local touch interface and removable thermocouple input modules in one transportable enclosure. Multiple sensors are sampled against a common clock so engineers can compare temperature distribution across a chamber or load throughout the same study. Internal storage preserves the run locally, while network and USB interfaces support study transfer and analysis without tying the instrument to a general-purpose computer during collection.

Key Features

Synchronized multi-channel acquisition reveals spatial hot and cold zones.

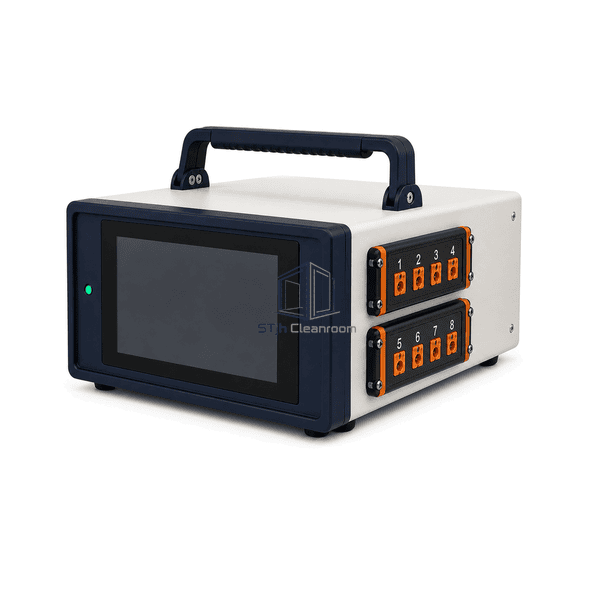

Removable input modules simplify sensor replacement and configuration changes.

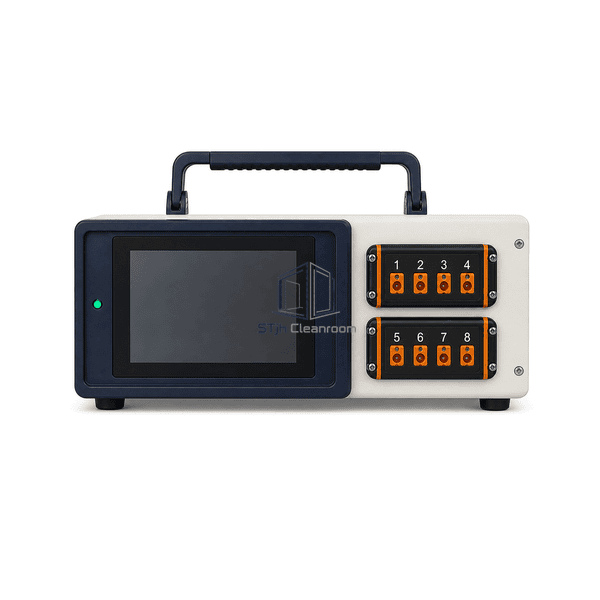

Local touch controls support stand-alone study setup and live review.

Cold-junction compensation stabilizes thermocouple measurements at the input bank.

Internal memory safeguards complete mapping records if the network is unavailable.

Battery-backed operation helps a study continue through brief supply interruptions.

Customer Product Concerns

Thermal equipment can meet a controller setpoint while still containing local hot or cold zones, so qualification requires simultaneous measurements distributed throughout the usable volume or process load.

Independent spot readings cannot show how the whole chamber behaves at the same moment.Common-clock channel scanning produces time-aligned measurements from every mapped location.

A sensor fault can invalidate a long qualification run.Live channel status and removable input modules help identify an open or unstable sensor before the study proceeds.

Network loss may interrupt data collection in remote equipment areas.Stand-alone controls and internal memory keep the acquisition task local to the instrument.

Different assets require different channel counts and sensor types.Modular inputs and selectable thermocouple configurations adapt the platform to each mapping plan.

Typical Applications

Steam sterilizer temperature mappingDry-heat oven and depyrogenation studiesStability chamber qualificationRefrigerator and freezer distribution studiesLyophilizer shelf and chamber mapping

Technical Parameters

Representative portable mapping-system construction is listed below; channel count, thermocouple type and communication accessories can be selected for the intended study.

Core Material	Powder-coated aluminum chassis, polycarbonate control bezel, measurement electronics and removable thermocouple input modules
Panel Thickness	Typically 1.5-2.0 mm for aluminum enclosure panels
Effective Width	Approximately 300-420 mm across the portable mainframe
Maximum Length	Approximately 350-480 mm including the folded transport-handle profile
Steel Facing Thickness	Typically 0.8-1.2 mm for internal shielding and module-retaining plates
Core Density	Approximately 2700 kg/m³ for the aluminum chassis
Thermal Conductivity	Approximately 167-205 W/(m·K) for the aluminum chassis
Surface Finish	Off-white powder-coated enclosure with dark-navy molded bezel and orange sensor-port identifiers

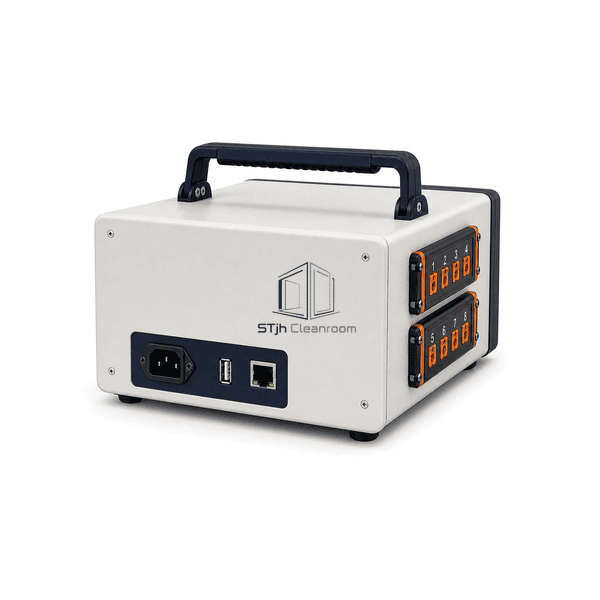

Joint Type	Keyed removable multi-channel input modules with thermocouple terminals plus USB and Ethernet data interfaces
Customization	Available based on the intended application and operating environment.

Available Options

Type T thermocouple modulesType J or K thermocouple modulesFour-channel and twelve-channel input arraysBattery backupUSB and Ethernet communicationProtective transport case
