Cleanroom Furniture and Stainless Steel Products
Stainless Steel Waste Bin

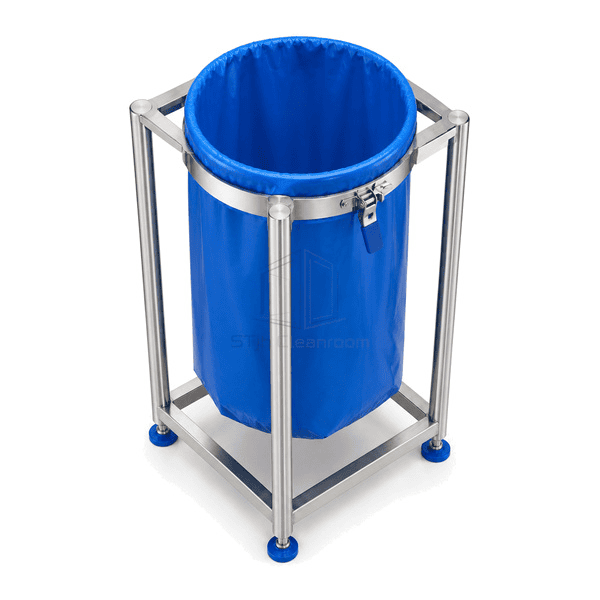

A fully welded Type 304 stainless open-frame waste sack holder with a circular bag-clamping ring, blue 75 L cleanroom liner and stable raised base frame.
- Open inspectable frame
- Positive bag clamping ring
- 75 L blue cleanroom liner
- Raised cleanable base
Product Introduction

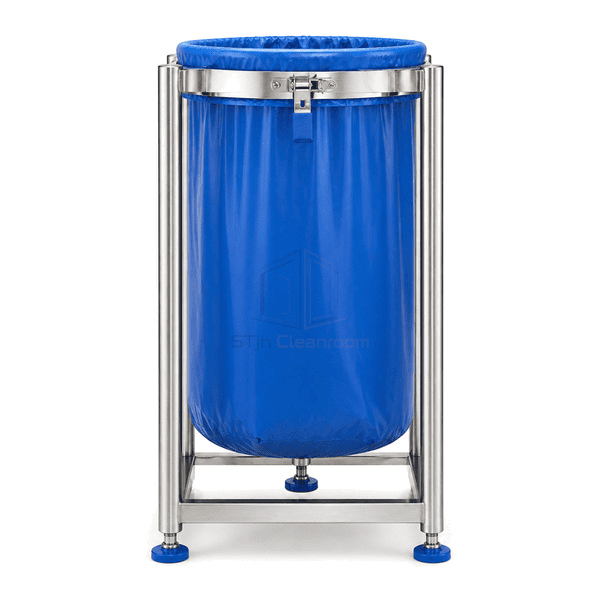

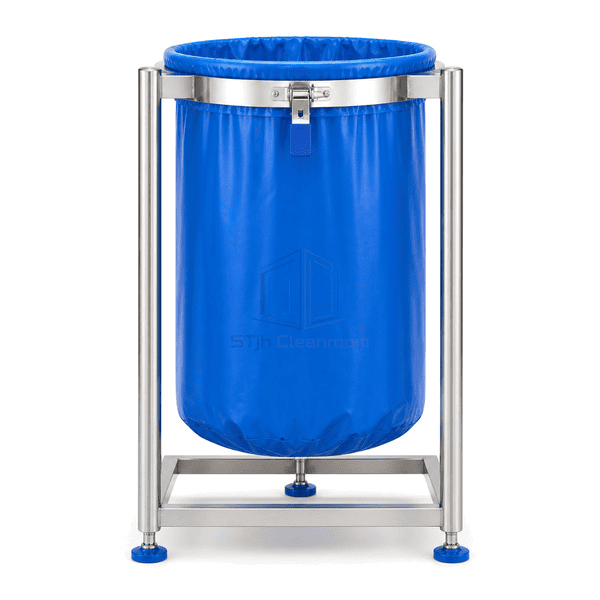

The stainless steel waste bin supports a disposable cleanroom sack without enclosing it inside a second rigid vessel. A fully welded Type 304 frame positions a 350 mm circular opening at convenient standing height. The blue 75 L liner folds over the upper ring and is captured by a hinged stainless clamping band, preventing the mouth from slipping downward as the load grows. Four sealed uprights join a broad raised base that remains visible from every side for routine floor and frame cleaning.
Key Features
A rigid stainless clamping band retains the bag mouth without elastic cords or degradable clips.
Four sealed uprights carry the loaded ring into a broad base rather than depending on the liner itself.
The blue liner provides immediate visual separation from the silver holder during bag replacement.
Customer Product Concerns
A simple cleanroom waste point must hold a flexible liner reliably while leaving the supporting frame and surrounding floor easy to see and wipe.

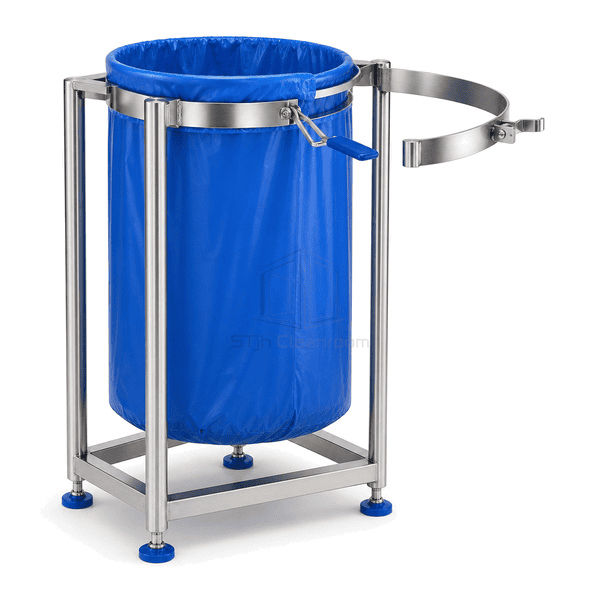

A loaded liner slips through a loose circular support ring.The hinged stainless clamp compresses the folded bag edge around the complete 350 mm opening.
Elastic bag ties shed or deteriorate after repeated disinfectant exposure.The all-metal retaining band closes mechanically without elastic components.
A closed shell hides drips between the bag and the waste holder.The open four-post frame keeps the liner exterior visible throughout use.
Narrow feet leave the tall bag stand unstable when waste is dropped from one side.A wide welded base distributes the ring load and maintains a low structural footprint.
Typical Applications
Cleanroom dry consumable disposalGowning-room wrapper collectionLaboratory wipe segregationMedical-device packaging scrap holdingPharmaceutical non-sharp waste points
Technical Parameters
Typical configurable specifications for an open-frame stainless cleanroom sack holder are listed below.
| Core Material | Type 304 stainless welded frame and clamping ring with removable cobalt-blue cleanroom liner |
|---|---|
| Panel Thickness | 1.5 mm stainless tubular frame wall |
| Effective Width | 350 mm clear bag-ring diameter |
| Maximum Length | 490 mm maximum base width |
| Steel Facing Thickness | 1.5 mm Type 304 frame tube wall; 1.2 mm clamping band |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless components |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless components |
| Surface Finish | Uniform dull-brushed stainless frame with contrasting cobalt-blue cleanroom liner |
| Joint Type | Fully welded sealed-post frame with hinged over-center bag-clamping ring |
| Customization | Available based on the intended application and operating environment. |
Available Options
Type 316L stainless frame40 L or 100 L liner sizeConductive blue ESD linerLift-off stainless cover
Planning a Stainless Steel Waste Bin specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
