Cleanroom Furniture and Stainless Steel Products
Stainless Steel Tray Rack
A stationary Type 304 stainless tray rack with ten removable cobalt-blue trays, paired slide rails, positive pull-out stops and four height-adjustable leveling feet.
- Ten removable blue trays
- Paired stainless slide rails
- Positive tray stops
- Four leveling feet
Product Introduction

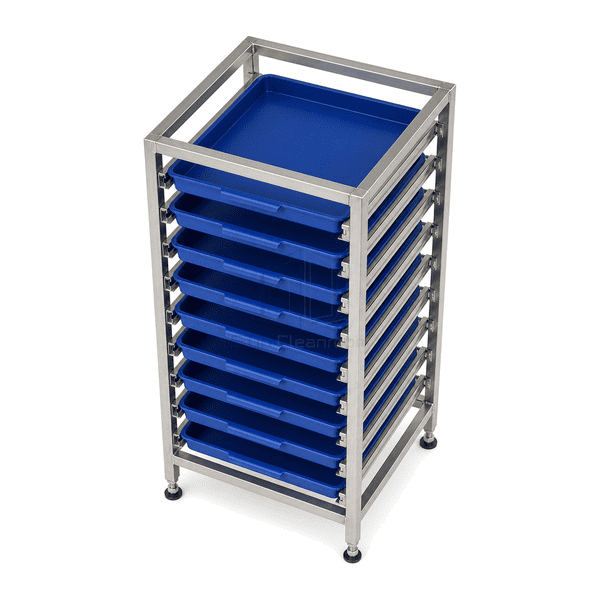

The stainless steel tray rack organizes ten small process trays at a fixed workstation without the caster and push-handle hardware of a transport cart. Its Type 304 square-tube frame supports ten pairs of welded slide rails at even 90 mm spacing. Each cobalt-blue polypropylene tray has a molded front pull and a rear stop that remains engaged until the tray is deliberately lifted. Four threaded leveling feet compensate for floor variation while a top cross-frame prevents the tall narrow rack from racking sideways.
Key Features
Rear stops retain each tray during routine partial withdrawal.
A diagonal-free welded frame leaves both side faces open for wiping around the runners.
Threaded leveling feet stabilize the rack without introducing mobile-cart hardware.
Customer Product Concerns
Stationary tray storage must keep every level identifiable, prevent accidental full withdrawal and stand rigidly on an imperfect cleanroom floor.

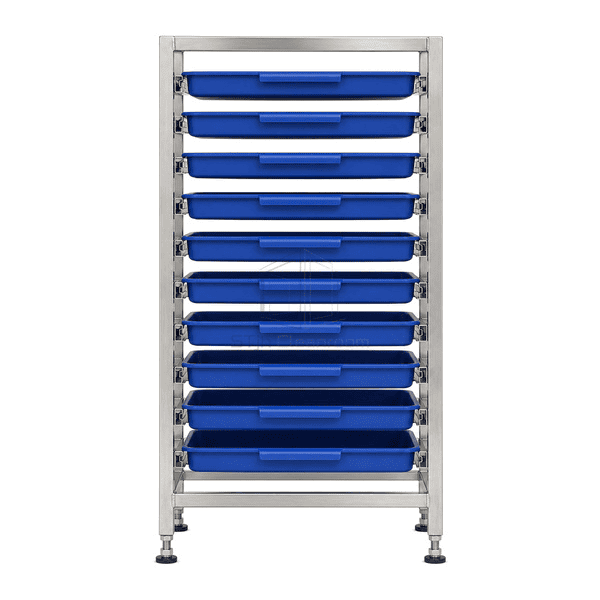

Stacked trays hide lower batches and require repeated handling.Ten independently accessible runner levels expose every tray pull at the front.

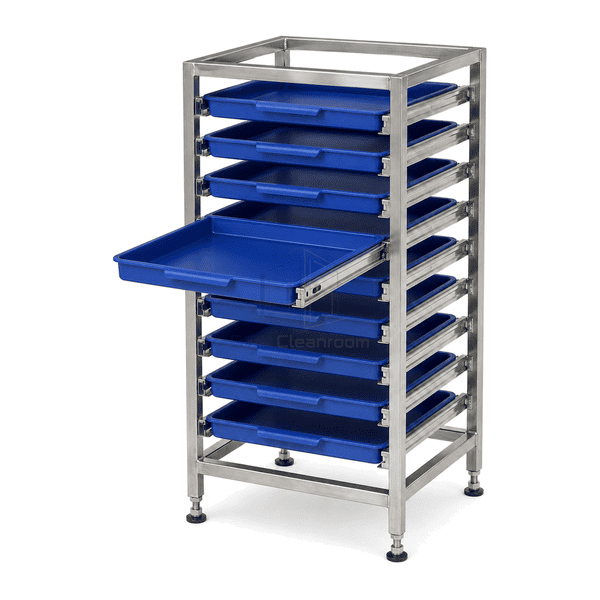

A tray leaves its rails when pulled quickly by a gloved operator.A rear molded stop remains behind the stainless runner until the tray is lifted deliberately.
A narrow tall rack rocks on uneven resin flooring.Four threaded feet provide independent height correction and locknuts.

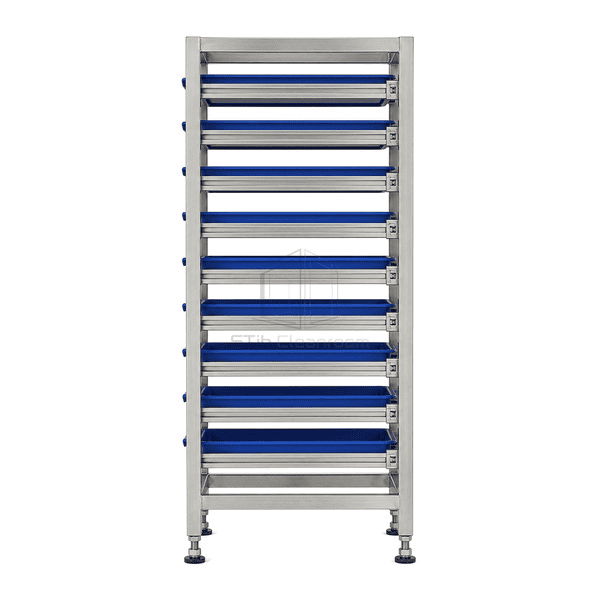

Closed side panels hide residue around the runner ends.The open square-tube frame leaves the paired slide rails visible from both sides.
Typical Applications
Cleanroom component kittingLaboratory sample tray storageMedical-device work-in-process organizationElectronics parts stagingPharmaceutical utensil segregation
Technical Parameters
Typical configurable specifications for a stationary ten-tray stainless cleanroom rack are listed below.
| Core Material | Type 304 stainless square-tube frame and slide rails with ten cobalt-blue polypropylene trays |
|---|---|
| Panel Thickness | 1.5 mm stainless square-tube wall |
| Effective Width | 400 mm clear tray-runner width |
| Maximum Length | 550 mm maximum rack depth |
| Steel Facing Thickness | 1.5 mm Type 304 frame tube wall; 1.2 mm formed runner rails |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless components |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless components |
| Surface Finish | Satin-brushed stainless frame with cobalt-blue smooth polypropylene trays |
| Joint Type | TIG-welded open frame with paired runner rails, molded tray stops and threaded leveling-foot sockets |
| Customization | Available based on the intended application and operating environment. |
Available Options
Type 316L stainless framePerforated stainless traysEight or twelve levelsWall anchor brackets
Planning a Stainless Steel Tray Rack specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
