Cleanroom Cleaning, Disinfection and Sterilization
Shoe Sole Tacky Roller
Walk-over shoe-sole tacky roller station that presents a continuously refreshed adhesive film for capturing footwear particles at controlled-area entrances.
- Walk-over particle capture at entry points
- Enclosed take-up protects used adhesive
- Replaceable continuous tacky-film cartridge
Product Introduction

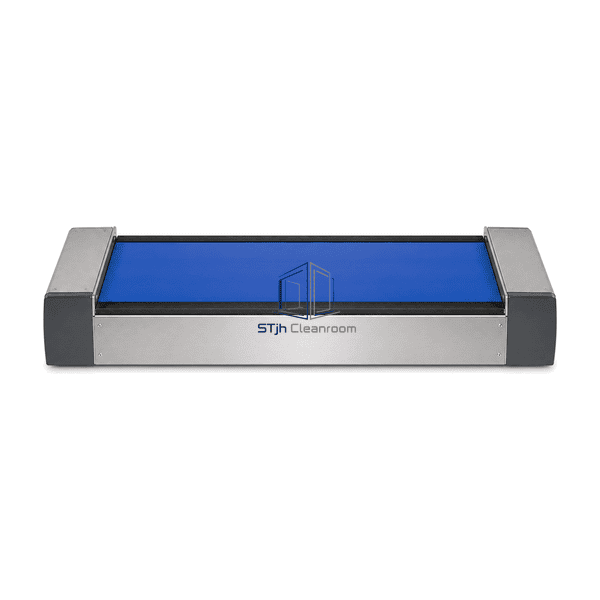

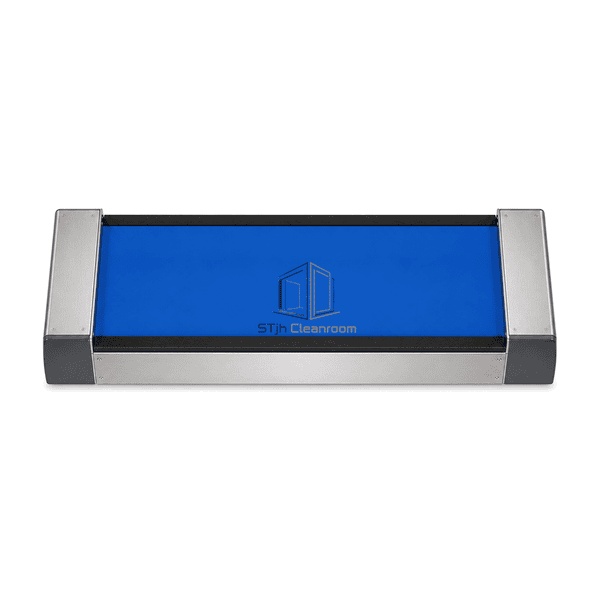

The Shoe Sole Tacky Roller is a low-profile stainless station with a supported adhesive film across the walking surface. Each pass presses shoe soles against the tacky layer to collect dry dust and fibers; an indexed roller mechanism advances used film into the enclosed housing and exposes a fresh section. A stable non-slip frame and shallow step height support routine personnel flow without loose peel-off sheets around the entrance.
Key Features
Indexed film advance maintains a usable tack surface.
Used film winds into a closed compartment.

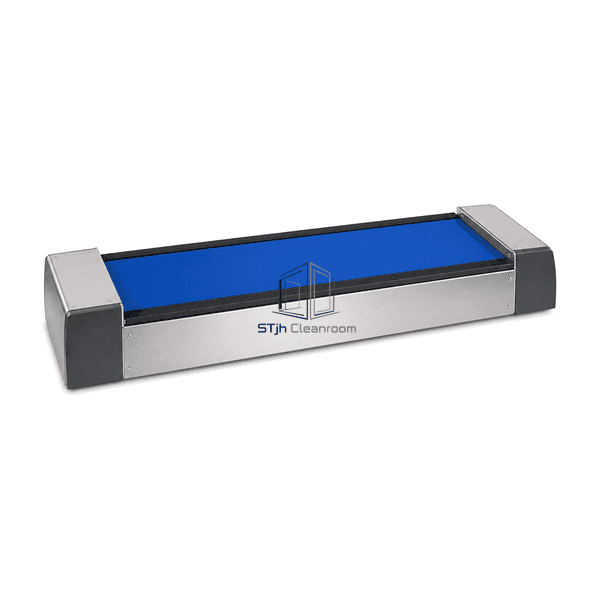

Low step height supports natural walking movement.
Stainless outer housing is easy to wipe down.
Cartridge design simplifies consumable replacement.
Customer Product Concerns
The station addresses inconsistent sticky-mat replacement, exposed loaded sheets, variable footwear contact and entrance congestion.
Overused adhesive surfacesIndexed advance exposes fresh tack at defined intervals.
Contaminated sheet disposalLoaded film winds into an enclosed take-up roll.
Incomplete sole contactThe supported broad surface allows a normal step across the adhesive zone.
Difficult sanitationBrushed stainless exterior panels tolerate routine wipe-down.
Typical Applications
Cleanroom gowning-room entrancesPersonnel airlocksElectronics assembly access pointsPharmaceutical support corridorsControlled packaging areas
Technical Parameters
The following values describe compact automatic adhesive-film sole cleaners for gowning rooms, airlocks and controlled production entries.
| Core Material | Low-density polyethylene adhesive film on polymer roller cores |
|---|---|
| Panel Thickness | 2.0 mm stainless top-panel thickness |
| Effective Width | 500-700 mm walking width |
| Maximum Length | 1200 mm overall station length |
| Steel Facing Thickness | 1.5-2.0 mm Type 304 stainless enclosure thickness |
| Core Density | 920 kg/m³ nominal polyethylene film density |
| Thermal Conductivity | 0.33 W/(m·K) nominal for polyethylene film |
| Surface Finish | Brushed stainless housing with blue pressure-sensitive film |

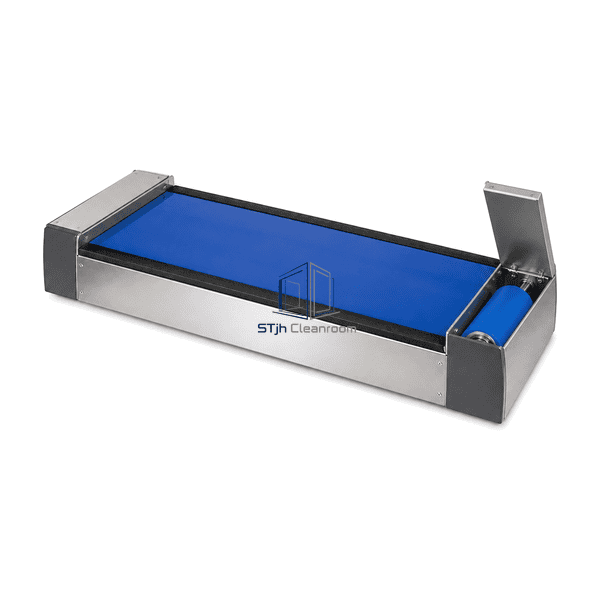

| Joint Type | Indexed supply-and-take-up roller cartridge within hinged enclosure |
| Customization | Available based on the intended application and operating environment. |
Available Options
Manual pedal or automatic indexed advance500, 600 or 700 mm walking widthBlue, white or transparent tacky filmFreestanding or recessed installationEntry counter and film-use indicator
Planning a Shoe Sole Tacky Roller specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
